Print Labels to the IP Series From Brady Workstation - Full Setup Guide
This guide is designed to assist first-time or existing IP Series users with with installation, license recovery, activation and operation of their IP Series and Brady Workstation software.

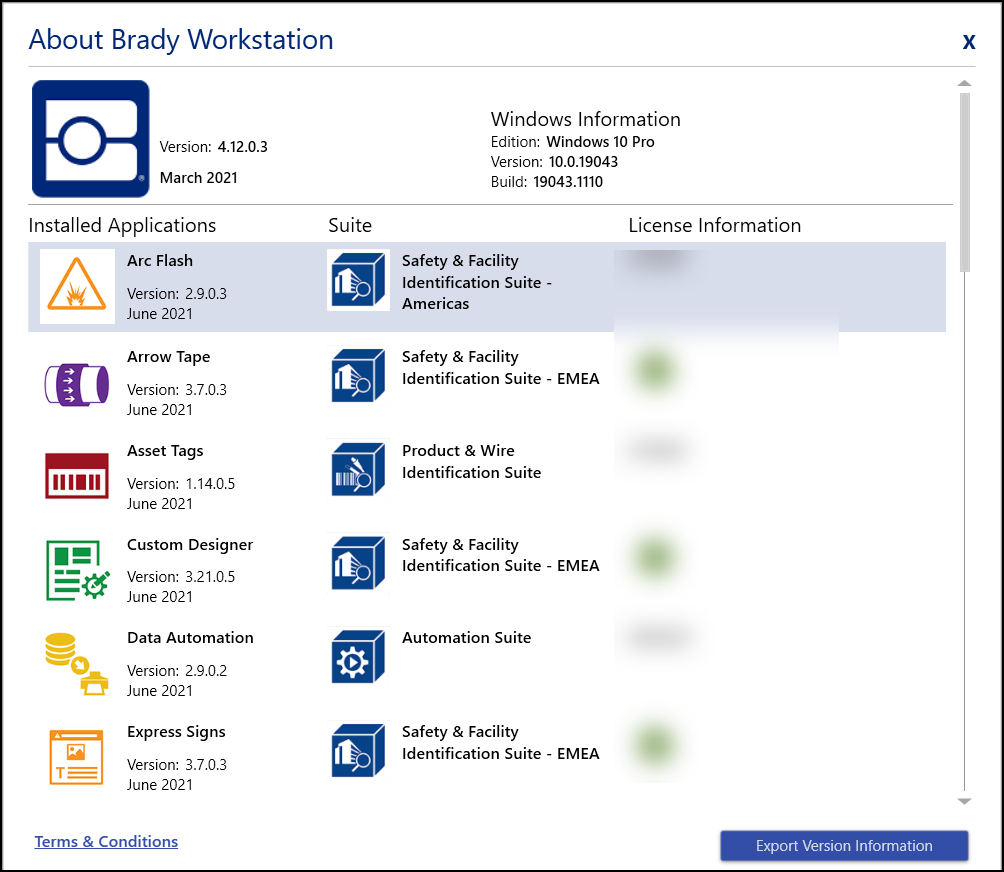

This will determine which suite to download. The majority of IP series users will use the Product Wire and Identification suite, however the IP series is a versatile printer so it's best to confirm license info prior to installation. Installing the wrong suite for your license will result in the "invalid license" error.
If you already have your license and password or you're using the Basic Design Suite, you can skip this step.
These links will provide the installation files for each respective suite of apps. Even if your software came on a disk, we recommend installing using the links below which provide the latest bug fixes and features. These installations will launch as an unactivated 30 trial until you enter your license information. Make sure to download the correct suite that corresponds with the license information you located in the first step. If you're not sure which suite you should buy, see: Brady Workstation - SFID vs. PWID vs. Basic Design Suite - What's the Difference?
If you've installed any software in Windows 10 before, this setup will be straightforward. If you'd like step-by-step video instructions, see the next section.

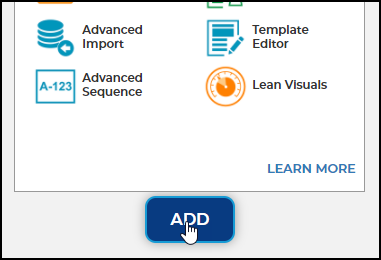

Once Workstation is installed, simply launch any of the paid apps in your suite (for example, Custom Designer) and enter your license information. Activating a single app activates all paid apps in the suite. For detailed instructions see: How to Activate Your Brady Workstation Suite License
The IP Series printer requires a driver for use with Brady Workstation. The IP Series can be connected to Brady Workstation via USB, ethernet or WiFi connectivity options (WiFi requires purchasing an accessory USB dongle). See driver download and installation instructions here: How to Install the IP300 or IP600 Windows Print Driver

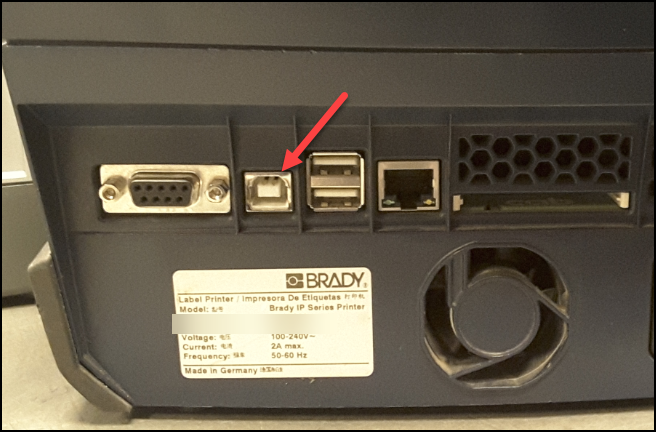

USB - When prompted during the driver install, connect the square end of the USB cable into the square USB type-B port on the printer. Then connect the rectangular USB type-A end of the USB cable directly to your PC. Don't connect the printer to a docking station or USB splitter, connect it to a part directly on the PC.
Network - Ethernet & Wifi
If you are not an authorized network administrator for your company, we do not recommend attempting to setup a device on your network without contacting your IT. Brady Technical Support cannot add devices to your corporate network. Reference this article to configure the IP Series for a network connection in Brady Workstation: How to Network Your IP300 and IP600 Printer
The IP series is a thermal transfer (THT) printer, this means it requires label material and a corresponding thermal ribbon. The IP Series takes THT materials formed around 3" cardboard cores. The ribbon material comes on a proprietary plastic core. IP Series ribbon and label cores contain RFID chips that communicate information about the materials to the printer and software.
In this step we'll create a very basic label and print it to the IP series. This simple test will confirm the printer is loaded correctly, and has a good connection to the PC. More advanced label creation topics are covered elsewhere in this knowledge base, or see the resources sectionat the end of this article.
1. Launch Workstation if it is not already open. This is what the icon will look like on your desktop.
2. Launch the Custom Designer app.
3. Select the IP series from the dropdown list. IP series printers listed under "Printers Found" indicate Brady Workstation has found an installed IP series Windows driver on your system. It is possible to install multiple drivers for this printer in Windows, so make sure the correct printer is selected.
4. This printer model is a Smart Printer supporting bidirectional communication, however you can also manually search for and select the label part.
Using Bidirectional Communication - Click the Installed option. If bidirectional communication isn't working see the troubleshooting section in this article, otherwise manually select the label part.
Manual Part Selection - Search for and select the appropriate part number that corresponds with the label materials loaded in your printer. Selecting the wrong part number will cause errors and calibration issues.
Note: The label part displayed on your physical label may not exactly match the part listed in software search results. The software only needs to know the dimensions (die size) of the label, which are indicated by the middle portion of the part name. For this reason, the end of the part name is often omitted (for THT-155-492-3 the die size would be 155, so any part number with THT-155 can be used). For more examples see: Naming Conventions for Brady Label Media
5. Make sure Label is selected from the dropdown, click Create.
6. Enter text into the label canvas.
7. Click Print.
8. Preview the label(s), then click Print. Note that we can ignore the unknown part error because we selected the part manually in step 4.
This knowledge base contains thousands of articles to address error messages, how-to processes and workarounds for your IP series and Brady Workstation. Use the links below to get started.
Everything you need to operate your IP series: IP300/600 - General Information Brady Workstation Tutorials and How-to Articles:
Q: What if I need more people to create labels, do I need to purchase more licenses? A: Licenses can be active on one PC at a time, however Brady Workstation's functionality is versatile and some options exist for free/trial use. See this article to determine if additional licensing is the best option for your needs: Brady Workstation - Pricing and Licensing Multiple PCs
Q: What if someone leaves and I need to recover or re-register my license? A: The software self-service portal provides license holders the option to manage their own license information without contact Brady Technical Support. See this article for all functionality available in the self-service portal: Managing Your Licenses in the Brady Software Self-Service Portal

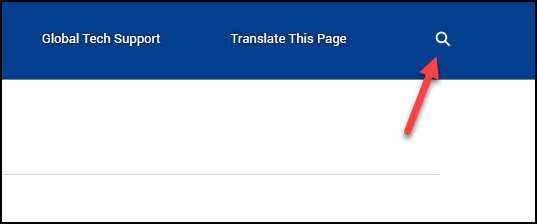

This covers only a few of the most common problems new users face, use the search functionality of this knowledge base if you're experience a specific error message or symptom.
I clicked print and nothing happened
Check the printer first - does it have any error messages? Can it feed labels? Then work your way back to the PC checking each component - USB/network connection, selecting the right printer in the software. See this article for detailed troubleshooting: Unable to Print from Software - Troubleshooting Driver Communication Issues
Workstation says "Warning, unknown part"
This error occurs when the software cannot establish bidirectional communication with the printer. With the i7100 this will be more common with network connections, since networks may block bidirectional communication protocols. Bidirectional communication is not required to print labels, but it can be an indicator of communication issues: Troubleshooting Bidirectional Communication Issues
When I try to launch the driver or software nothing happens or I get a prompt for login credentials
Nothing comes up when I click the "Installed" option during label part selection
This means bidirectional communication is not working. While convenient, bidi is not necessary to print labels. You can simply select the label part manually, or follow this troubleshooting guide to restore bidi: Troubleshooting Bidirectional Communication Issues
