See this article if you experience connectivity issues after configuring your IP Series printer for network printing: Unable to Print from Software - Troubleshooting Driver Communication Issues.

Configure the IP Address From the IP Series LCD Display

  1. Connect the printer to a functional network port using an ethernet cable.
  2. On the printer press the Menu button.
  3. Press the Right Arrow twice to reach the Setup menu, and press the Down Arrow to select it.
  4. Press the Right Arrow 3 times to reach the Interfaces menu, and press the Down Arrow to select it.
  5. Press the Right Arrow 3 times to reach Ethernet menu, then press the Down Arrow to select it.
  6. If you will be using DHCP to automatically assign the IP address, press the Enter key (middle button in the Directional Pad), then press the Right Arrow to select DHCP.  Press the "Enter" key to confirm your selection. You will need to power cycle the printer in order to have it pull a DHCP address from the DHCP server. After power cycling the printer, follow the steps 1-5 above, then press the right arrow twice to Gateway.
Note: We recommend not using DHCP and instead configuring the printer with a static IP address. In the next section you will be configuring the driver with this address. DHCP addresses are prone to change, and the driver must then be separately updated to match the new DHCP address. Reach out to your network administrator if you're not sure what a DHCP address is or if you need help selecting an appropriate static IP address for your network.
  1. If you would like to set a Static IP Address, from the DHCP menu, press the Enter key, and press the Right Arrow to select Off.
  2. Press the Enter key again to confirm your selection. Press the Right Arrow key once to IP Address and press Enter to assign the IP address. Use the Up and Down arrows to enter the Static IP address for each digit individually.  Press Enter to save the IP address.
  3. To return to Main Menu, press & hold the Return key for 2 seconds.

Printer Driver Installation and Network Configuration

The IP address configured on the printer must match the IP address configured in the driver. If you already have the driver installed, refer to How to Add a Network Port to a Windows Driver.

  1. Follow these instructions to download and begin installing the IP Series driver: How to Install the IP300 or IP600 Windows Print Driver.

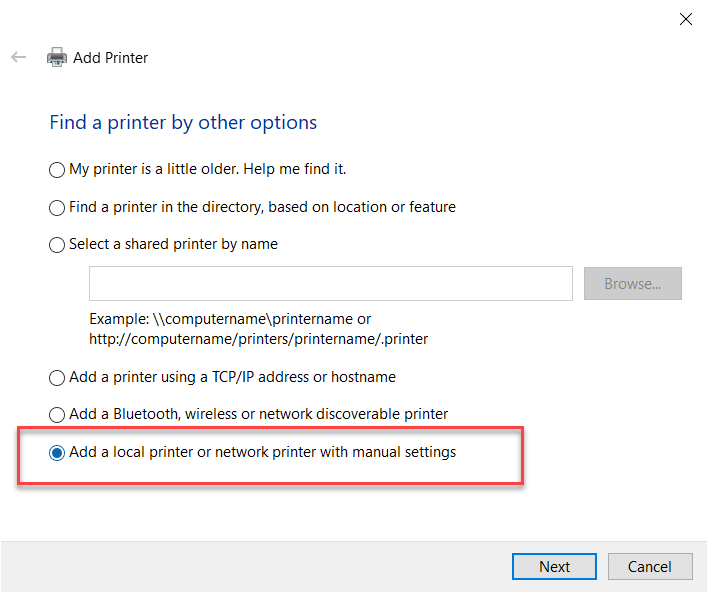

  1. On the Find a printer by other options screen, select the radio button for Add a local printer or network printer with manual settings.

  1. Choose the radio button for Create a new port and in the Type of port choose Standard TCP/IP Port.
Note: This option may only appear when using the Windows "Add new printer" Wizard. If you do not see it, skip to step 4.

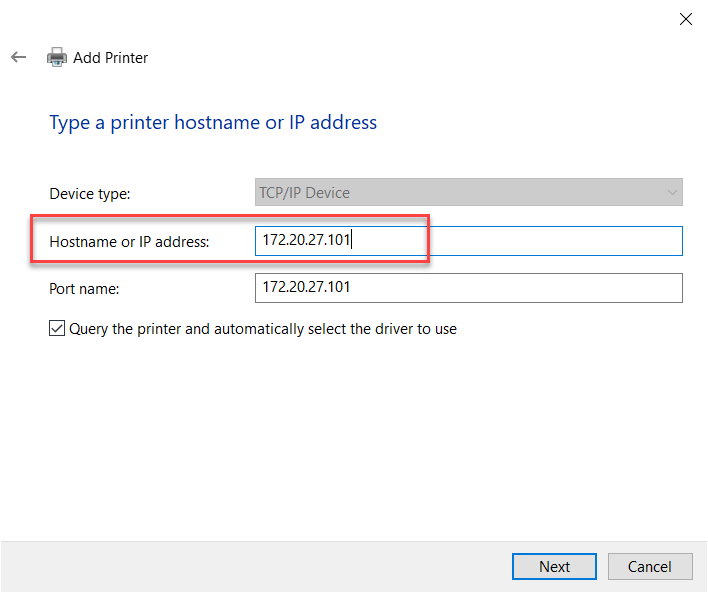

  1. Enter the IP address that was configured on your printer in step 9. Press Next.

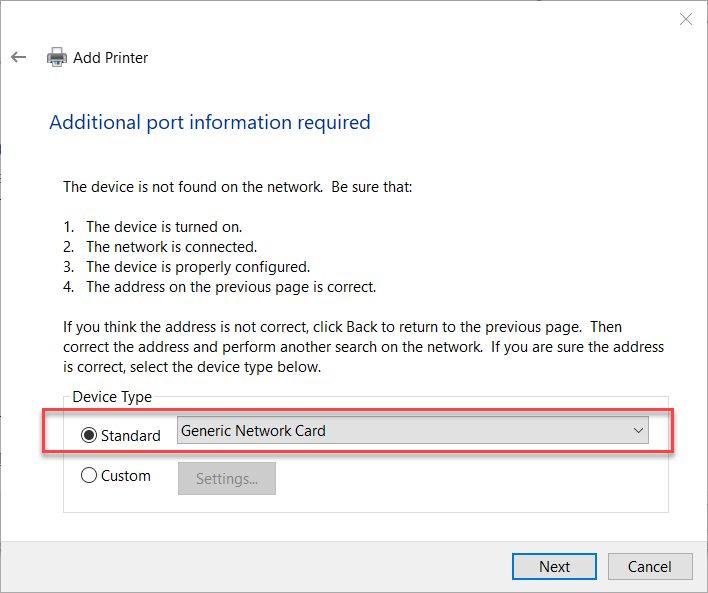

  1. On the Additional port information required screen, choose Standard and Generic Network Card.

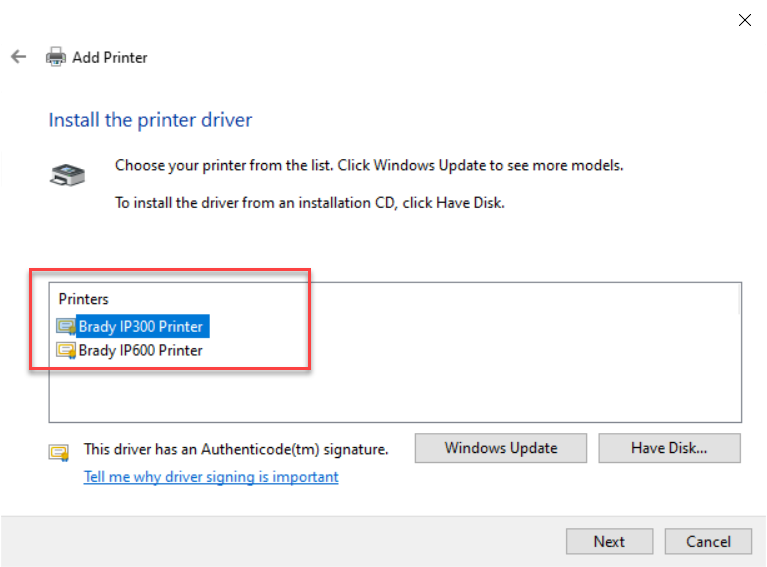

  1. On the Install the printer driver screen, select the IP driver option that corresponds with your printer model (300 and 600 indicate print head DPI, this is listed in multiple places on the physical printer). Select Next.

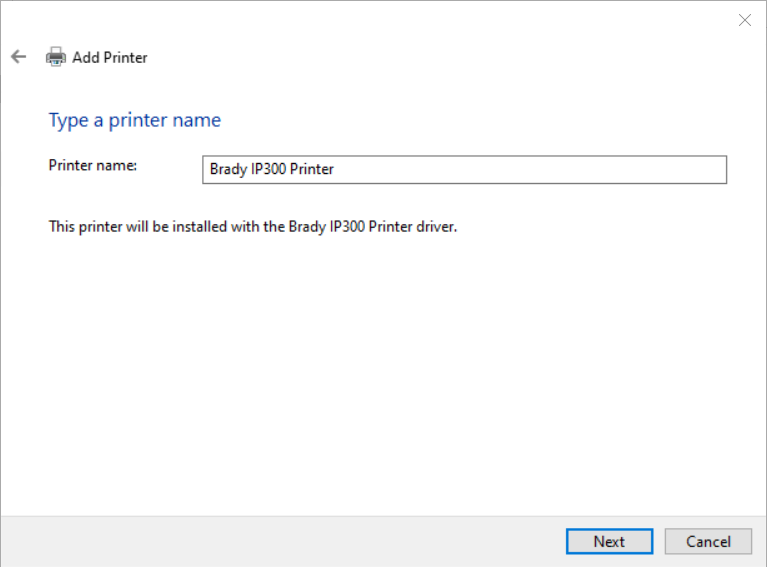

  1. Name the printer or leave as-is. Select Next.

  1. Choose sharing settings as needed. Select Next.
  2. Select finish.
