The plotter cutter is a small stylus cutter used to cut out shapes, borders and letters. The S3700 and BBP37 are the only Brady printer models to feature a plotter cutter. The S3700 replaces functionality previously offered by the BBP37 and GlobalMark Color & Cut.
Cutter adjustment menus are available after pressing "Print" on the standalone touch screen.

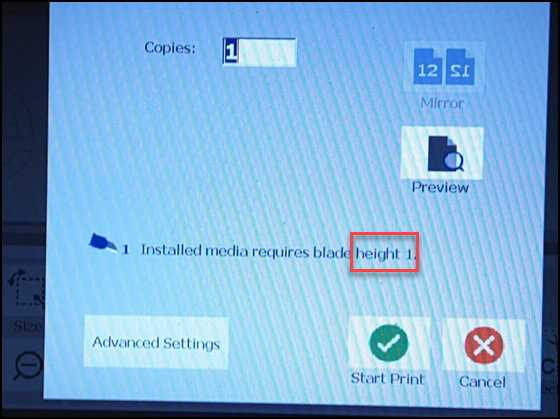

Cut Depth - cut depth can be adjusted mechanically inside the printer and from the printer touch screen. Always use the recommended cut depth (1 or 2) as specified on the display after pressing "Print": BBP37 / S3700 - How to Adjust Cut Depth.
Transfer tape allows maintaining position and alignment of cut text and objects when transferring from the label liner to a surface. Purchase Transfer Tape on Bradyid.
Plotter cutter limitations
The smallest font the BBP37 will cut is 50 pts, the "cut out" option will be disabled for font choices below 50 pts.
The longest XY cut job length is 15" (groups of object) and 10" for single object.
