BBP37 / S3700 - How to Increase the Cut Out Margin in Custom Designer (Thickness of the Cut Out Region)

Printable View
« Go Back

Content


Article Number000011745
TitleBBP37 / S3700 - How to Increase the Cut Out Margin in Custom Designer (Thickness of the Cut Out Region)
Body
Am I able to increase the size of the area to cut out?

The size and thickness of the cut out object and area cannot be directly increased. In order to accomplish this, add another cut out shape to create the desired thickness.

Note: Cutting out shapes and text is only possible with the BBP37 and S3700 printer using compatible 4" label material. For more information see: What Materials Work with the BBP37 and S3700 Plotter Cutter?.

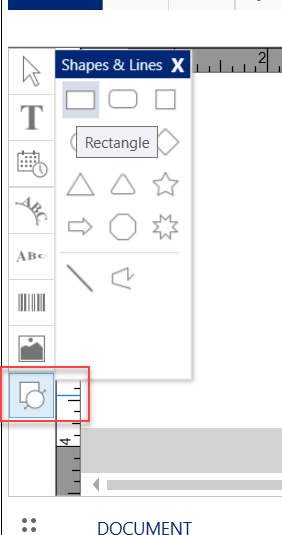

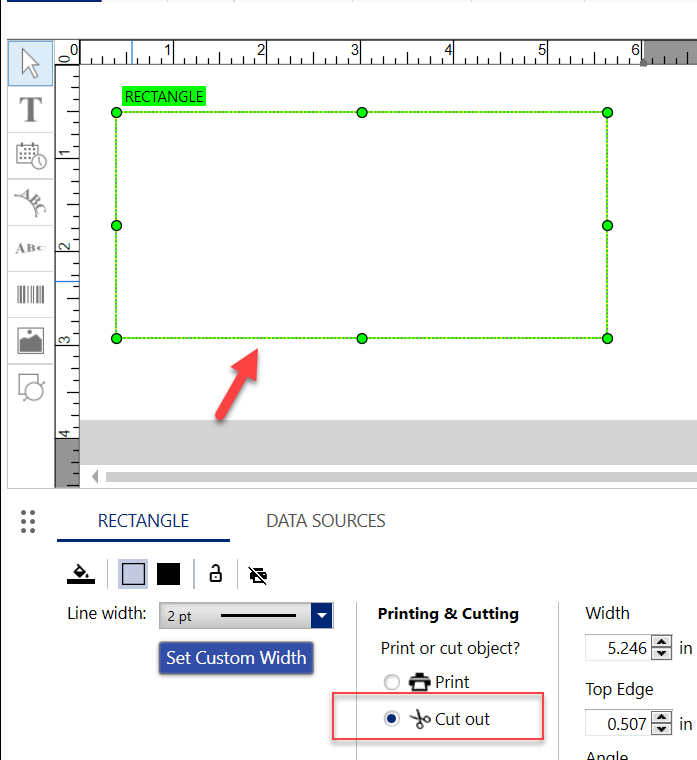

  1. Create a cut out shape.

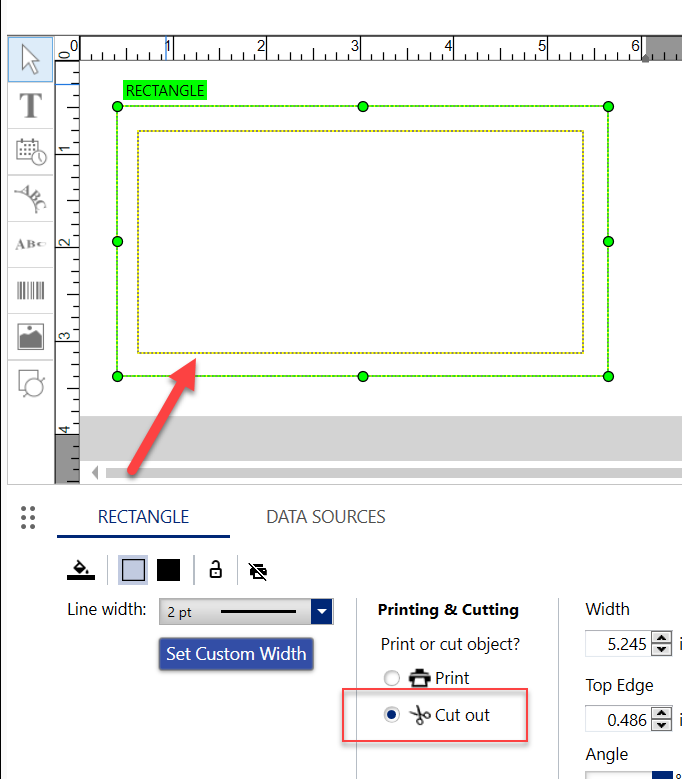

  1. Add a second smaller cut out shape within the first shape.

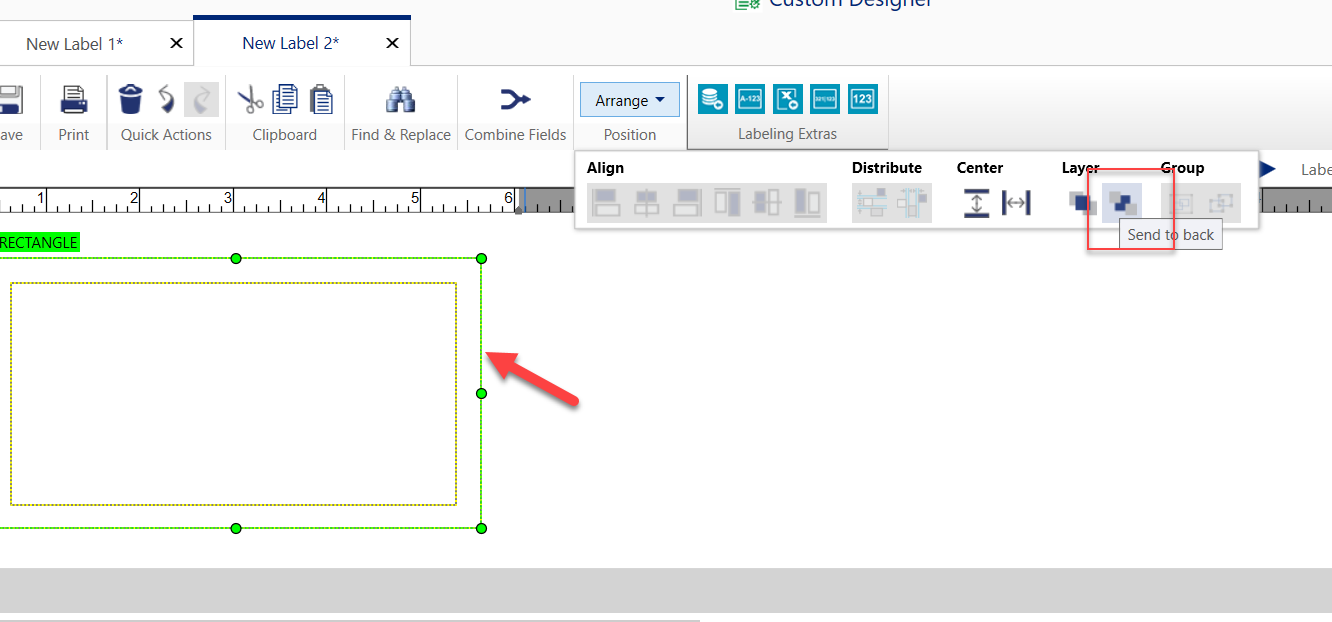

  1. Select the larger shape, select Arrange > Layer > Send to back.
