Body | Adjusting XY Cutter OffsetsThis information can also be found in the User Manual: BBP35 / BBP37 - User Manual and Quick Start Guide and S3700 - User Manual & Quick Start Guide.
Overtime, the plotter cutter accuracy may drift. Use the Adjust XY Cut Accuracy feature to bring the offset back to factory settings.
To adjust the cut accuracy:

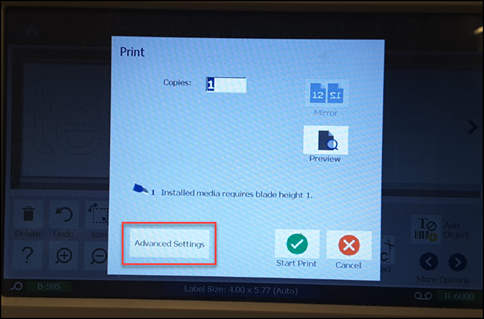

- Press print on the touch screen to bring up the menu that contains the Advanced Settings button.

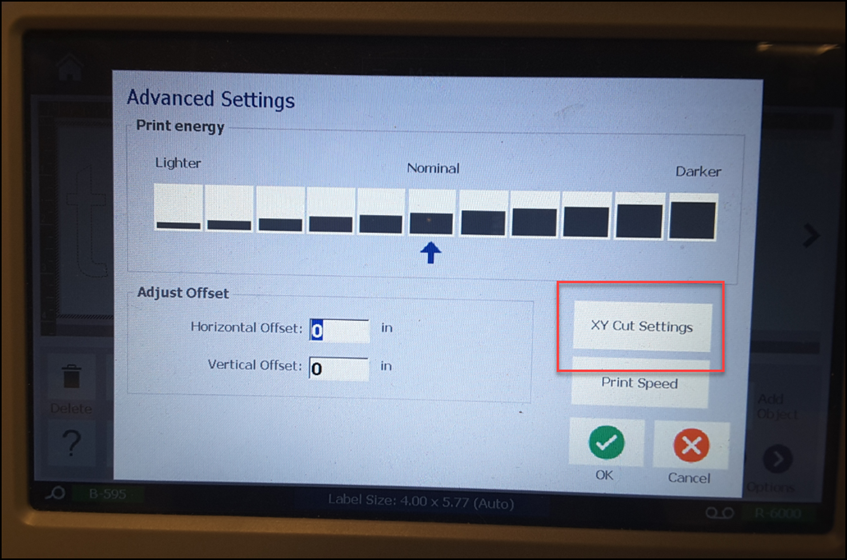

- Press Advanced Settings.
- Select XY Cut Settings.

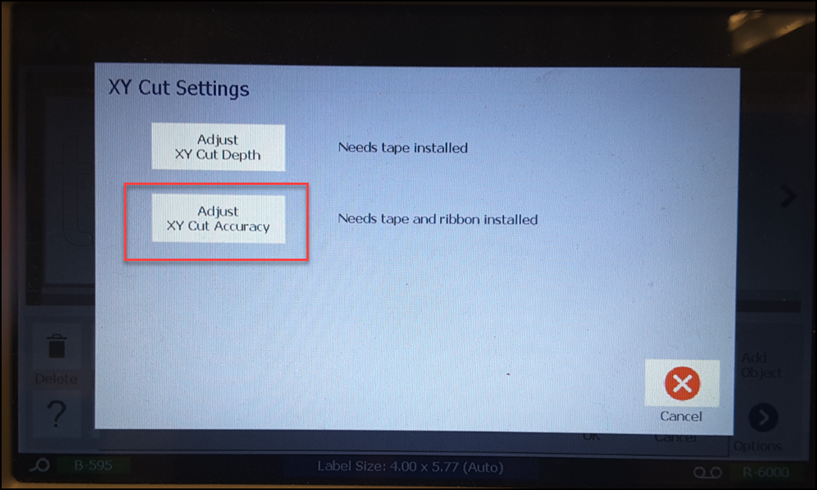

- Select Adjust XY Cut Accuracy.

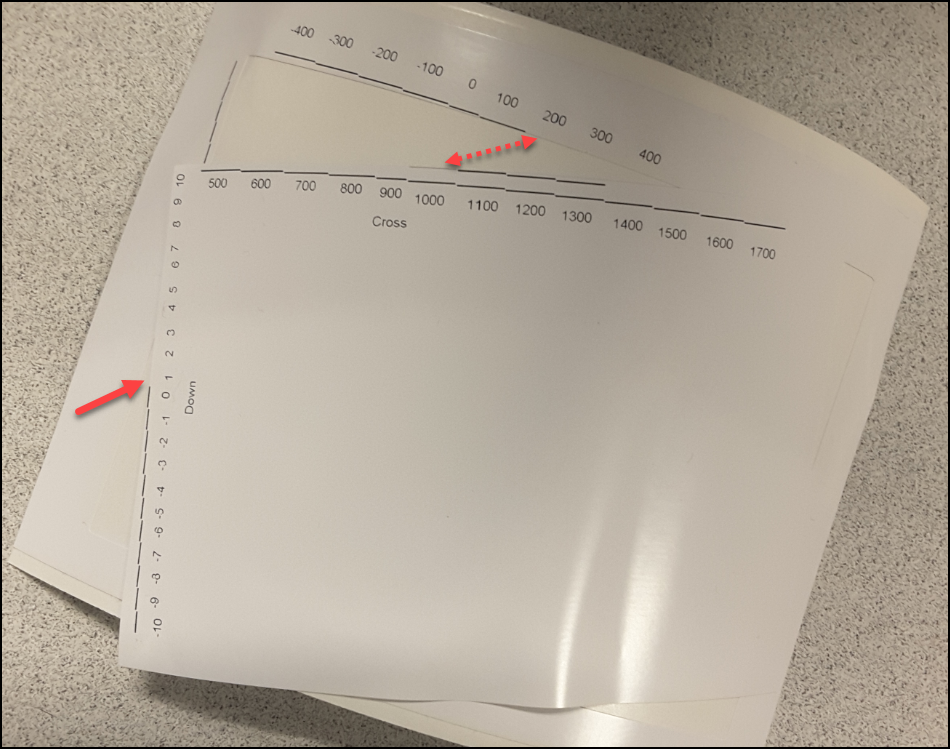

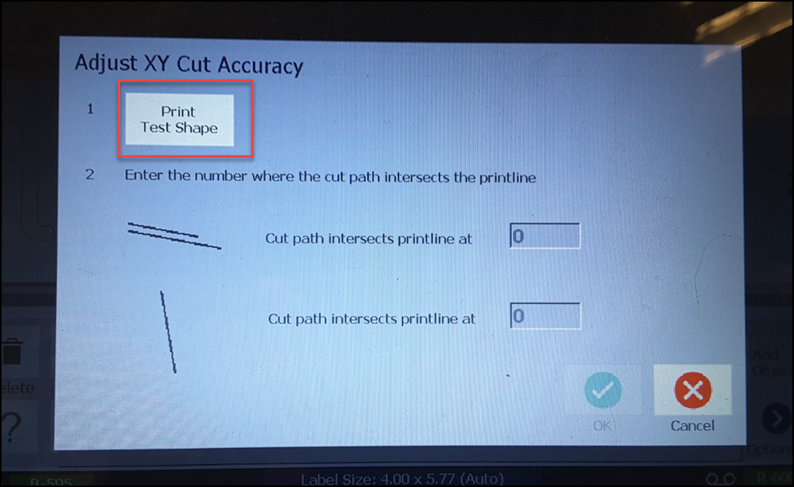

- On the Adjust XY Cut Accuracy screen, touch Print Test Shape. The printer cuts a rectangle passing through a vertical and horizontal scale. Make a note of the numbers representing the nearest pass to the cut path.
- Enter the number where the cut path intersects the print line.
- Press OK to save the adjustment. Depending on how the shape is cut, you can change the numbers in the horizontal and/or vertical cutting guides data fields for more accuracy.
- When ready, touch OK. You are returned to the XY Cut Settings screen.
- Touch Cancel to exit the XY Cut Settings screen.
- On the Advanced Settings screen, touch OK.
- On the Print screen, touch Start Print.
