Replacing the BBP37 and S3700 Plotter Cutter

Note: This cutter is only available with the BBP37 and S3700. The BBP35 only has a shear cutter which cuts the tape to length while the plotter cutter is used to cut out shapes, objects, and letters. Purchase a plotter cutter on Bradyid.





Remove the XY Cutter Module


  1. Turn off the printer and remove the media.

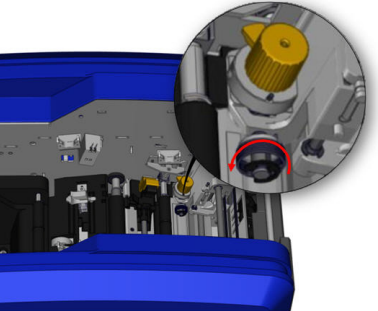

  1. Unscrew the thumbscrew of the XY cutter module.

Unscrew the cutter module.png



  1. Lift the cutter module from the carriage.



  1. Clean off any dust from the area where the blade sticks out with a cotton swab moistened with isopropyl alcohol.



Re-install the XY Cutter Module



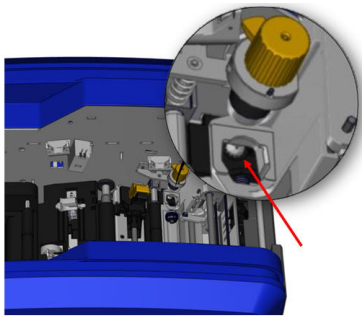

  1. Place the flat surface of the collar against the carriage, then insert the cutter module into the carriage.

Insert Cutter module.png

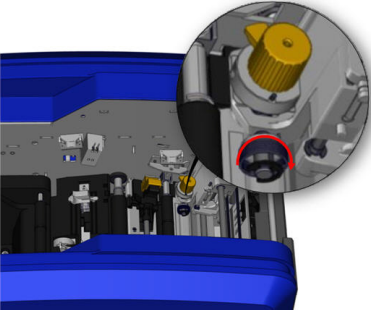

  1. Tighten the thumbscrew until it clicks.

Tighten cutter module screws.png



If you need further assistance, please contact Brady Technical Support Global Brady Technical Support Contact Information.
