BBP37 / S3700 - XY Cutter - What is Weeding?

« Go Back

Content


Article Number000012264
TitleBBP37 / S3700 - XY Cutter - What is Weeding?
Body
This information can be found on page 65 of the BBP37 user manual and page 51 of the S3700 - User Manual & Quick Start Guide.

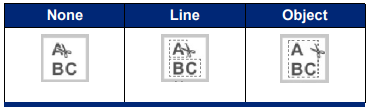

Weeding affects printing and cutting multiple lines of text. When there are multiple lines of text, weeding by line cuts out the letters and also cuts out a box for each line. Weeding by line enables you to remove the background tape one line at a time. Weeding by object cuts out the letters and cuts out a box surrounding all the letters. If Weeding is turned off, no box is cut.



To access Weeding:

  1. Create your label.

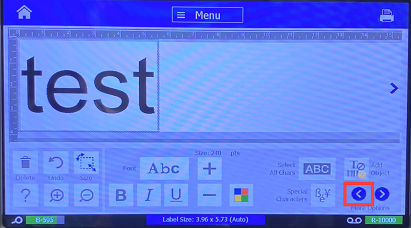

  1. In the Control Panel in More Options, touch the Left arrow to move to the Print/Cut screen.
 More options left

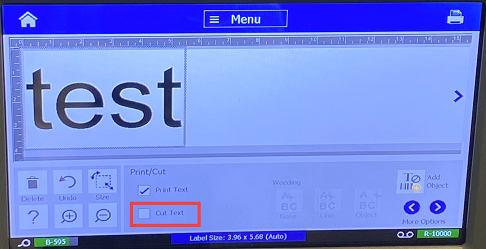

  1. Touch Cut Text checkbox.
 Cut Text

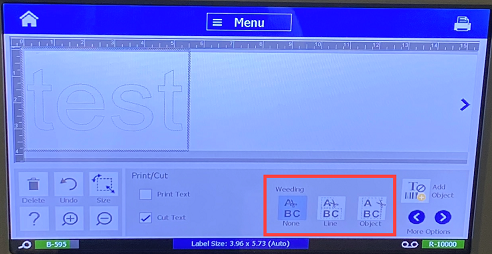

  1. Under Weeding, touch the desired weeding option (None, Line, Object).
Weeding options
