If you are creating a Template in Custom Designer, you will not be able to import data until the file is opened in Print Partner: Print Partner - Import Microsoft Excel data.
Create a Label File in Custom Designer or Custom Designer Lite.

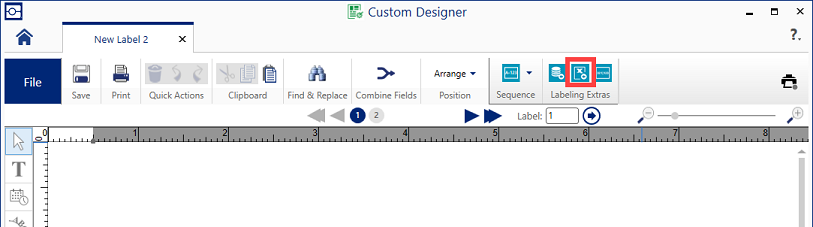

Select the Excel Import icon.

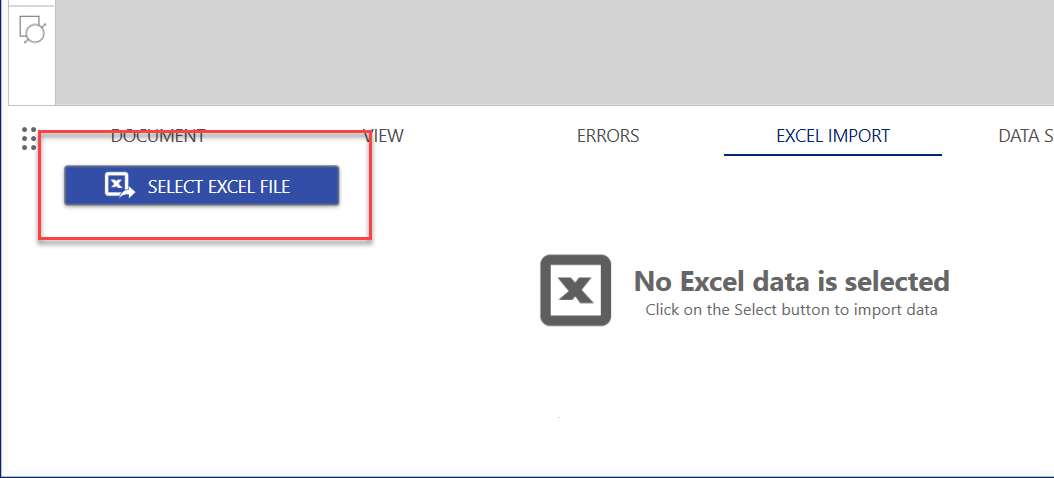

Select the Select Excel File button.
Navigate to and select your Excel data.

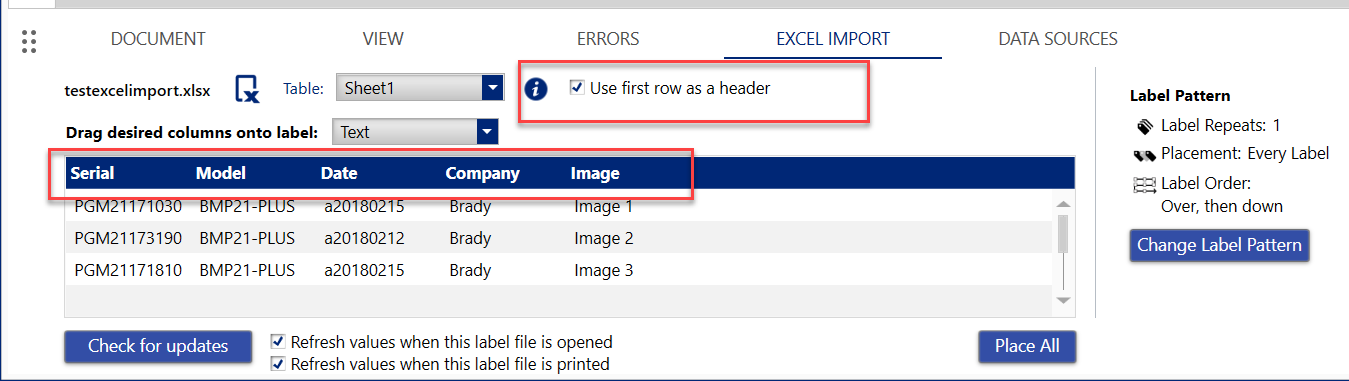

Choose Use first row as header if your data includes headers.

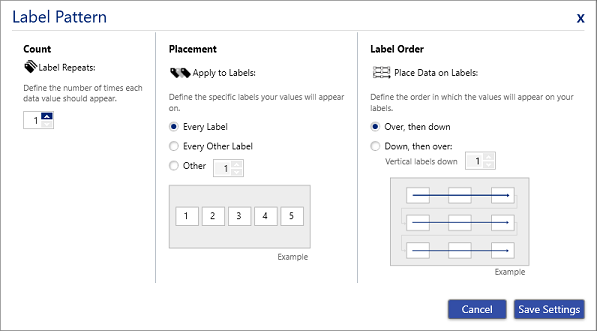

Select Change Label Pattern to adjust the label pattern settings, as applicable. Select Save Settings.

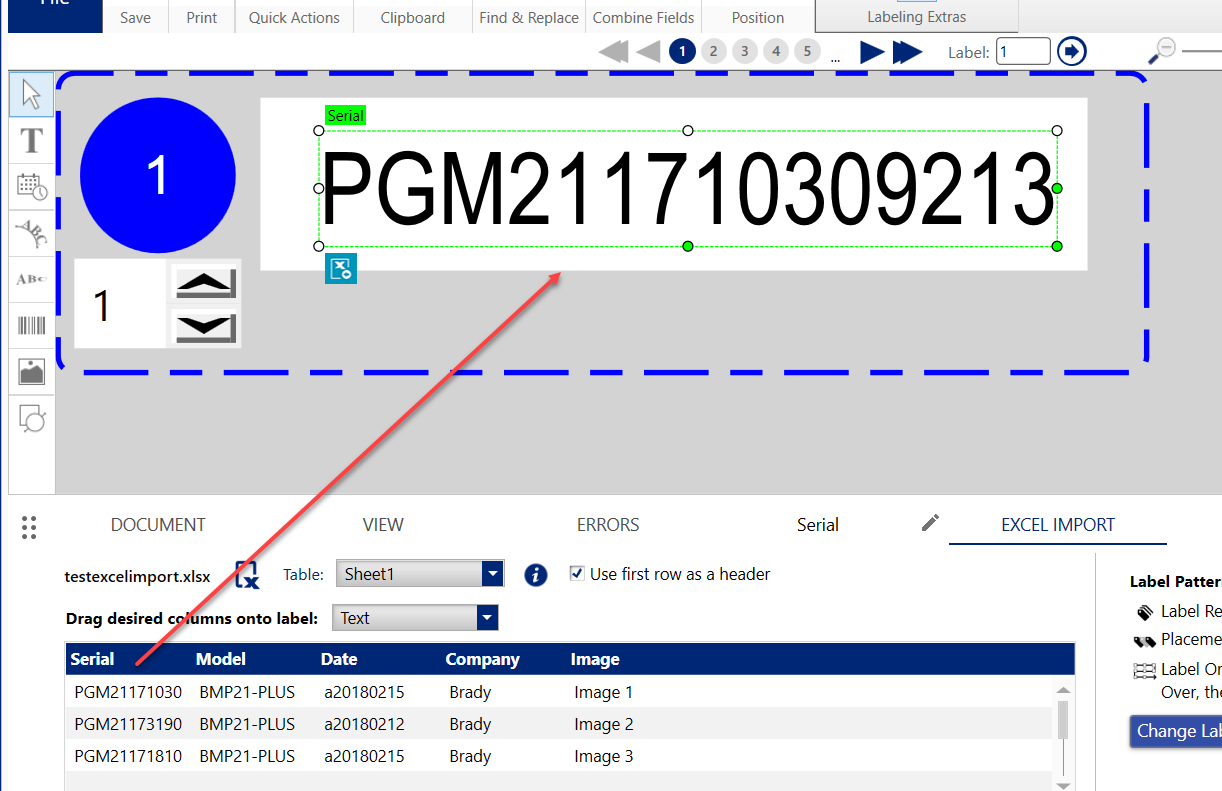

Drag and drop the data to be imported onto the label.

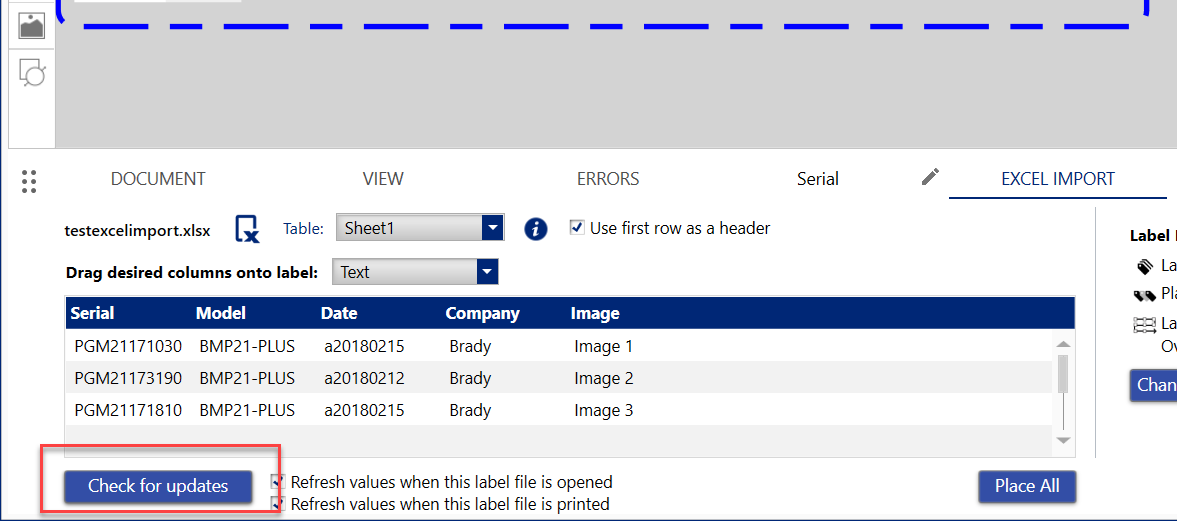

Select Check for updates button to update or refresh Excel data without closing and reopening the label file. For more information about refreshing Excel data, see Data Refresh in Brady Workstation.
If you have any objects (text, logo, barcode) that will stay the same on every label, set the static object to Show On Every Label.

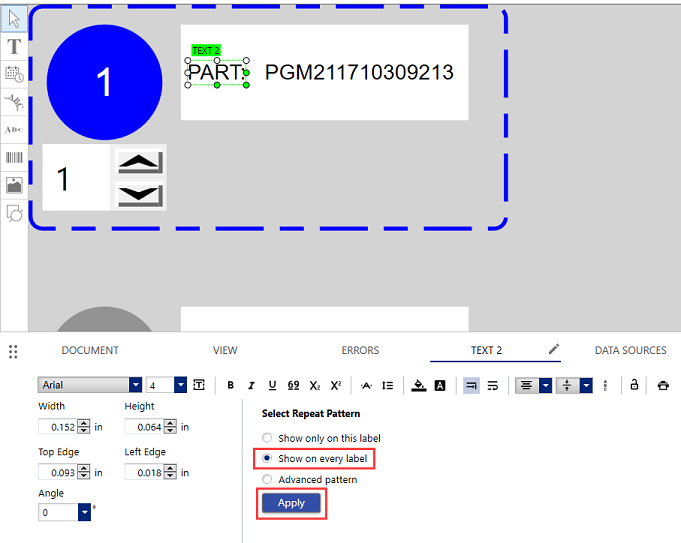

In this example: "Part:" will stay the same on every label. In Label 1, select the text object, select Show on every label and select Apply. The Part Number will change on every label as this is imported from the Excel file. This will keep the setting Show only on this label.
