Loading Cartridges into the M211

Important: Only cartridges with the Authentic A in the right corner will work in the M211: Portable Printers - Brady Authentic Labels.

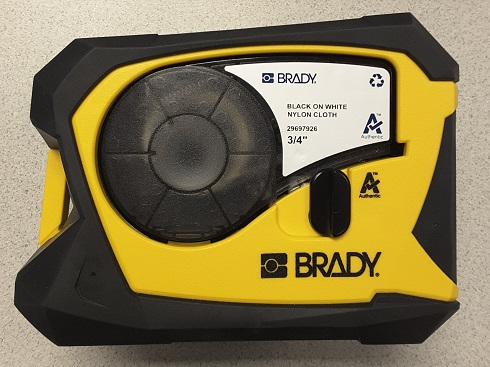

  1. Turn the locking lever to the left on the printer to unlock the cartridge.
           Locking Lever Unlocked.jpg

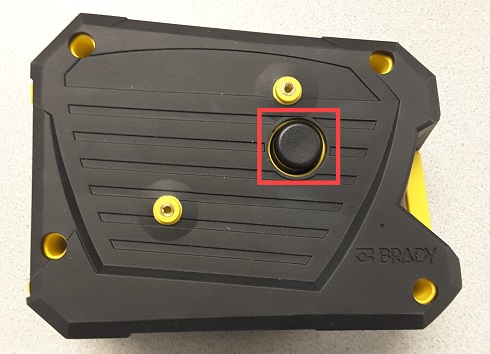

  1. Push the eject button on the back of the printer.
            Locking Lever circular button the back of the printer

  1. Lift the cartridge out of the printer.

  1. Place a new cartridge in the cartridge bay and push down until you hear the cartridge click into place.

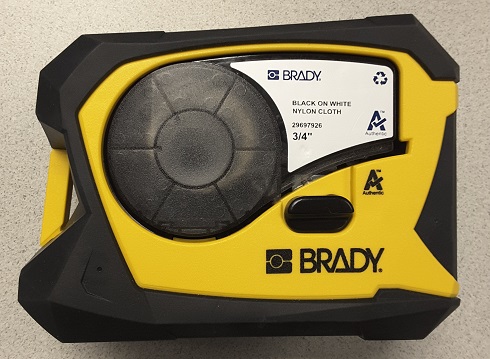

  1. Turn the locking lever up (to the right).
           Locking lever for the cartridge in an upright position


Related information
Issues loading cartridges or printing:
