TitleBMP21-PLUS / M210 / M211 - Labels will not Feed
Body
Issue

Labels will not advance out of the printer.


Troubleshooting

  1. The leading edge of the label roll may be uneven or torn. There may also be too much of the label leading out of the cartridge. Use a pair of scissors to cut a straight leading edge on the labels.

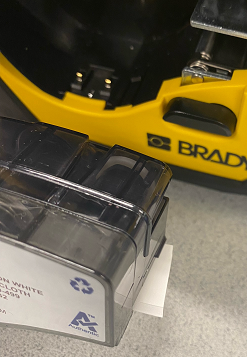

Uneven label
Uneven leading edge

 leading edge of labels

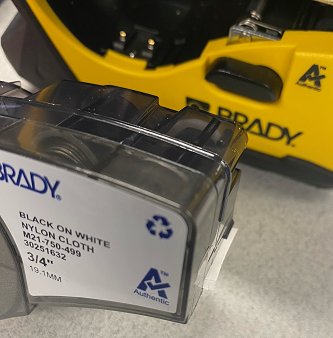

 Straight leading edge

  1. Clean the printer.

  1. Verify the locking lever is closed for the label cartridge.

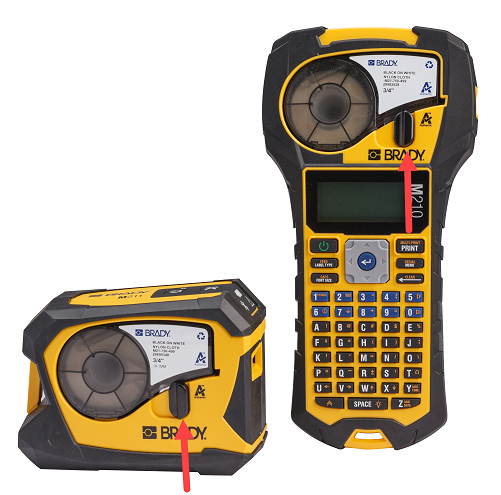

Locking lever closed
Locking lever closed on the M211 and M210 printers


  1. Try another cartridge: M210 - Label Materials Guide and M211 - Label Materials Guide.

  1. Check to see if there is ribbon around the platen roller. Use the locking lever to move the platen roller upwards and carefully remove the ribbon.

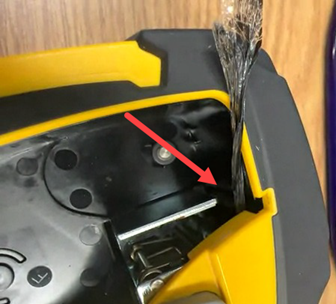

ribbon on platen roller


If the issue still persists, contact Global Brady Technical Support Contact Information with your part number and lot number of the label cartridge: What Is The Label/Ribbon Part Number and Lot Number.
