Titlei7100 - Set the Sensor Type on the Driver
Body
Sensory Type Settings in the Driver

Important: There are two sensor settings in the driver. Make sure to set both sensors. The driver settings will override the settings on the printer.

  1. Download the Driver: How to Install the i7100 Driver and Network the Printer.

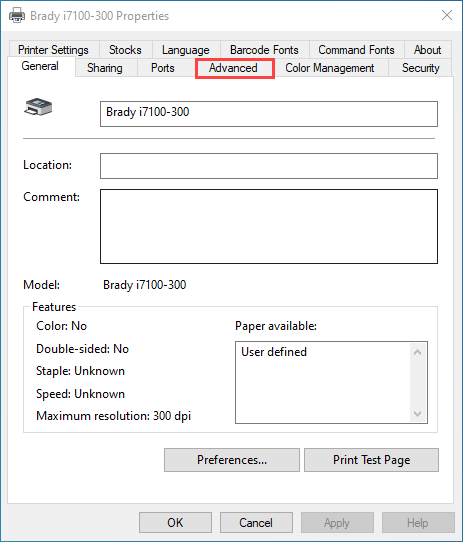

  1. Open the Driver and select the Advanced tab.
 Driver - Advanced.png

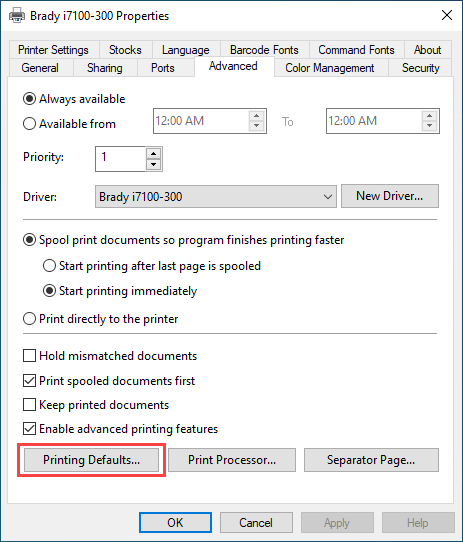

  1. Select Printing Defaults.
 Advanced - Printing Defaults.png

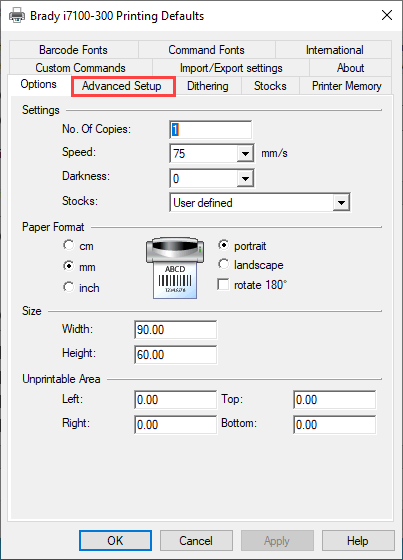

  1. Select the Advanced Setup tab.
 Printing Defaults - Advanced Setup.png

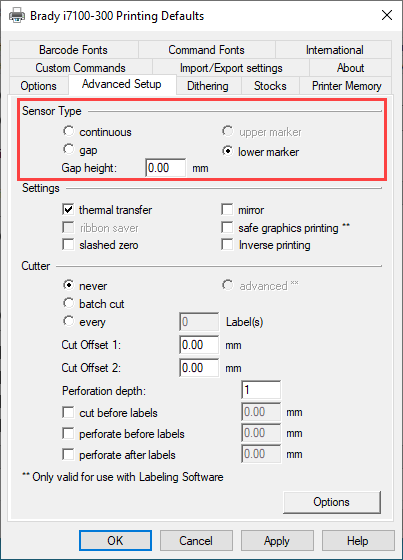

  1. Select the radio button for Sensor Type. This will depend on what label type you are using. Select OK.
Advanced Setup.png

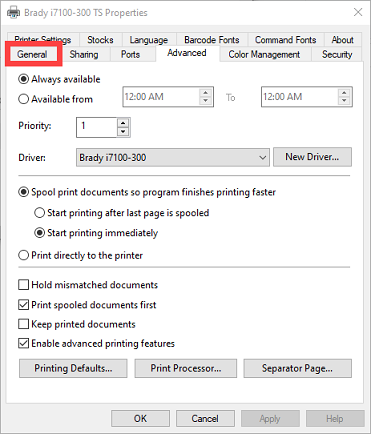

  1. Select the General tab.
General tab

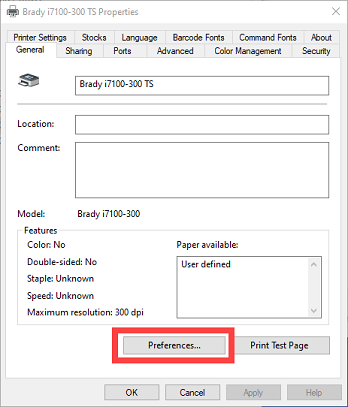

  1. Select Preferences.
General_Preferences

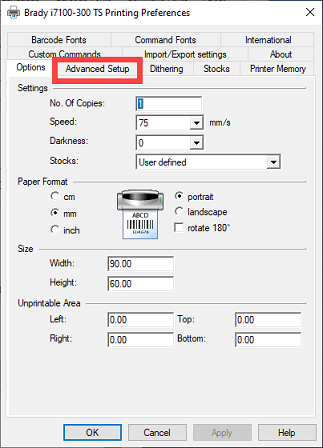

  1. Select the Advanced Setup tab.
General_Preferences_Advanced

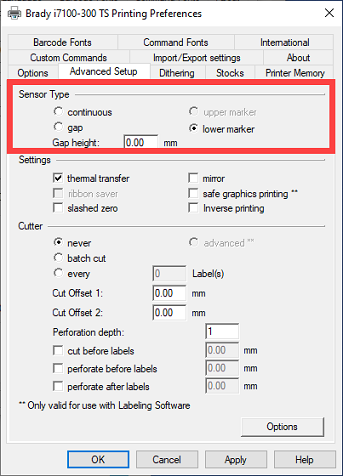

  1. Select the Sensor Type.
Printing Preferences

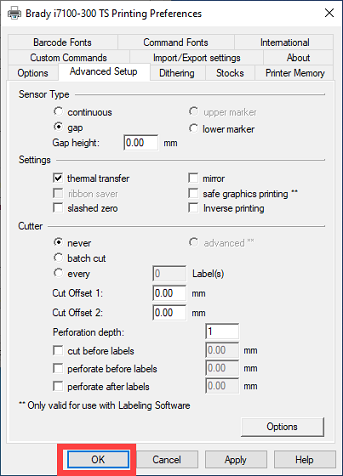

  1. Select OK.
Printing preferences_OK

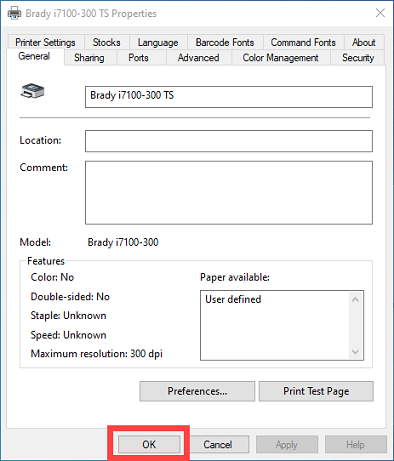

  1. Select OK.
Properties_OK
