3PS-187-2-**-4 Print Alignment Issue

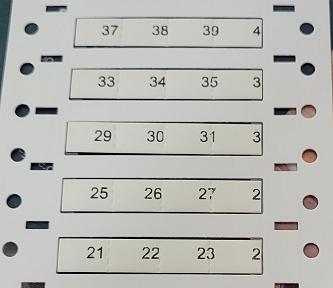

The following part numbers may print towards the left or right on the i5100, i7100, PR+ and IP series printers:
- 3PS-187-2-WT-4
- 3PS-187-2-YL-4
- 3PS-187-2-BK-4
- 3PS-187-2-RD-4
- 3PS-187-2-OR-4
- 3PS-187-2-GN-4
Workaround

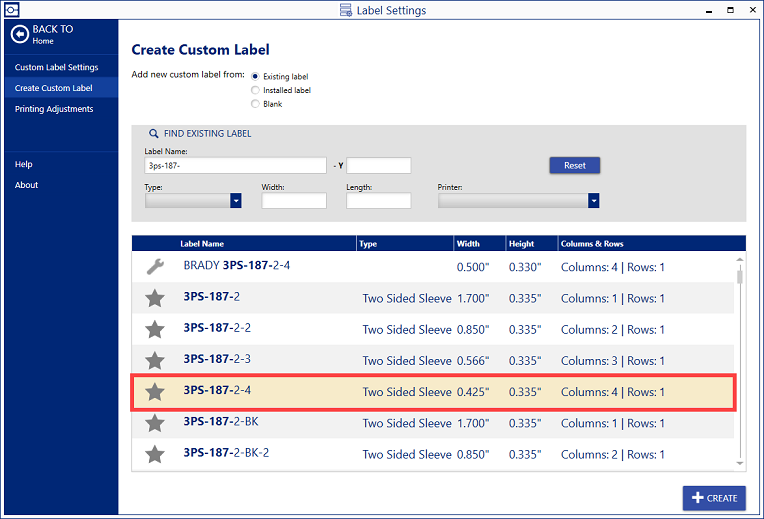

- Create the custom label in Brady Workstation using the existing label 3PS-187-2-4: Brady Workstation - How to Add Custom Label Parts to configure page size, orientation, calibration method, etc. for Brady custom labels or Non-Brady labels.

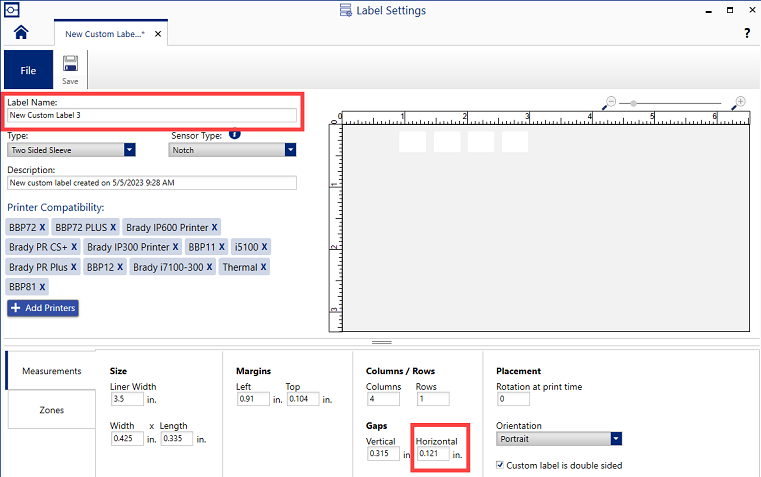

- Update the Horizontal gap to 0 and change the label name.
- Recreate your label with this custom part.
If you still experience issues, contact Global Brady Technical Support for your region.
Important: The IP and PR printers are obsolete: Obsolete Brady Printers - No longer supported or repaired.
