TitleBBP35 / BBP37 / BBP85 / S3100 - How to add Blackout Diamonds to GHS Labels Standalone
Body
Blackout Diamonds in GHS

A black diamond can be used as a placeholder for empty icons. Diamonds cannot be left blank per OSHA regulations.

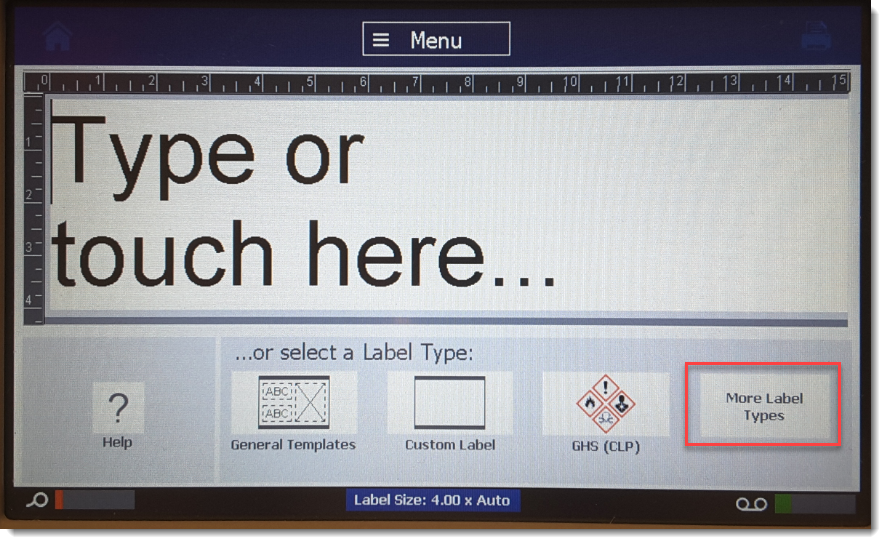

  1. From the home screen, select the More Label Types button.

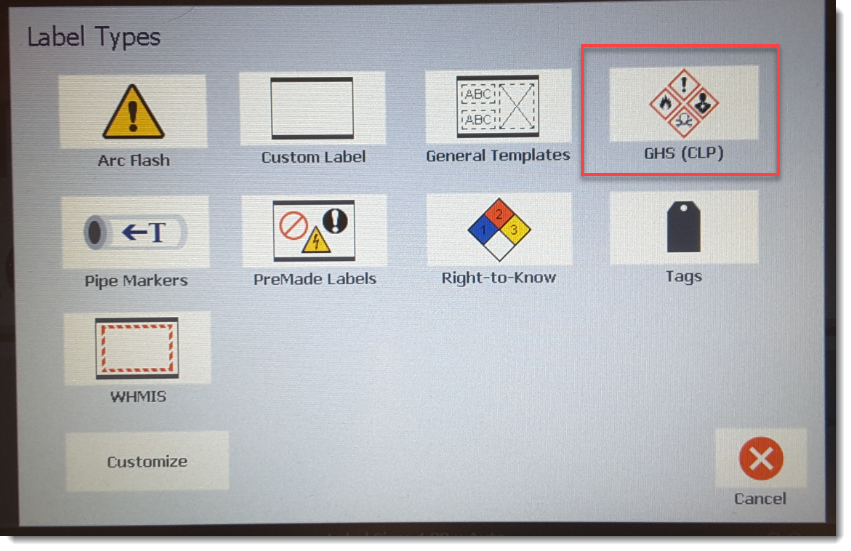

  1. Select the button for GHS (CLP).

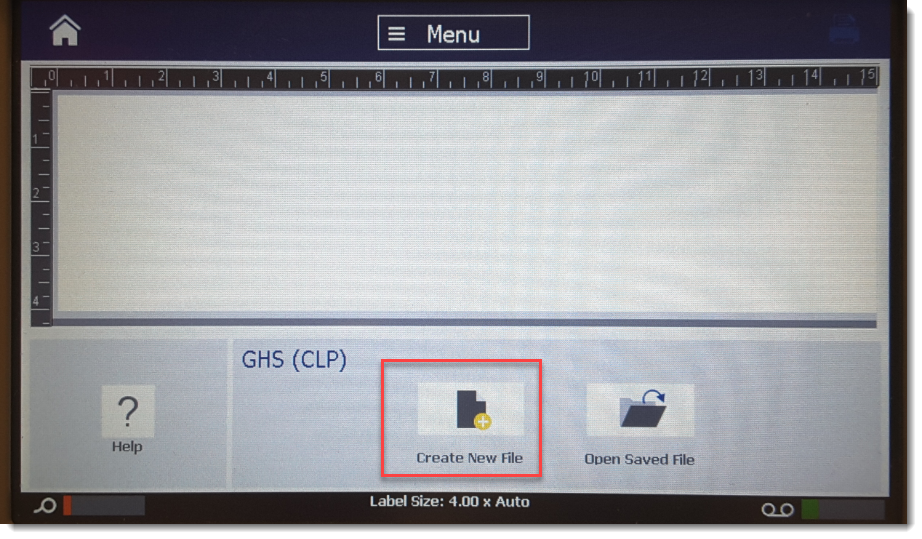

  1. Touch Create New File.

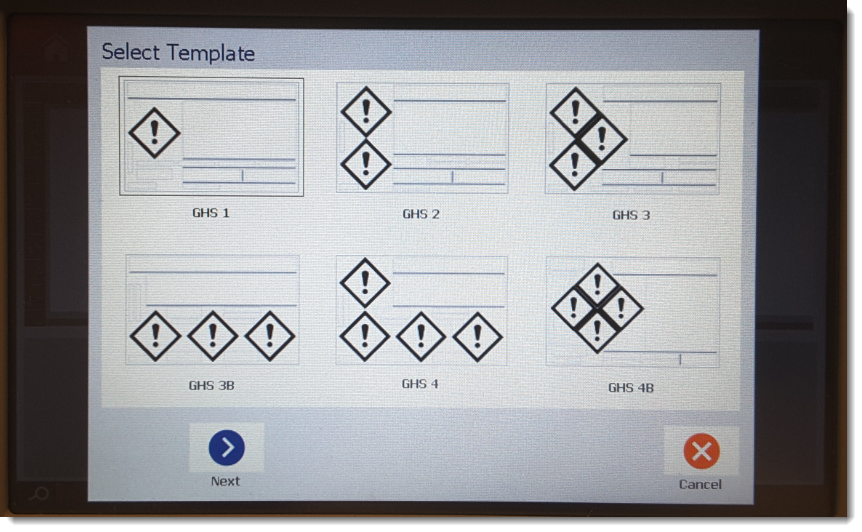

  1. Select a template.

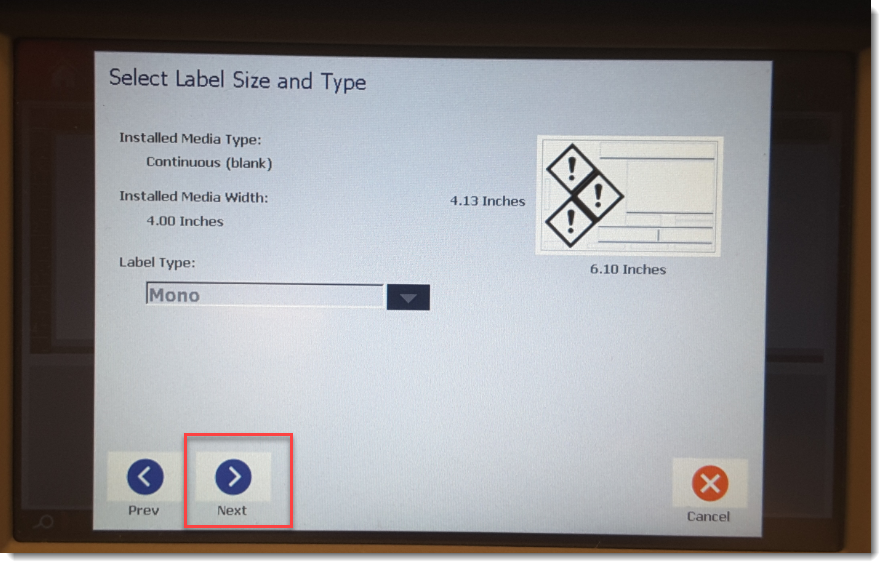

  1. Touch Next.

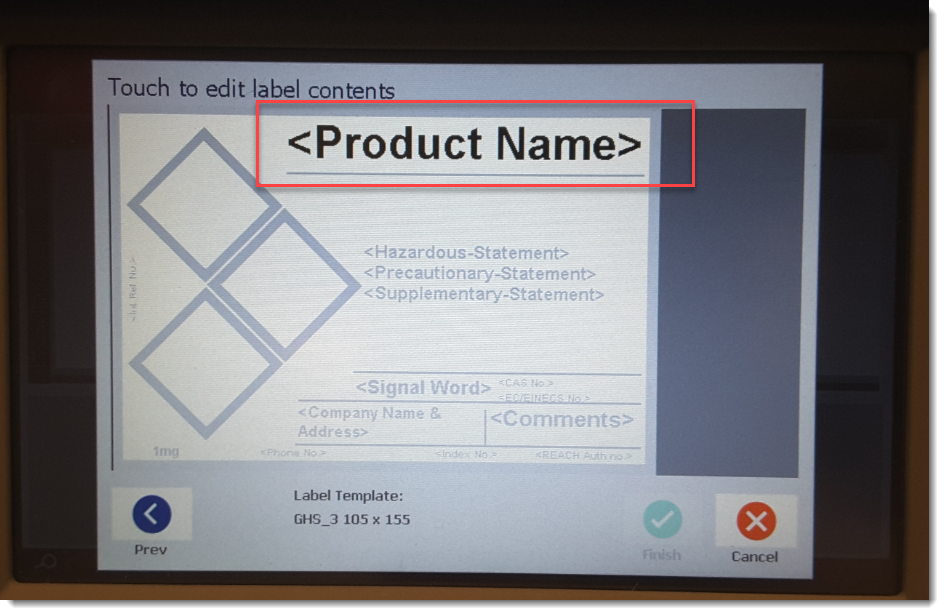

  1. Touch Product name and choose a product.

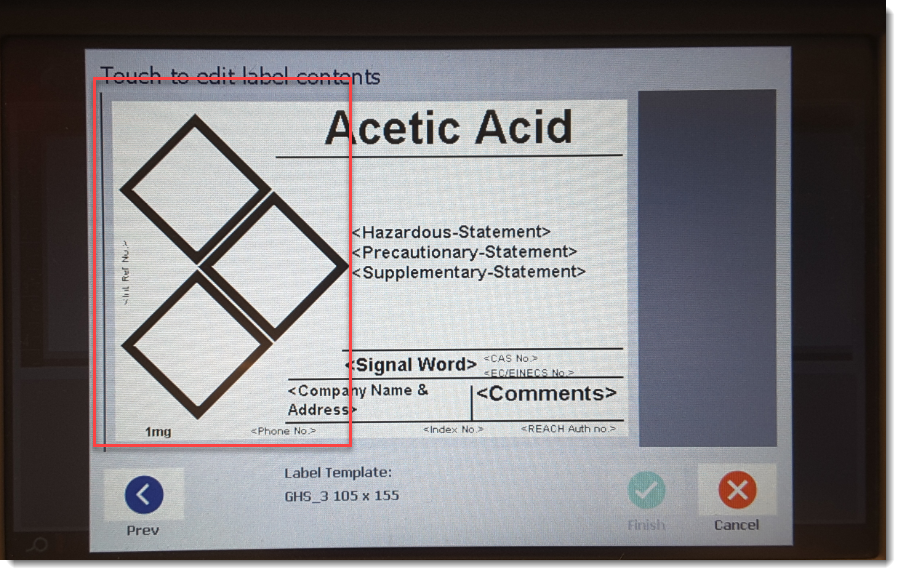

  1. Touch one of the blank diamonds.

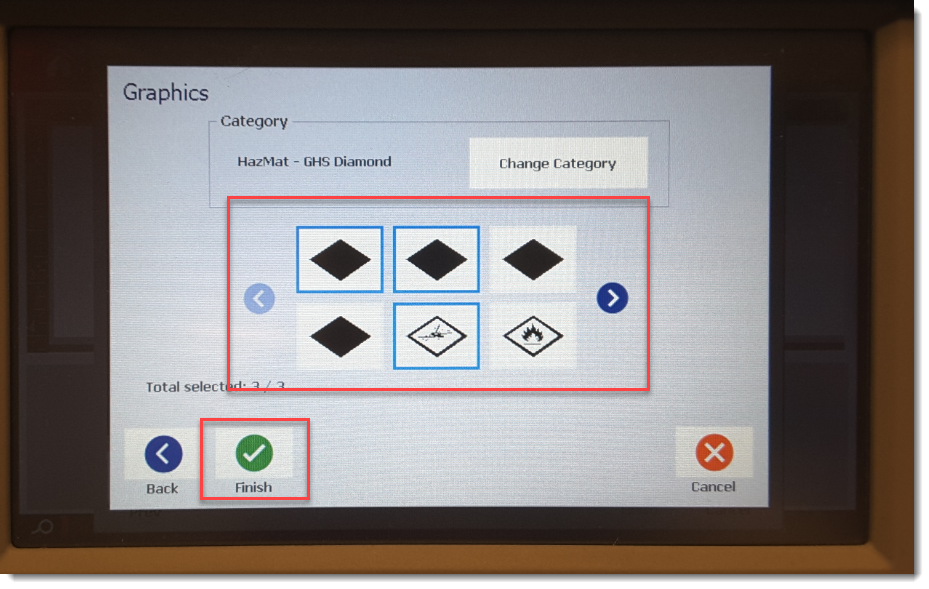

  1. Choose black diamonds or pictograms as needed.
Note: You may need to use the right arrow to navigate to the black diamonds. The Finish button will be grayed out until all pictograms or black diamonds are chosen. View the OSHA website for information regarding OSHA requirements and black diamonds.

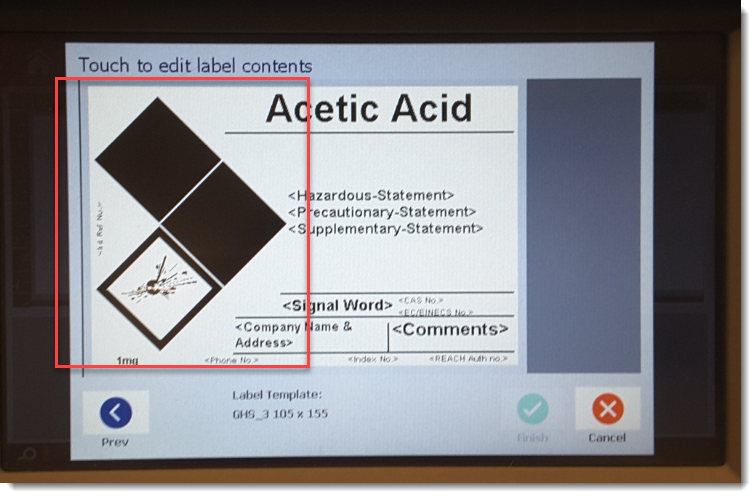

  1. Touch finish to preview the label.

Note: If these menu options don't exist, you may need to upgrade your firmware - Load Firmware Without the LCD Screen on the BBP85.
