Configure Networking Settings from the i5300 Display


This article provides instructions add the i5300 to a network using a hardline ethernet connection.

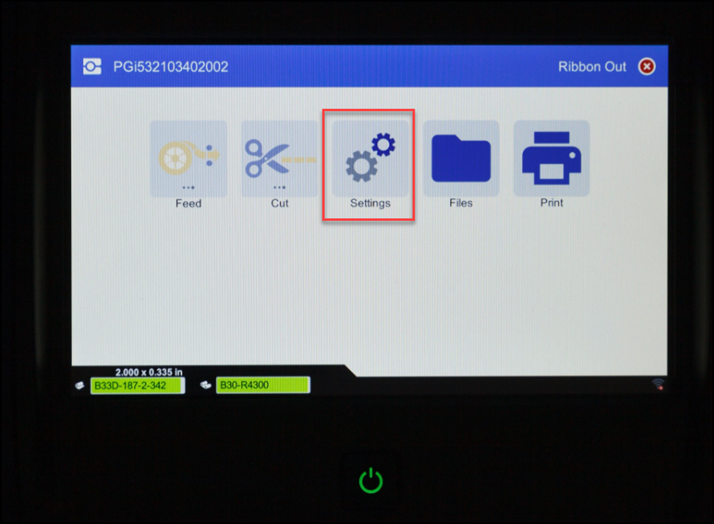

1. On the Home screen tap Settings.

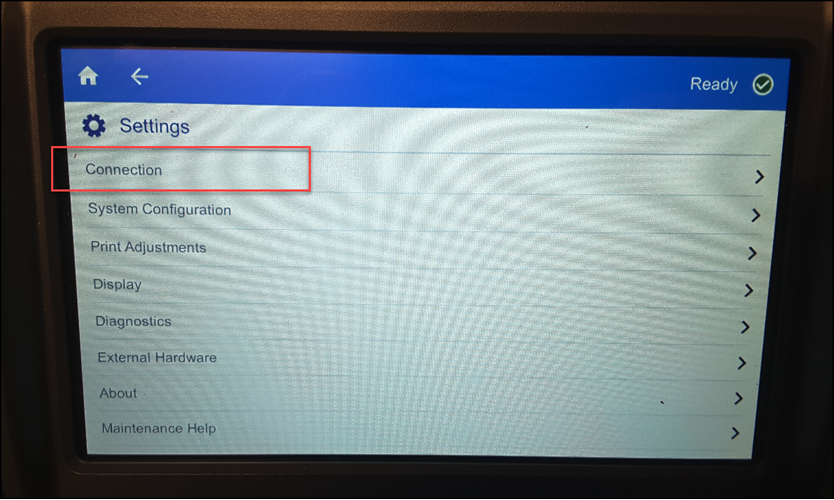

2. On the Settings screen, select Connection.

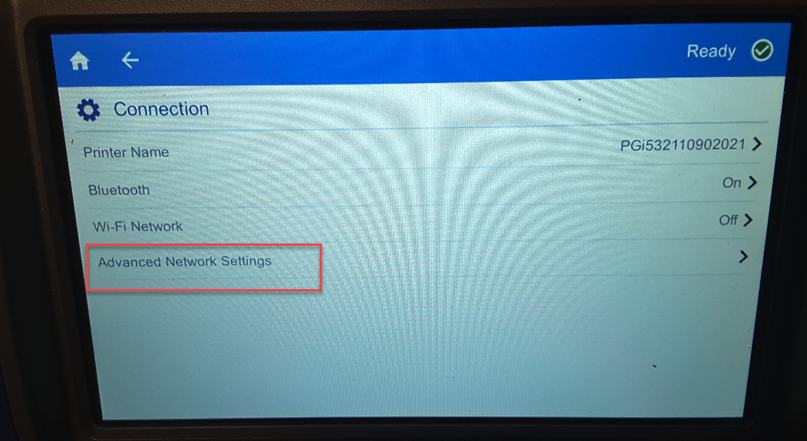

3. Select Advanced Network Settings on the Connection screen.

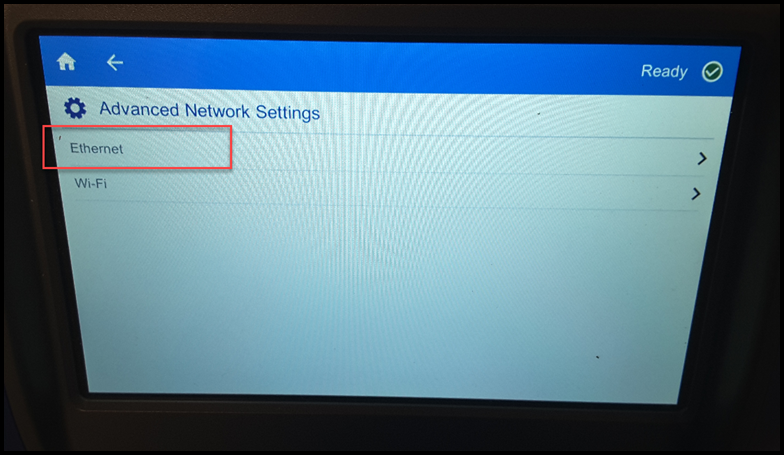

4. Touch Ethernet.



The i5300 can be configured for a static or dynamically assigned IP address. This is configured in the IP settings menu: Static vs DHCP IP Addresses

5. Choose IP Settings.

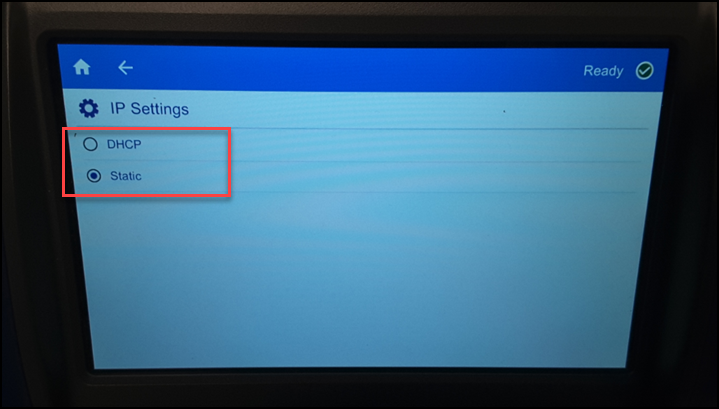

6. For IP Settings, select either the DHCP or Static check box.
  • DHCP: DHCP addressing is dynamic and the system uses a DNS server to obtain the printer IP address for you.
  • Static: For static addressing, you must manually configure the printer's IP address.

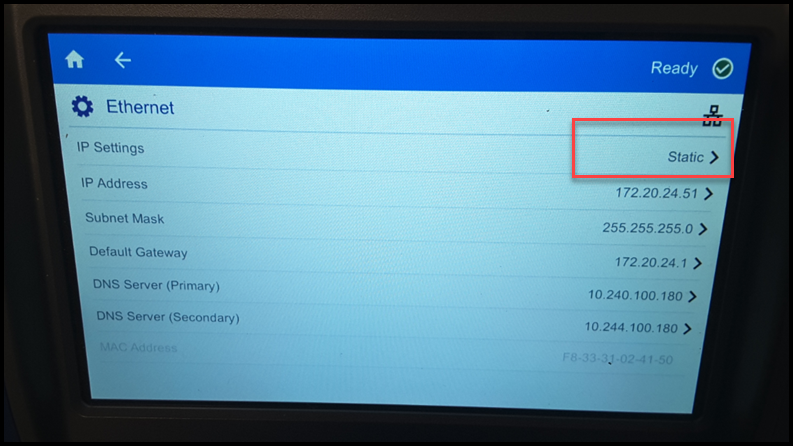

7. If Static was selected, fill in the following fields:

Note: If you're not sure what these are, reach out to your network administrator.
  • IP Address: Enter the printer’s IP address.
  • Subnet Mask: Enter a subnet mask if you are using one.
  • Default Gateway: Enter the IP address of the default gateway.
  • DNS Server (Primary): Enter the IP address of the primary DNS server.
  • DNS Server (Secondary): Enter the IP address of the secondary DNS server.
IMPORTANT! If no DNS server is being used, enter 0.0.0.0

8. Tap on the back button to get to the Advanced Network Settings screen in order for the fields entered to take effect.
