Clean the BMP61




Clean the Display


  1. Use the Cleaning Kit (PCK-5) to gently wipe the display screen until clean.


    Clean Internal Components


    Note: If you do not have the cleaning card, see the Clean Without the Cleaning Card section below.

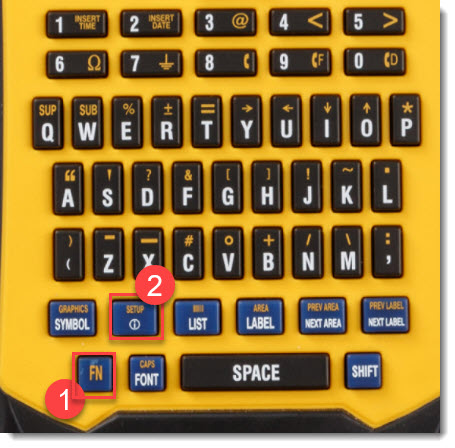

    1. Press Function + Setup to display the setup menu.
    User-added image
    1. Select Config using the arrow pad and enter button.

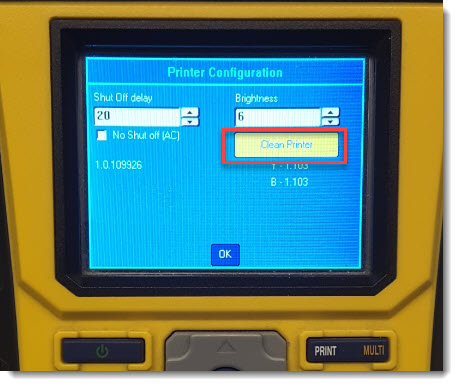

    1. Select Clean Printer using the arrow pad and enter button.
    User-added image

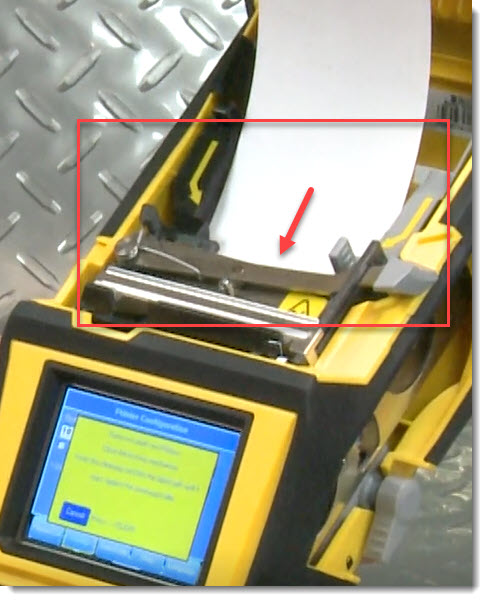

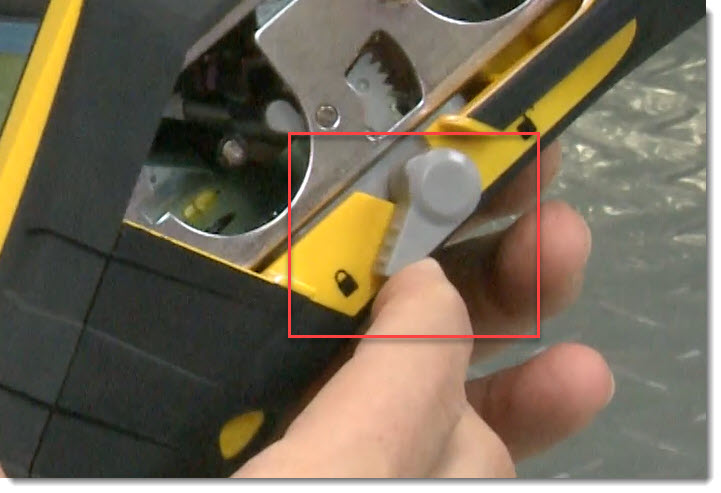

    1. Follow instructions on screen to remove labels and ribbon, then close the ribbon locking lever.
    User-added image

    1. Set the printer media guide to the widest position.
    User-added image
    1. Insert the cleaning card into the label path until it stops against the printhead and platen roller.
    User-added image

    1. Press Enter to initiate the cleaning routine.



    1. Remove and dispose of cleaning card after cleaning is complete.


    Clean Without the Cleaning Card


    The cleaning cards make cleaning convenient, but are not necessary to clean the sensor components of the printer. See this article for detailed instructions to locate and clean the sensors: BMP61 - Backfeeding labels, Check Media and Replace Cartridge Errors

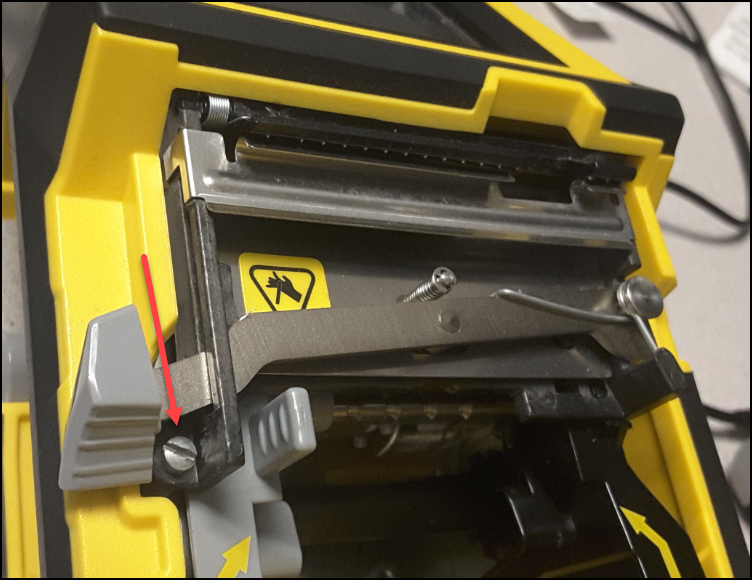

    A single screw allows the cutter assembly to be removed, this allows easier access to the print head if you do not have the cleaning card. The print head appears as a green strip on a bronze circuit board - be sure to only clean the green and black strip portion, do not get cleaning solution on the bronze board or ribbon cable.



    Clean the BMP61 Notch Sensors


    The BMP61 contains three sensors. Clean these areas using compressed air or Brady's Cleaning Swab (PCK-6).

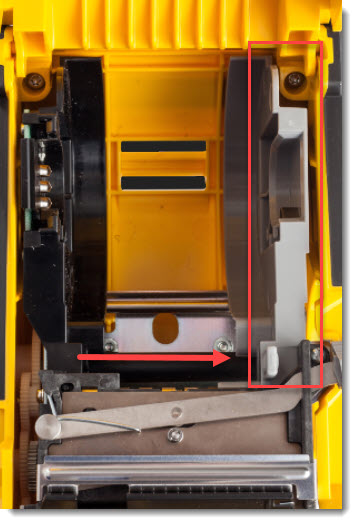

    The first sensor is right above the spindle on the right, or near the back of the printer.

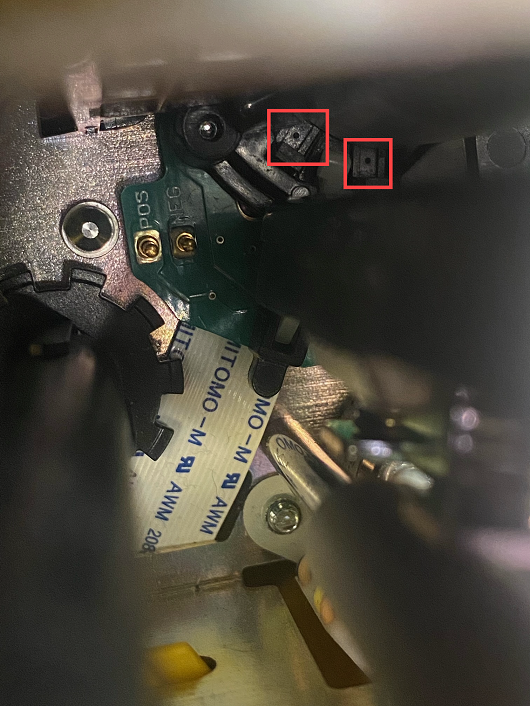

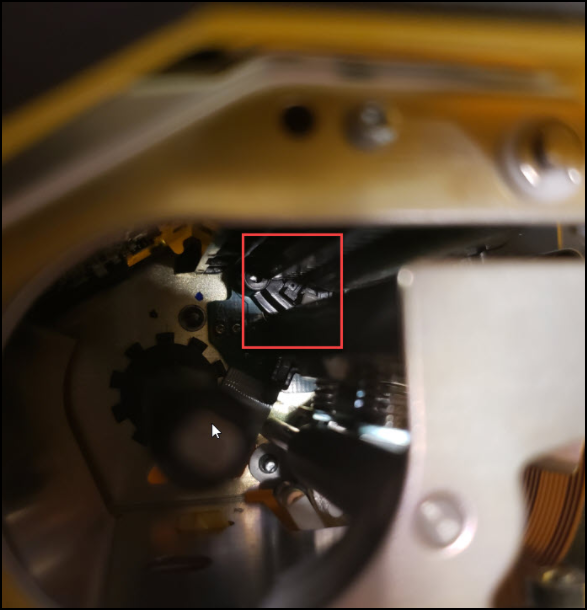

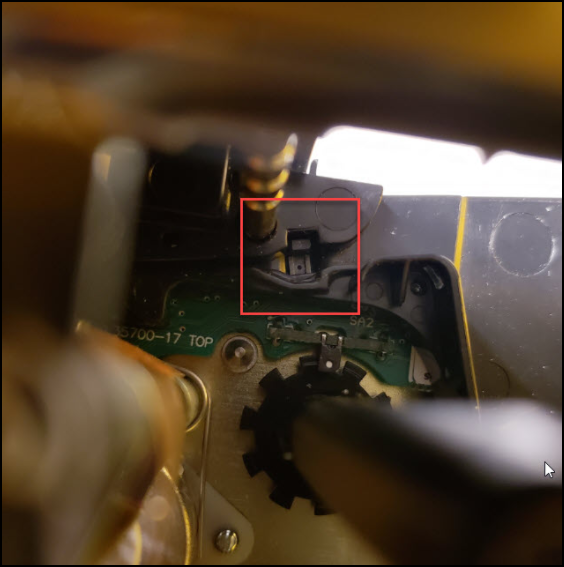

    The second and third sensor is a bit harder to locate but can be found near the front ribbon spindle, or near the front of the printer. It is easiest to follow the curve of the metal plate until it makes the 90 degree turn and look directly behind and above that spot.


    Two sensors
