Titlei3300 - "Supply Wiper Arm Closed" Error
Body
Issue

The printer displays "supply wiper arm closed".

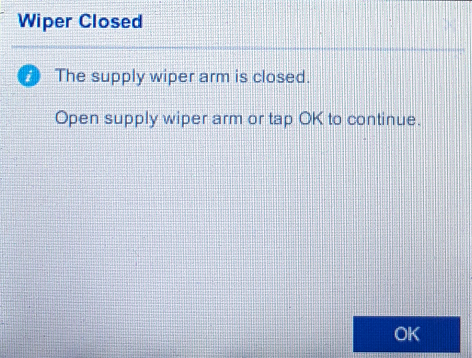

Wiper Closed Error.png

Cause

  1. The wiper arm is down with die cut media. The wiper arm should not be engaged when using die cut media: Why Are Label Materials Referred to As "Die-Cut" or Continuous"?

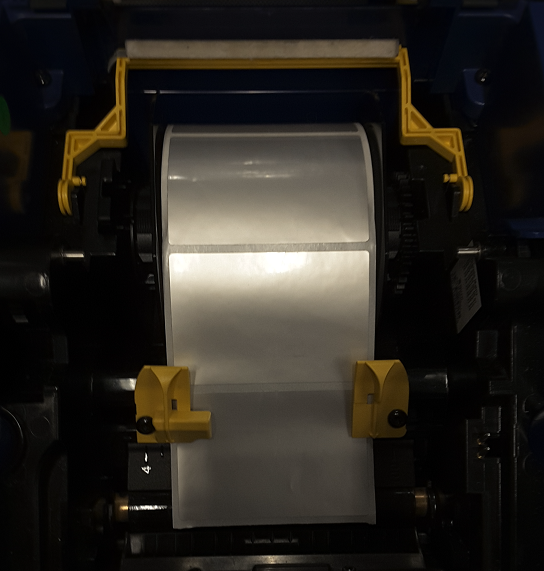

Wiper arm

  1. The wiper arm is over the supply bridge. When the wiper arm is over the supply bridge it is not fully in the up position, which is why the error displays.

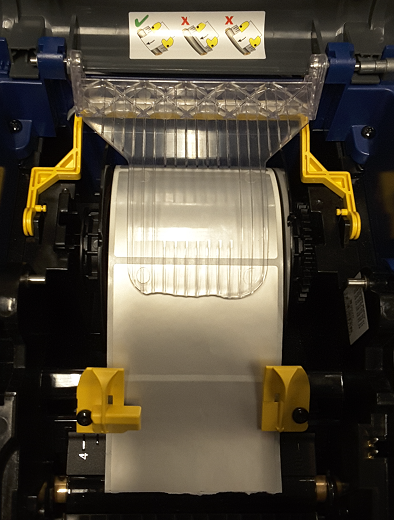

Media Wiper over the supply arm

Resolution

  1. Move the wiper arm in the up position.

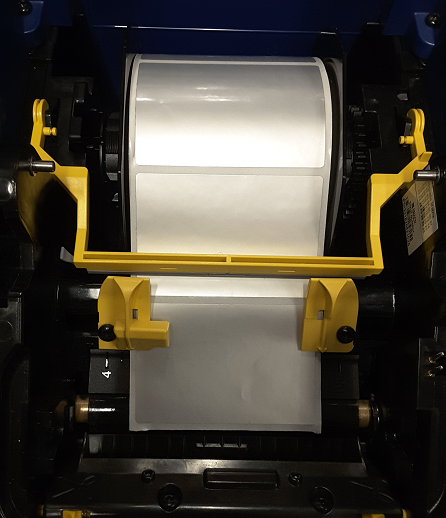

Wiper arm

  1. Put the Supply Bridge over the Media Wiper.

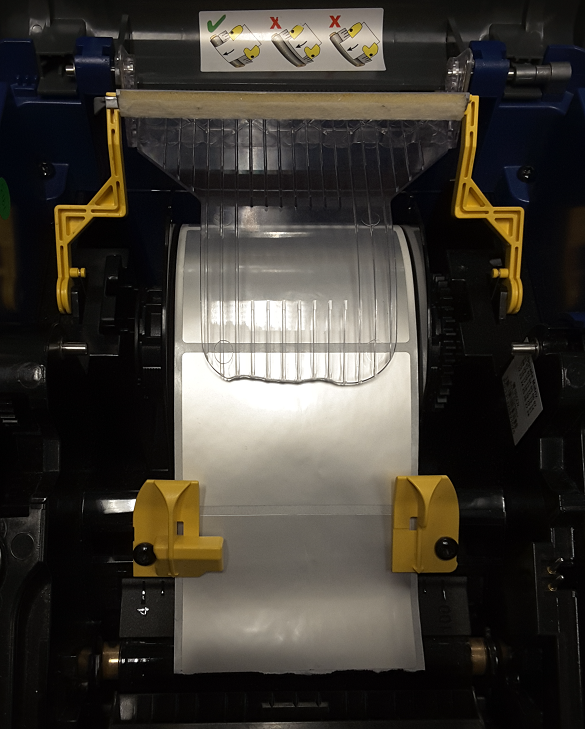

Wiper arm and supply bridge

Additional Troubleshooting

If you are using continuous media, or the wiper arm is not closed using die-cut media, then try power cycling the printer. You can also try engaging and disengaging the wiper arm. If this does not clear the error, then the wiper arm sensor my have failed. Contact Brady Technical Support for your region for further troubleshooting: Global Brady Technical Support Contact Information.
