The media and ribbon supply cartridges use a “smart cell” to define and track the supply information. The system automatically recognizes the supply information for the installed media and ribbon.
Installing or Changing the Label Media

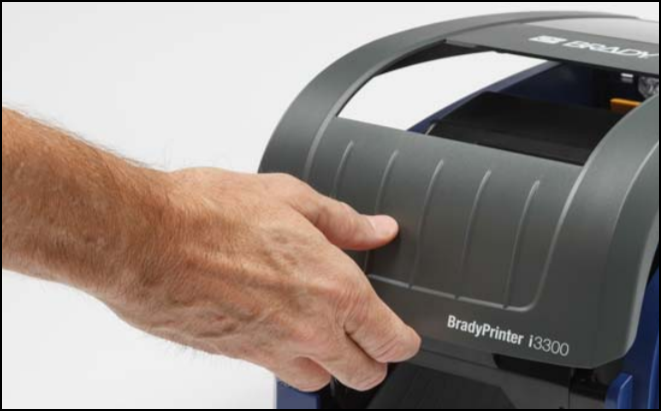

Open the enclosure cover (opens from left).

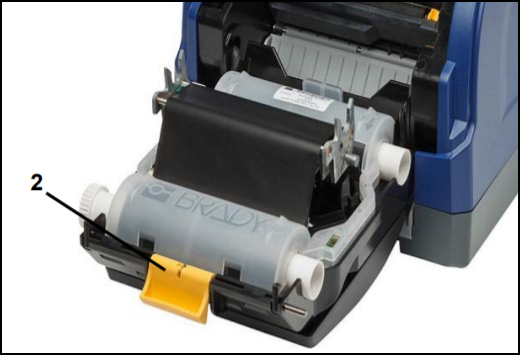

Release the latch on the ribbon-cover [2] and swing open.

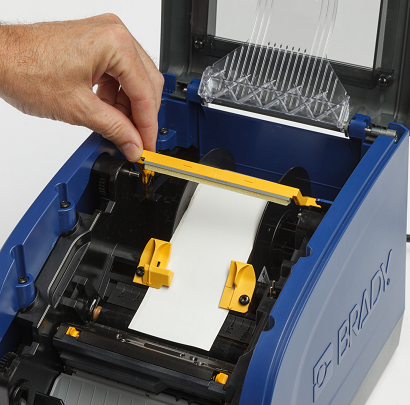

Swing yellow media wiper [3] to far right (when facing display), if engaged.

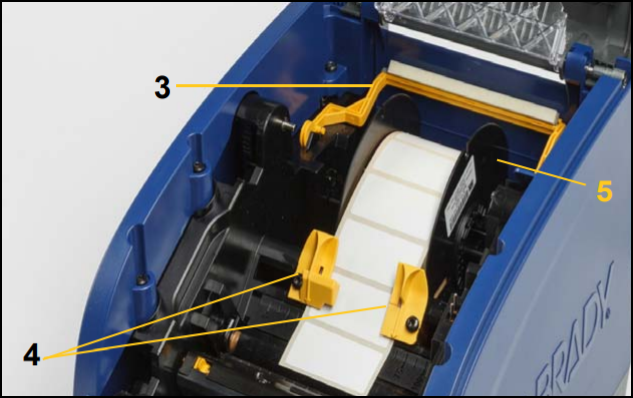

Slide yellow media guides [4] to full-open.

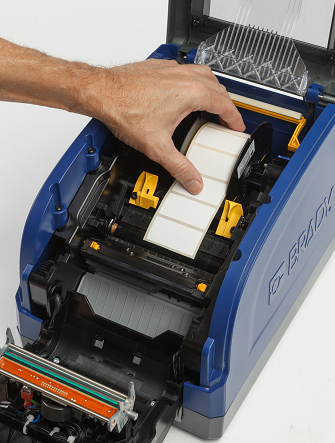

Remove existing media, if installed, by pulling cartridge from printer. 6. Insert media cartridge until spindle ends rest in slots of media holder [5].
Feed media from the top of the roll until it sits in the middle of the platen roller or slightly past the middle.

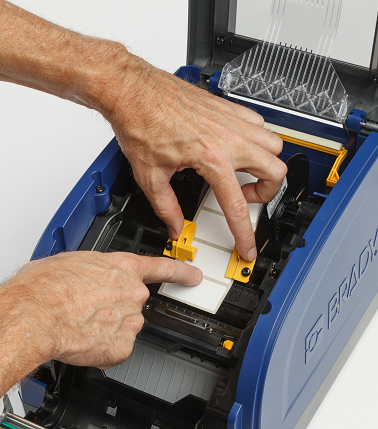

Close media guides until they touch edge of media liner with media under the guides.
Move media wiper into position so it rests on media, if applicable.
Note: Not all media requires the use of the media wiper. Engage the media wiper only if needed for the supply installed (usually continuous media).
Close and latch ribbon cover. Close the enclosure cover.
If printer was asleep, press power. The system detects the installed supplies, sets background and foreground colors, indicates the label dimensions and the amount of remaining supplies.
Installing or Changing the Ribbon
To remove the ribbon, open the enclosure cover (opens from left).

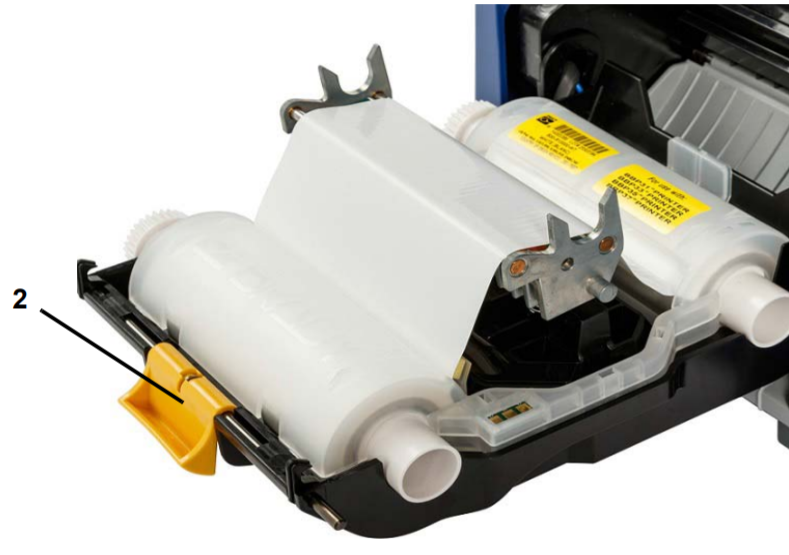

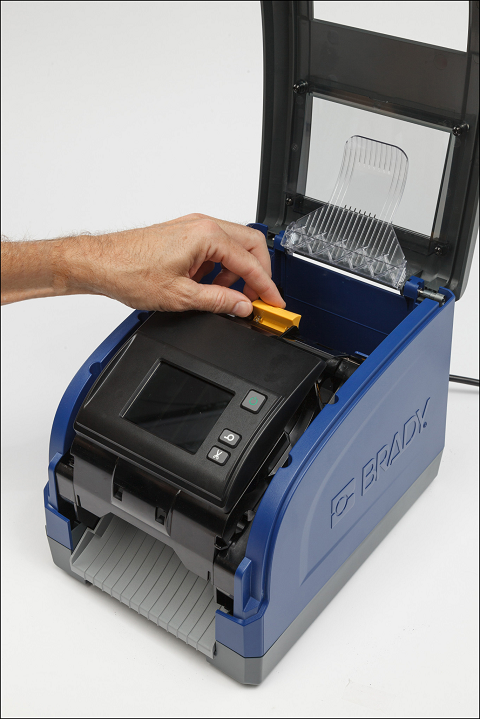

Release the latch on the ribbon cover [2] and swing open.

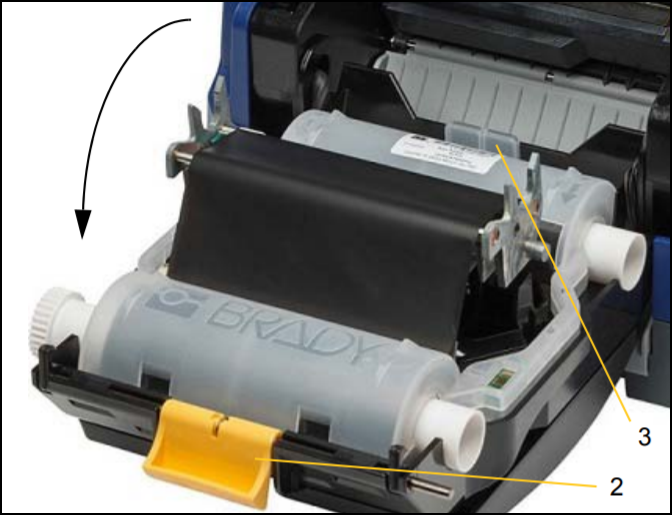

Release the ribbon cartridge latch [3] and lift the ribbon cartridge up and out.
Place ribbon cartridge with ribbon over print head (product label toward machine), then snap into place.
Close and latch the ribbon cover.
Close the enclosure cover.
If printer was asleep, press power. The system detects the installed supplies, sets media and ribbon colors, indicates the label dimensions and the amount of remaining supplies.
