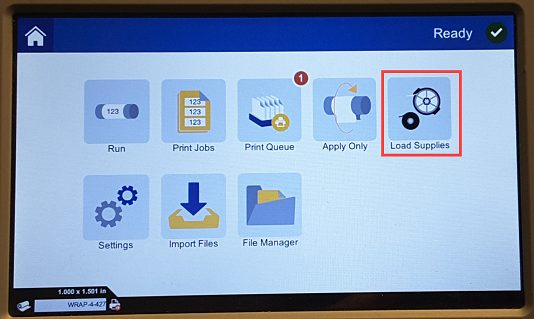

Select Load Supplies on the Wraptor A6500 LCD screen.

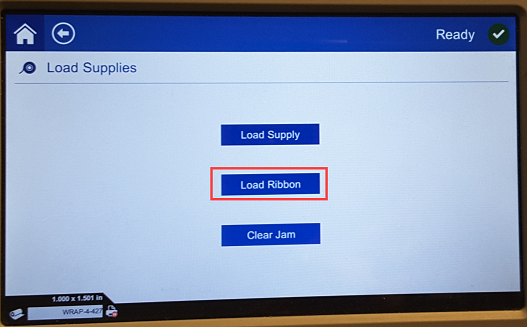

Select Load Ribbon.

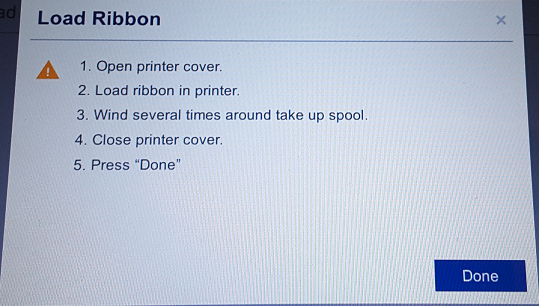

The following message displays. Do not select Done until Ribbon is loaded.
Open the side door cover.
Remove the old Ribbon.
Cut the ribbon between the guide bar and take-up spool.
Hold the edge of the take-up spool while turning the knob clockwise until it stops.
Pull the take-up spool knob to remove the used ribbon from the take-up spool and discard.
Re-engage the take-up spool by pushing it in all the way until the knob auto-rotates back to its original position. Failure to re-engage the take-up spool will make it difficult to remove the old ribbon next time!
Remove remaining ribbon, if any, from the feed spool.
Use tape to secure the end of the ribbon roll.
Place the ribbon roll on the feed spool.
Thread the ribbon under the guide roller and over the guide bar and printhead.

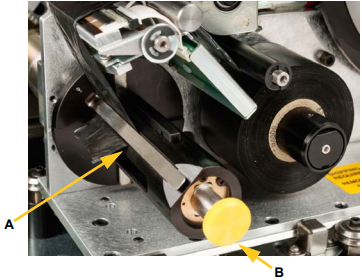

Feed ribbon under the clip (A) as shown until approximately 1" of ribbon is past the clip.
Turn the take-up spool knob (B) counter-clockwise until the ribbon is wrapped around the take-up spool several times to ensure that it won’t unravel.
