Title	Wrapped Labels Are Spiraling, Crooked or Telescoping on the Wire

Body

Issue

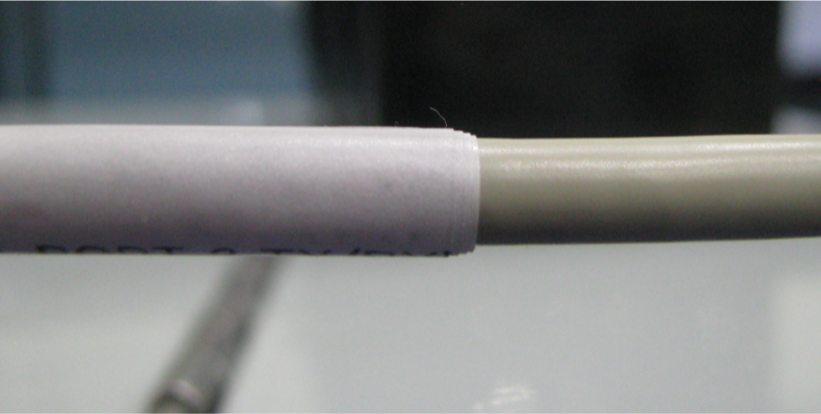

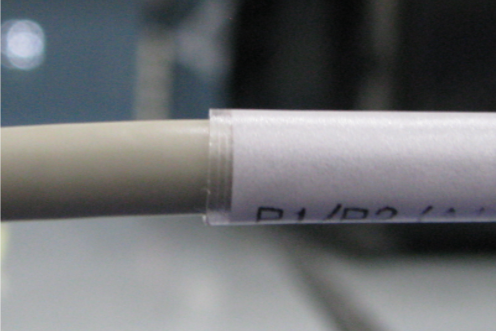

When using the A6500 or Wraptor printer/applicator, labels applied to the wire veer to the left or right in a "telescoping" pattern.

Resolutions

1. Make sure you insert the wire with tension so that it presents a straight uniform surface for the jaws to wrap around: How to Insert Wires for Best Wrap or Flag Performance

2. Make sure the v-block is not worn: How to replace the V-block on the Wraptor and A6500

3. Make sure the v-block was installed correctly: Wraptor and A6500 - Wrapping Badly After Changing V-block

See Also: Troubleshooting Poor Wrap Quality on the Wraptor A6500

If none of these steps resolve the issue, contact Brady Technical Support for your region.
