Body | Printing from CodeSoft to the BBP33 or i3300
- Install the i3300 driver: How to Install the i3300 Driver.
- Launch CodeSoft.

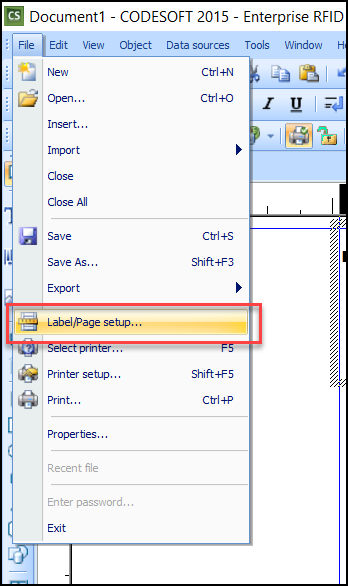

- Navigate to File > Label/Page setup.

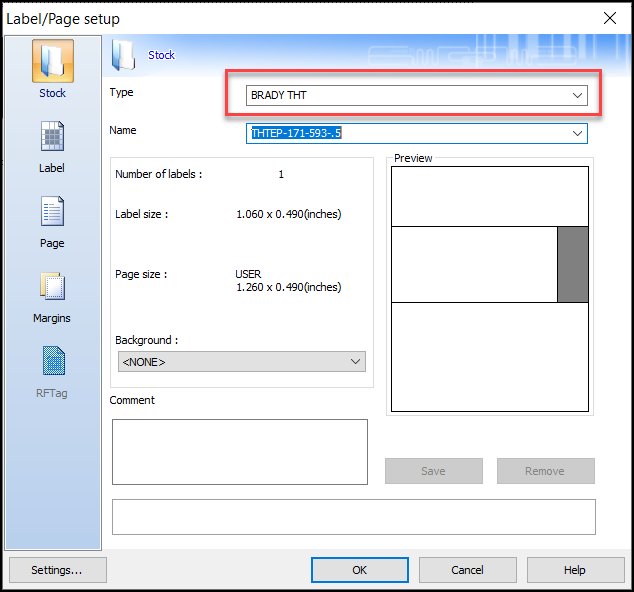

- B30 part numbers are not in CodeSoft, however their generic THT equivalents should work in most situations with only minor print adjustments required. Type should be "BRADY THT". You will need to translate the B30 part name to its appropriate THT part.
Example: For B30EP-171-593-WT, replace the B30EP with THTEP to determine the appropriate part should be THTEP-171-593-.5. For more information about Brady's label part naming conventions: Naming Conventions for Brady Label Media

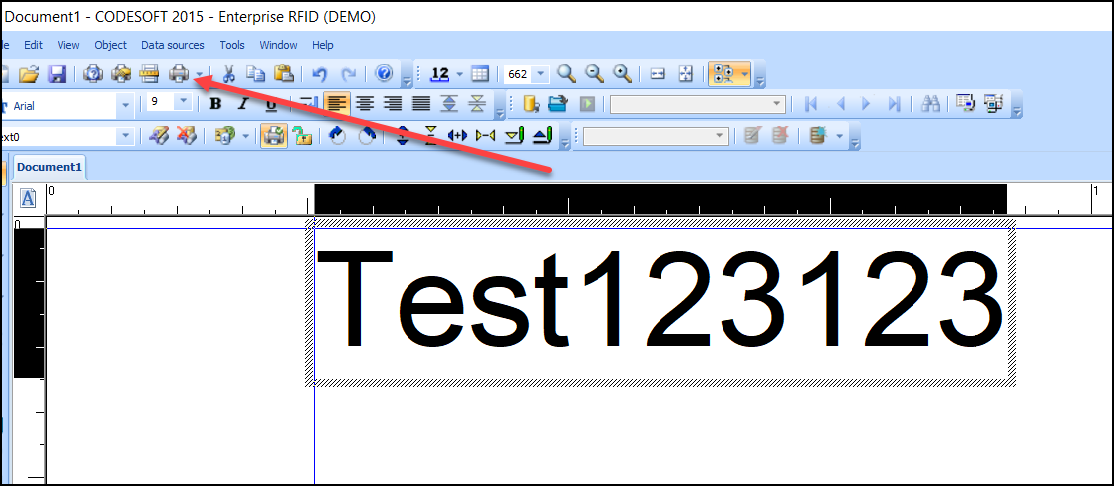

- Type some text in the label canvas area. Select Print.

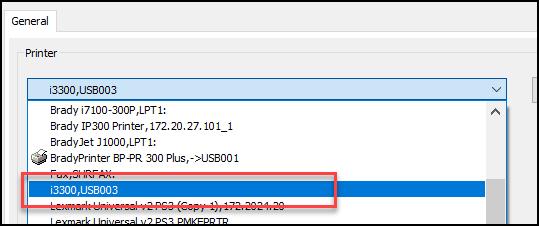

- Choose the i3300 from the printer dropdown, then hit Print.
- Minor adjustments may be necessary. This can be done by modifying the position of text elements or changing settings in File > Page Setup.
|
|
|---|
