Naming Conventions for Brady Label Media

Part Numbers for Brady Label Materials

Brady part numbers contain information about material printer compatibility, size, and material type.

Jump to Section - Printer Compatibility Prefixes

BradyJet Prefixes
3" Core THT Prefixes
Applicator Prefixes
3rd Party Prefixes
Portable Printer Prefixes

Jump to Section - Suffixes & Naming Convention

THT Die-Cut
THT Continuous
Permasleeve
Raised Panel
Other Suffixes

Jump to Section - Ribbon Naming Convention

B30 Series
IP Enabled
BBP11 and BBP12 RXXXX
Portables

Prefixes - Determining Printer Compatibility

B30 Series - S3100, S3000, i3300, i5300, BBP30/31/33, BBP35/37 and S3700

• B30 - B30 Series printers
• B30C - Continuous media for B30 series printers
• B33 - BBP33/i3300 only
• B33D - BBP33/i3300 double sided
• B33C - BBP33/i3300 continuous
• B30EP - B30 series raised panel

Brady Inkjet - J5000, J2000, J4000


• J50 - J5000 Inkjet printer
• J50C - Continuous for J5000 and J4000 Inkjet printers
• J20 - J2000 Inkjet printer
• J20C - Continuous for J2000 inkjet printer
• J40 - J4000 Inkjet printer
• J - J7300 Inkjet Printer
• JC - J7300 Inkjet Printer
• JPSL- J7300 Inkjet Printer
• P- J7300 Inkjet Printer

THT - PR Series, IP Series, i5100, i7100, BBP11/12*


• THT - Thermal Heat Transfer printer
• THTEL - THT with preprinted headers (Danger, Warning, Caution)
• THTEP - B-593 raised panel labels
• XTHT - B-8425 material
• ZH - Zero Halogen
• LSZH - low smoke, zero halogen sleeves
• 2LSZH - Two-sided low smoke, zero halogen sleeves
• PS - Permasleeve for THT printer
• 3PS - two-sided sleeve
• DRS - Diesel resistant sleeve
• HSNX - Nomex wire and cable tags
• HSCM - Heatex cable markers
• HX - Heatex
• 2HX - double sided Heatex
• DSTHT - DuraSleeve printable inserts
• 2FR - double sided B-344 with 2:1 ratio
• 3FR - double sided B-344 with 3:1 ratio
• 3HT - double sided B-345 with 3:1 ratio
• 2HT - double sided B-345 with 2:1 ratio
• DT - Direct Thermal

Applicators


• WRAP - Wraptor/A6500 labels
• A55 - Flag labels for the A5500
• SA - sleeves for sleeve applicator (ASAP/BSP45)

3rd Party Printers


• LAT - Laser printers
• JET - Inkjet printers
• DAT - Dot-matrix printers

Portable


• M71 - BMP71, BMP61, M611 (see product page to confirm)
• BM71 - Bulk box material for BMP71, BMP61, M611 (see product page to confirm)
• M61 - BMP61, M611
• M6C, M6, BMC, BM - BMP61, M610, M611, BMP71, M710 (Refer to BMP61 / M610 / M611 / BMP71 / M710 - Naming Conventions and Compatible Labels and Ribbons for compatibility with each printer)
• M7C, M7, BM7C, BM7 - BMP71 and M710
• M - BMP41 (if less than 1” wide), BMP51/53
• MC1 - 1” continuous for BMP41, BMP51/53
• MC -  continuous for BMP41 (if less than 1” wide), BMP51/53
• M21 - IDPAL, LABPAL, BMP21 (except .25” media), BMP21-Plus, BMP21-LAB, M210, M211
• M4 - BMP41, BMP51 and M511
• M4C - BMP41, BMP51 and M511
• M5 - BMP51 and M511
• M5C - BMP51 and M511

Obsolete Parts:

• XPS - Permasleeve for IDXPERT, LABXPERT
• XSL - Self-lam for IDXPERT, LABXPERT
• XC - Continuous for IDXPERT, LABXPERT
• X - Die-cut for IDXPERT, LABXPERT
• PSPT - Permasleeve for BMP61, BMP71, M611,TLS2200, PC-Link
• PTL - Die-cut for BMP61, BMP71, M611,TLS2200, PC-Link

THT Die-Cut

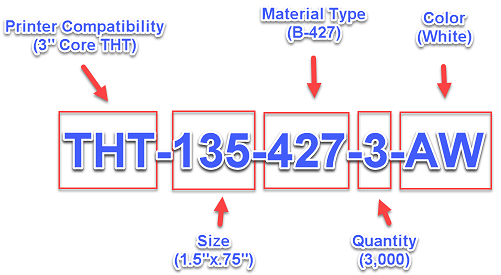

The 3” core THT die-cut media type follows the same convention, with the exception of some specialty materials. The naming convention indicates size, media type, quantity, and color.

• Media Type - Indicated by “THT” for 3” core thermal heat transfer printers.
• Size - Size is indicated numerically following the prefix.

• Material Type - Media type is indicated in the suffix, with the exception of some specialty materials.
• Quantity - Quantity is indicated by a decimal or whole-number suffix.
• Color - Blank means white, colors will be indicated in a 2-character suffix following the quantity.

  Other Examples:

• THT-135-427-10 - Same size, material type, quantity of 10,000 in white color.

THT Continuous

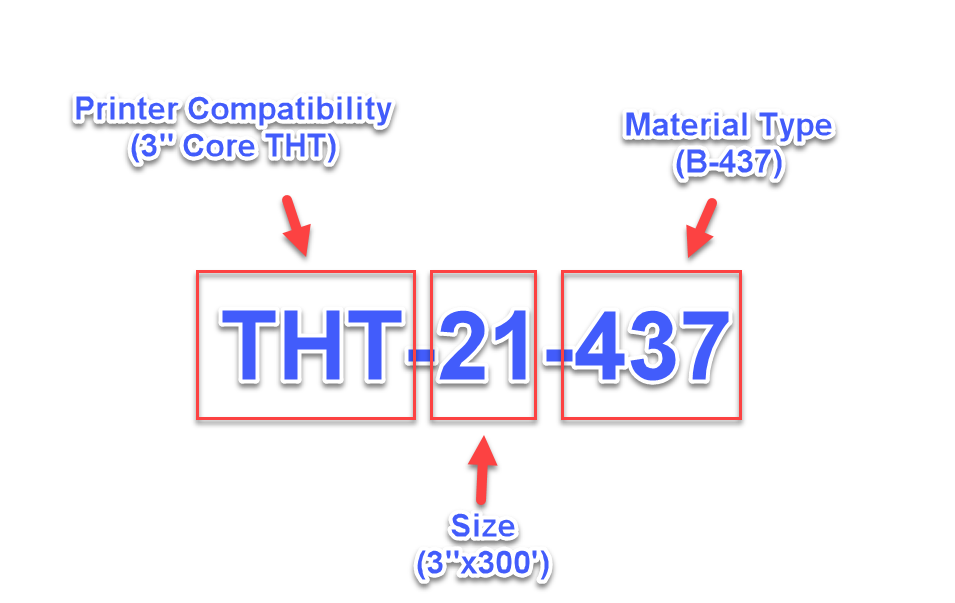

The 3” core THT continuous media type follows a very similar convention to die-cut, with the exception of quantity indication. The naming convention indicates size, material type, and color.

• Media Type - indicated by “THT” for 3” core thermal heat transfer printers
• Size - size is indicated numerically following the prefix
• Material Type - material type is indicated in the suffix following the size
• Color - Color is indicated as a suffix following the material type

  Other Examples:

• THT-21-437-YL - Same size and material in yellow color.

Permasleeve

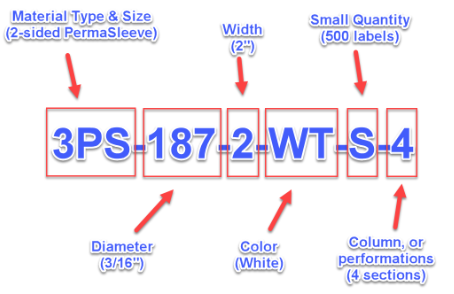

The PermaSleeve naming convention indicates diameter, width, color, roll size, double-sided, shrink ratio, media type, and perforations (columns).

• Quantity - Blank for standard, S for small, J for large.
• Size - Size is indicated in diameter and printable width when label is on the liner.
• Double-sided - Double sided is indicated by a “3” or “2” prefix.
• Shrink Ratio - 3:1 shrink ratio is indicated by a “3” prefix, 2:1 shrink ratio is indicated by a “2” prefix.
• Color - Color is indicated by a 2 character suffix (WT, BL, OR, PK, GR, GY, RD, BL, BR, VT).
• Material Type - Material Type is indicated in the prefix (PS - B-342 polyolefin, HT - high temp b-345, FR - B-344 fluid resistant, LSZH - B7641 Low Smoke Zero Halogen, HX - B-7642 Heatex polyolefin, DR - B-7646 diesel resistant.

Other Examples:

• 3PS-187-2-WT-S - Same diameter, width, color, quantity, but not segmented into 4 sections.
• 3PS-187-2-WT - Same diameter, width, color, quantity is blank means roll contains the standard quantity (2,500).
• 3PS-187-2-WT-J - Same diameter, width, color, quantity “J” means 10,000 labels/roll.

Raised Panel

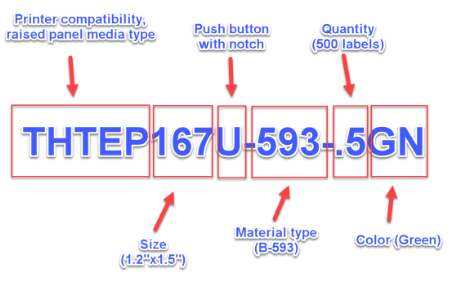

3” core raised panel media has a “THTEP” prefix. The naming convention indicates size, if a notch exists in the media, material type, quantity, and color

• Size - Size is indicated numerically following the THTEP prefix.
• Push button with notch - This is indicated by a “U”
• Material Type - This is indicated in a suffix following the size and notch designation.
• Quantity - This is indicated as a decimal or whole number value.
• Color - This is indicated in a 2 character suffix in the same grouping as quantity - (YL, BK, GN, RD, YL, SL).

Push button with notch, indicated by a "U" in the part number.
  Other Examples:


• THTEP-167-593-.25RD - Same size, but does not include push button notch, contains quantity of 250 and red color.
• THTEP-168-593-.5 - 1.2"x1.9", does not include push button notch, quantity of 500, white (no color).

Other Suffixes


ANSIDA, ANSIWA:  Labels have pre-printed, ANSI-Compliant Danger and Warning Headers

OSHADA, OSHAWA:  Labels have pre-printed, OSHA-Compliant Danger and Warning Headers

SC - 1” Small core for BBP11/12
2S - a suffix found on portable media to indicate a perforation.
