Download the M511 Driver

Important: DO NOT plug in the USB cord until you are prompted to do so.

  1. Download the latest driver on BradyID.

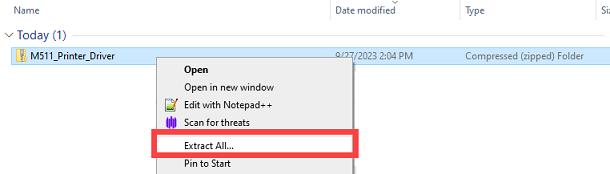

  1. Right-click the zipper folder and Extract All.
 Extract All.png

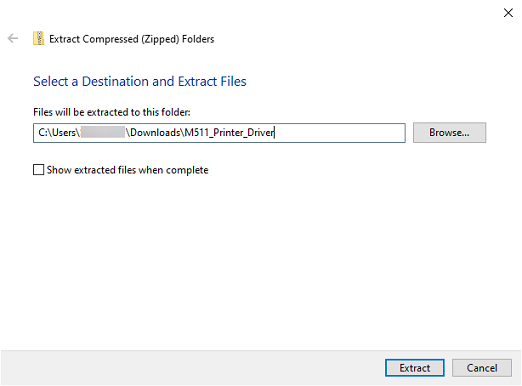

  1. Select the location to extract the folder and select Extract.
 Extract all location.png

  1. Double-click the extracted folder.
Folder location.png

  1. Right-click the M511_Printer_Driver file and select Run as Administrator.
Run as administrator.png

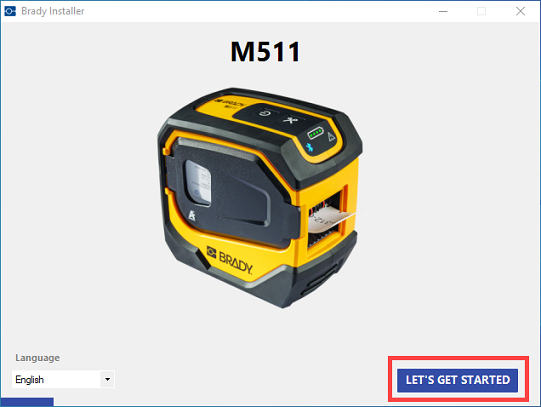

  1. Select LET'S GET STARTED.
Let's get started in the lower right-hand side of the screen

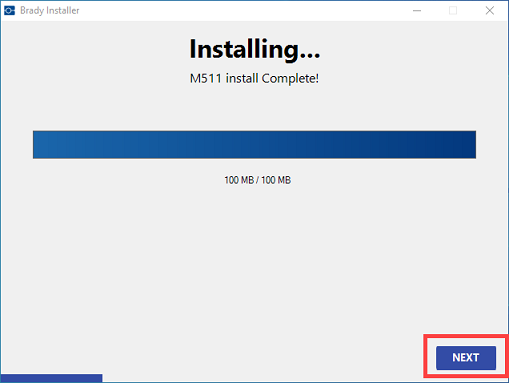

  1. Select Next once the screen says M511 install complete.
Install complete

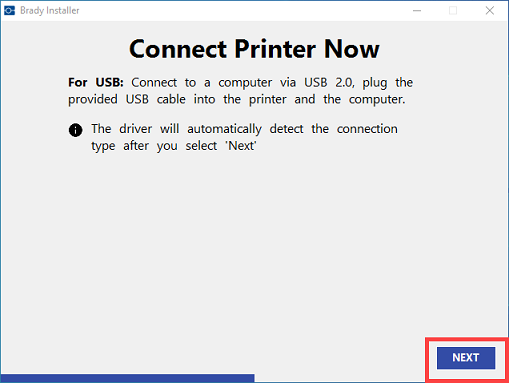

  1. Connect your printer to your computer and select Next.
Connect printer now

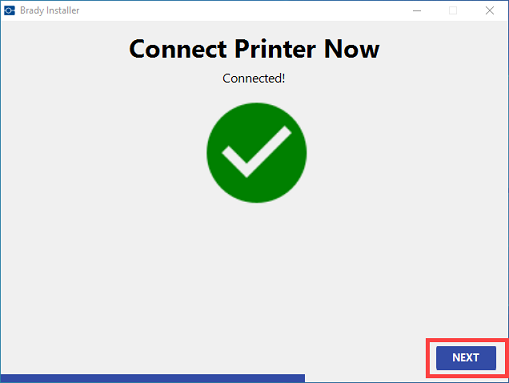

  1. Select OK when the Connected message displays. If you do not receive the green checkmark, try to connect again.
Connect printer now_OK

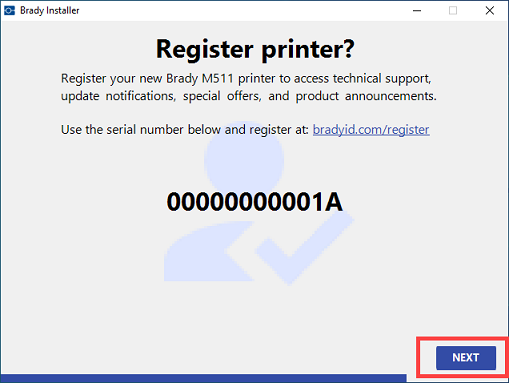

  1. Select the blue hyperlink if you have not registered the printer. Select Next.
 Register printer_Resized.png

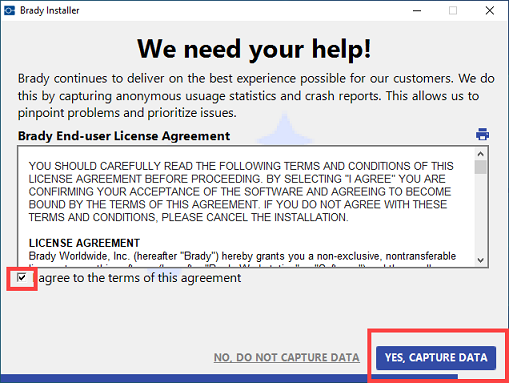

  1. Select the checkbox for "I agree to terms of this agreement" and select Yes, Capture data.
We need your help

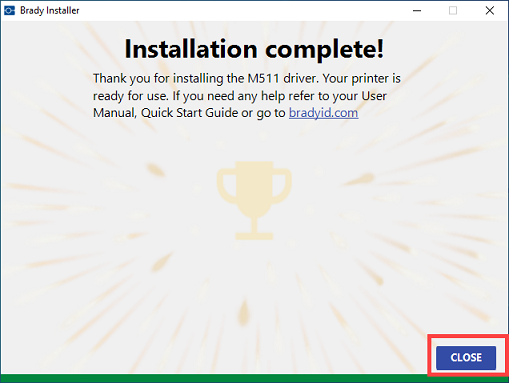

  1. Select Close on the Installation Complete page.
Installation complete_ok.png
