J7300 - Print a Test Label

« Go Back

Content


Article Number000013708
TitleJ7300 - Print a Test Label
Body

In order to print a test label, you must have a 2.95" wide label installed in the printer. If you do not have the correct label installed, the Print Error message will display.


  1.  Select Settings.

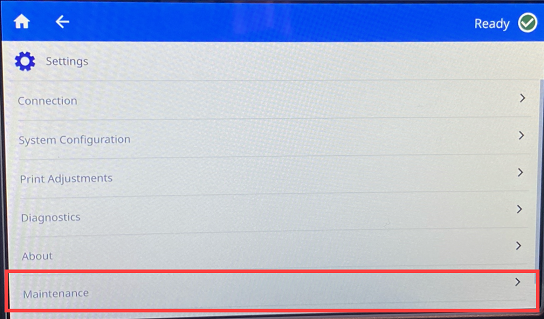

  1. Select Maintenance.

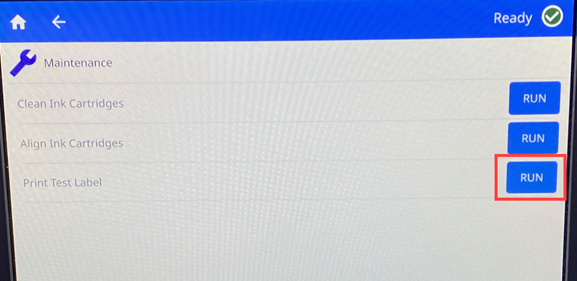

  1. Select Run for Print Test Label.
Print Test Label_Resized.png

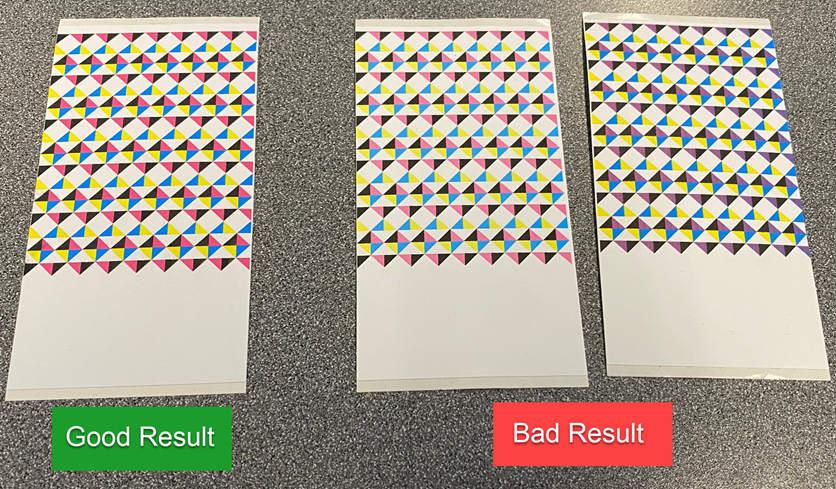

The label will print with pink, blue, yellow, and black. If the printed label is missing a color, the color is faded or the color does not match the label on the far left, additional troubleshooting is required:




URL NameJ7300-Print-a-Test-Label
