| Body | Print Settings
- Turn the printer on and connect the printer to the computer with the USB cord.
- If the Status Monitor does not appear, search for Brady Status J1000 on your computer.

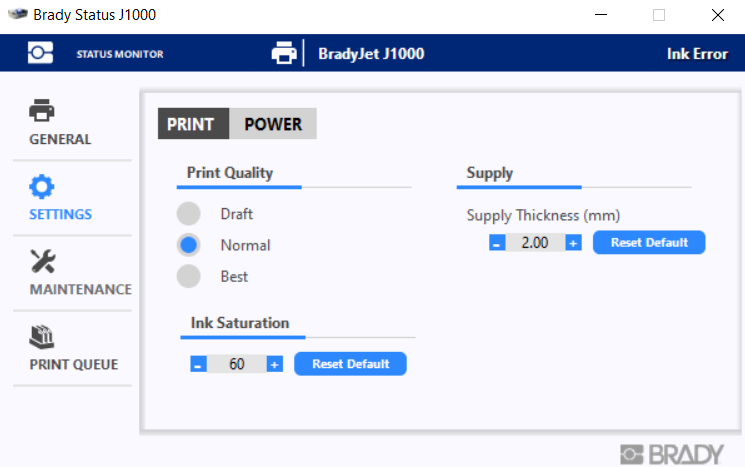

- Select Settings on the Status Monitor.
- Adjust the settings as needed.
- Select the radio button for the applicable Print Quality.
- Select Reset Default to reset either the Supply or Ink Saturation back to the default settings or select the plus/minus to change the value.
Print Quality
- Draft: 300 x 300 dpi. Uses the least amount of ink, but with lower resolution.
- Normal: 600 x 600 dpi.
- Best: 600 x 1200 dpi. Highest print quality, but longer print time and uses more ink.
Supply
The print thickness is set to 2 mm by default.
- If the setting is too high, the print quality can be affected.
- If the setting is too low, this can cause the printhead to strike the card during printing.
Ink Saturation
The default ink saturation is 60.
- If the print is too light, increase the saturation.
- If excessive ink is being applied, decrease the saturation.
