Body | Using Setup Sheets

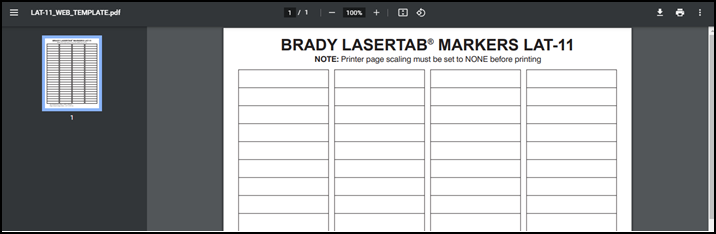

Set Up sheets are not intended to be used as editable templates in which the user enters data. These sheets print representations of the label dimensions onto standard office paper. This allows users to test print position and calibration using relatively inexpensive paper before printing to the physical label sheets.  1. Download JET or LAT setup sheets for your specific label part using the below links:
2. Open Brady Workstation and choose your JET or LAT labels: Custom Designer Pro - Selecting LAT and JET Label Parts 3. Create your label.4. Load your Setup sheet into the printer and note how the paper was loaded (rotated, or upside down or face up, etc).5. Print the label.6. Repeat and make adjustments until you get the setup sheet to print in the area you want then load your LAT or JET tab sheets in the same manner.
- Note: Brady no longer manufactures JetTab™ series polymer coated general identification cloth label sheets. The items listed below will be permanently obsolete upon existing inventory draw-downs. Please consider other alternative Brady products such as THT printable general identification and wire marker labels, or pre-printed cards. See attached document for more information.

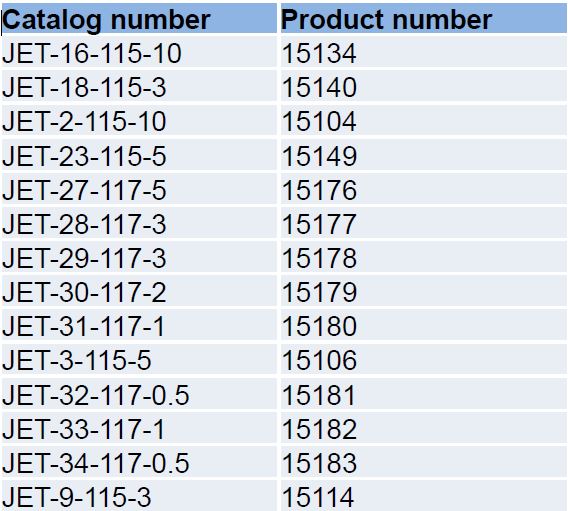

Affected Materials:
See Also
Catalog number Product number JET-16-115-10 15134 JET-18-115-3 15140 JET-2-115-10 15104 JET-23-115-5 15149 JET-27-117-5 15176 JET-28-117-3 15177 JET-29-117-3 15178 JET-30-117-2 15179 JET-31-117-1 15180 JET-3-115-5 15106 JET-32-117-0.5 15181 JET-33-117-1 15182 JET-34-117-0.5 15183 JET-9-115-3 15114 |
|
|---|
