How to Repeat Lines to Fill for Wire Marker Labels

The "Fill label" option copies the text into each available line on the label.

  1. Click into the top line and enter text. Refer to Text Labels - Create a Label File for more information on creating a label.

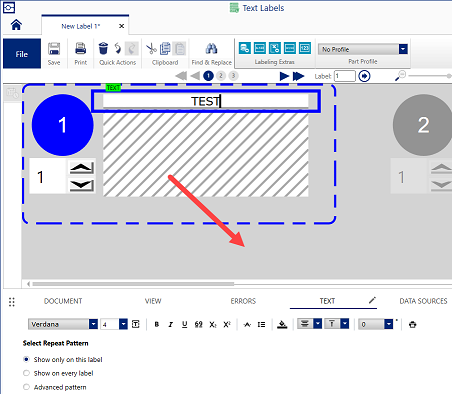

  1. Click into the gray area to get the Document tab.
Click in gray

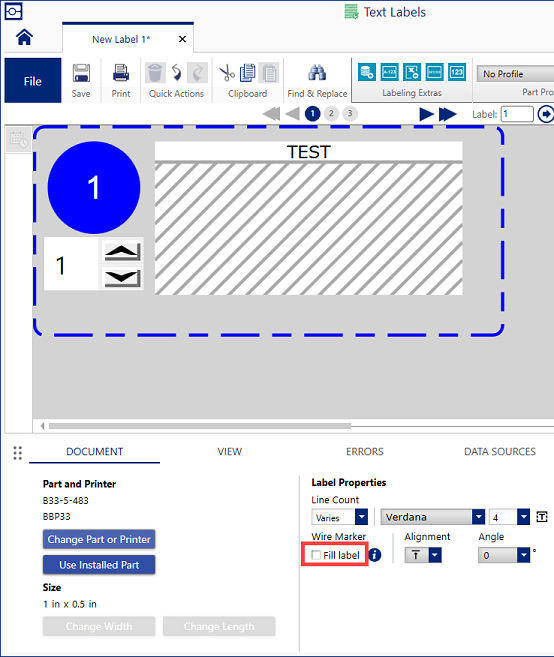

  1. Click the Fill Label box to add a checkmark.
Note: Wiremark mode will also repeat blank lines.

Fill Label

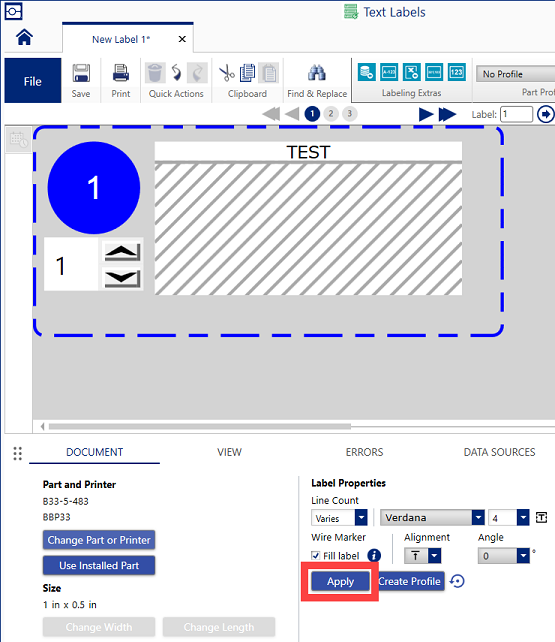

  1. Select Apply.
Fill label_Apply

  1. The lines repeat as many times as the label size, font and font size allow.

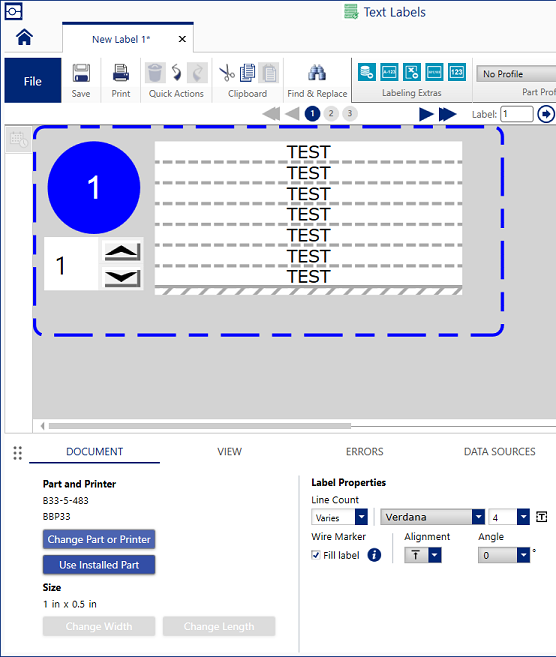

Fill label_Wire Marker
Example of Verdana at 4 pt font

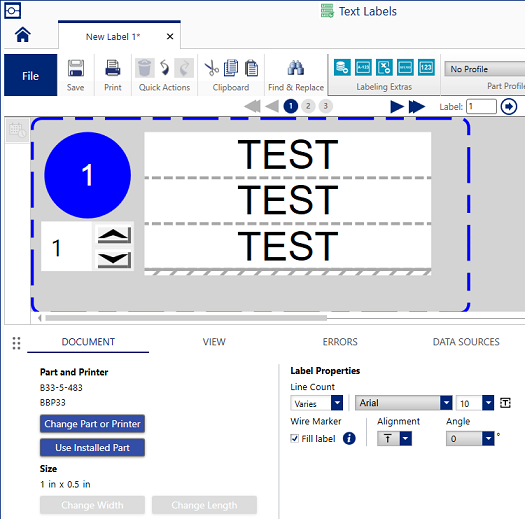

Fill label_Wire Marker_Font 10
Example of Arial at 10 pt font
