Article Number000012068
TitleS3100 - Configure a WiFi Direct Connection
Body
This information can be found on page 18 of the S3100 User Manual.

Setup the S3100 for WiFi Direct

A WiFi Direct connection allows the printer to communicate wireless directly with a PC, this method may be useful when the S3100 cannot be authenticated to your network. Enabling WiFi Direct disconnects any currently connected WiFi connection.

Note: The default password for WiFi direct is 1234567890.

  1. Select Menu.

  1. Select Setup.
  1. Select Network.
System setup_network_Resized.png
  1. Select Wi-Fi.

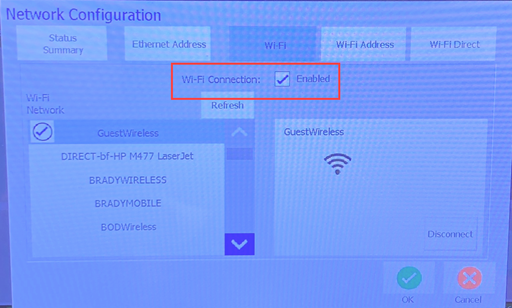

  1. Next to Wi-Fi Connection, select the Enabled check box.
Network configurations_WiFi_Enabled_Resized.png

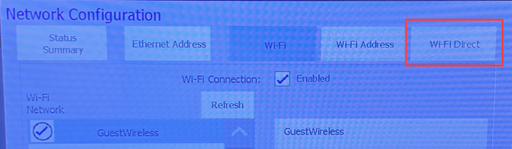

  1. Select Wi-Fi Direct.
WI-FI direct tab_Resized.png

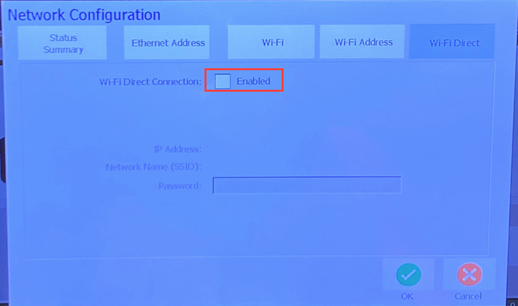

  1. Next to WiFi Direct Connection, select the Enabled check box. The printer displays its IP address and network name. When you connect to the printer from your computer or mobile device, you will select this name or IP address.
Wifi Direct_Enabled_Resized.png

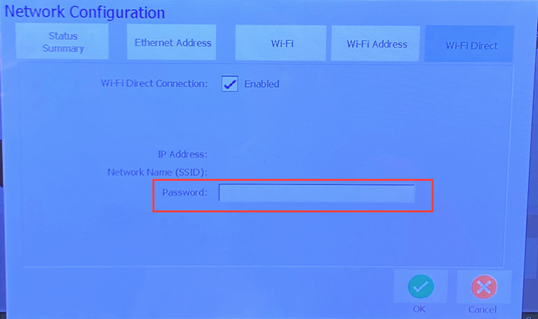

  1. Enter a password for the Wi-Fi Direct network. This is the password you will enter from your computer or mobile device when you connect to the printer.
Wifi Direct Enabled_Password_Resized.png

  1. Tap OK.
