Brady Workstation - How To Place Text & Objects That Will Be Printed On Every Label
Body
How To Place Text & Objects That Will Be Printed On Every Label When Other Fields Will Automatically Change On Every Label (date code, sequence / serialization, imported data) in a Brady Workstation Label file (not Template).
Note: With the Spring '21 update of Brady Workstation, this feature is now located under Select Repeat Pattern. In previous versions of Brady Workstation this feature was called "object copies": How to Update Brady Workstation
The Oject Copies Feature
The Select Repeat Pattern options allows the user to designate any selected object(s) to appear on every label. This is needed when some data will stay the same on every label while other object(s) will autofill with a variable object (date code, counter / sequence / serialization or import). And only in Label files (*.bws) and not Template files (*.bwt) because with templates, all "Static" objects will automatically repeat on every label and all "Placeholder" objects will be populated when creating a file from a template. Templates vs Label Files in Brady Workstation
Note: Object Copies is only available in the full version of the Custom Designer application and is not available in Custom Designer Lite.
Configuring Label Objects to Populate On Every Label

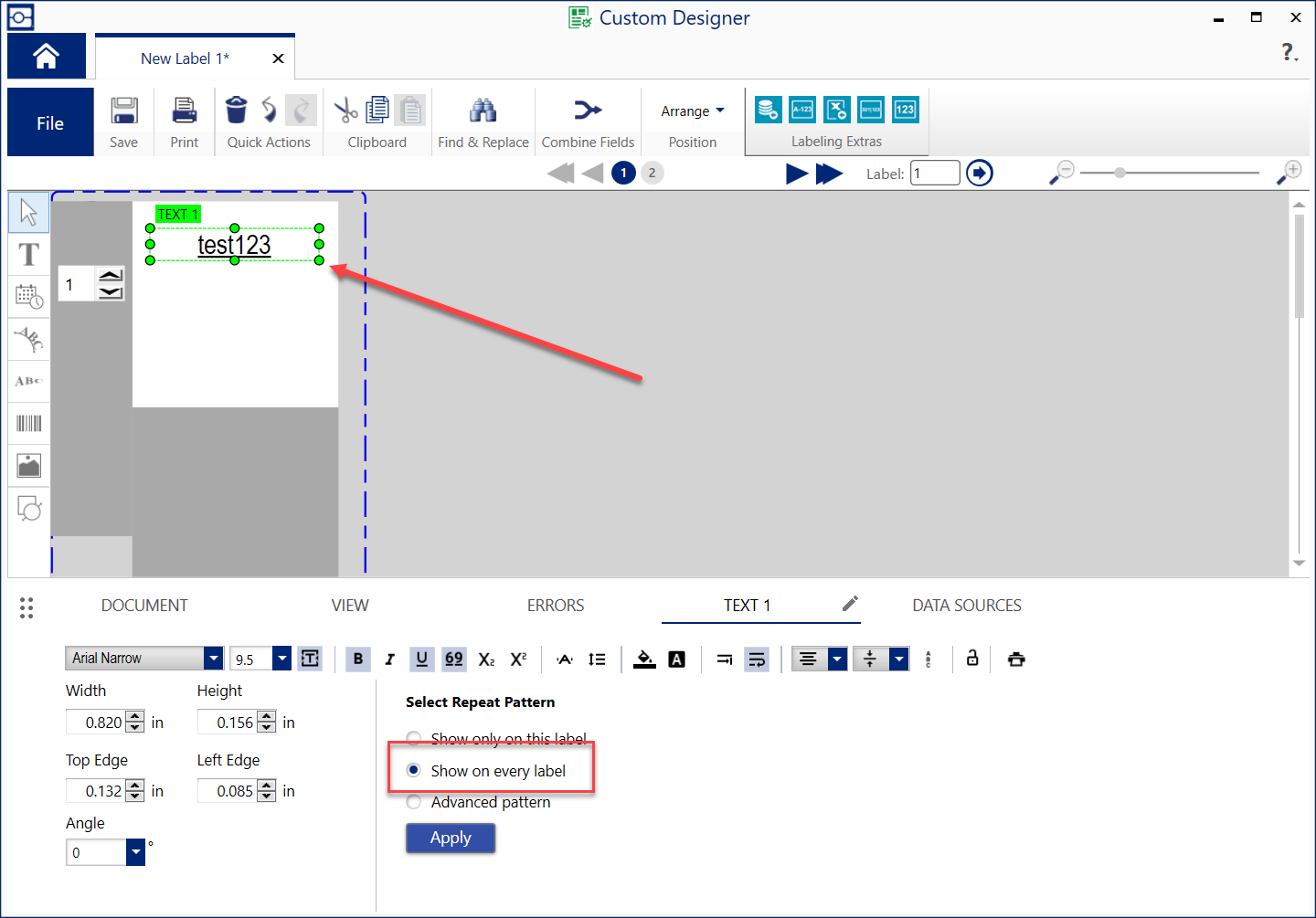

1. Create content on the first label, then click the Show on Every Label radio button. Click Apply.
Note: Press the Tab key to generate additional blank labels with the copied objects
