Frame a Label
This procedure places a frame (border) around the entire label. The following conditions apply:
- Fixed-size labels: When using continuous or die-cut supplies, the frame is applied to the outer perimeter of the printable area. If changed, the frame size changes with the label size.
- Auto-sized labels: When objects determine the label length, the frame is sized to fit the objects on the label when the frame is applied. If the label size changes after that, the frame is not resized. You must reapply the frame to the label after making a size change.
Place a frame around the label:
Note: If you are not working with a fixed-length label, you must have at least one object on your label before you can place a frame around the label.

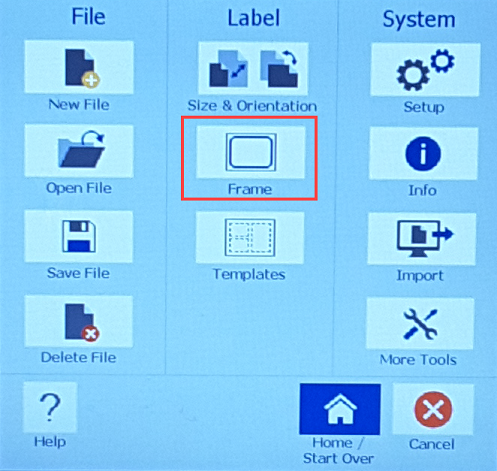

- Select Menu.
- Select Frame in the menu list.

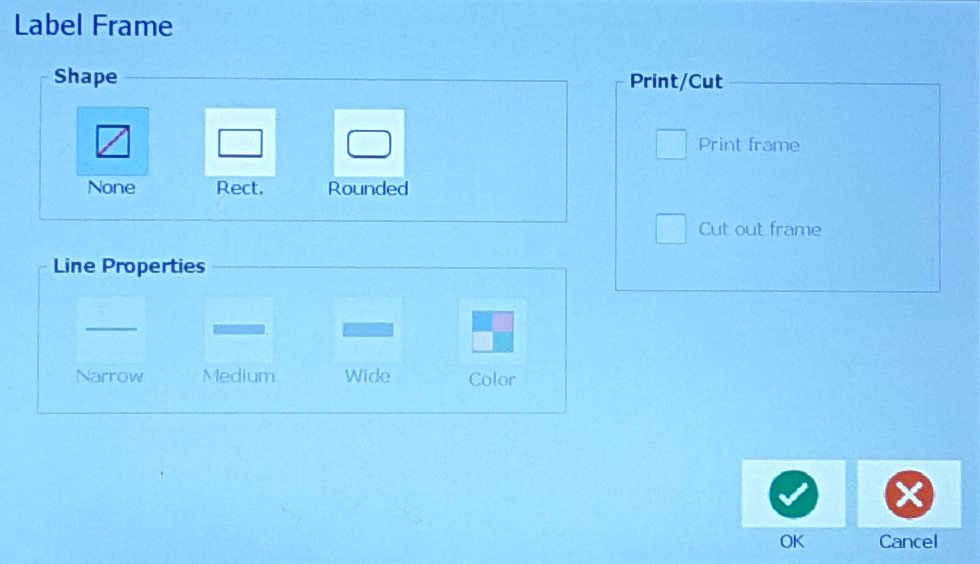

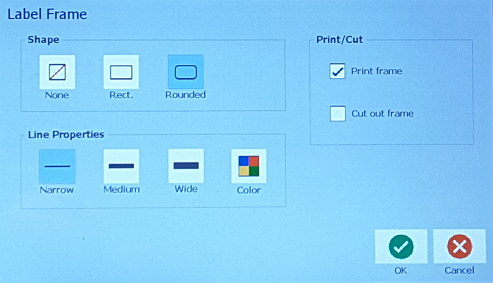

- Select the Frame shape and the Frame width.
Note: Line width options are available only when the rectangle or rounded rectangle frame shape is selected.
- When your changes are complete, select OK. The changes are applied.
Note: You can also had a frame after you add text or an object by selecting More Options until you are on the Frame options.
