Bulk Label Roll Adapter

The Bulk Label Roll Adapter is available in North America for the A6200.

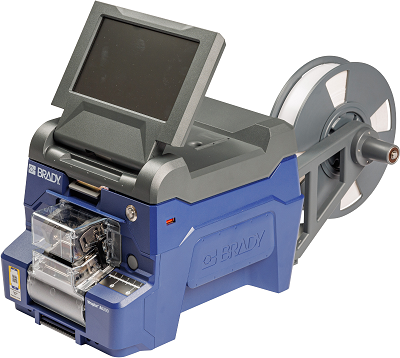

A6200 with Bulk Adapter


If you purchased the A6200 in 2023, the printer may already be compatible. In order to tell if your printer is compatible, there are 3 screw holes and a label slot on the back of the printer.

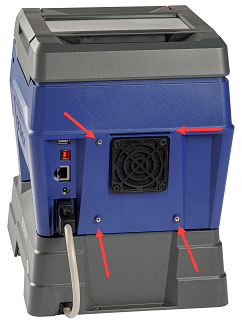

Back of A6200

If the back of your printer does not look like the image above, the printer will need to come in for repair. If the printer is out of warranty, the flat rate repair fee applies.  If you would like to add the Bulk Label Roll Adapter, contact Technical Support with the serial number (How to Locate the Serial Number on the A6200) and Request a Repair Authorization for a Brady Benchtop Printer

Important: The repair fee only includes updating the applicator. The fee does not include the cost of the Bulk Label Roll Adapter. You will still need to purchase this adapter separately on Bradyid.com with part number A6200-BULK-ADAPTER.


Bulk Label Rolls

View Bradyid.com to purchase bulk media rolls.

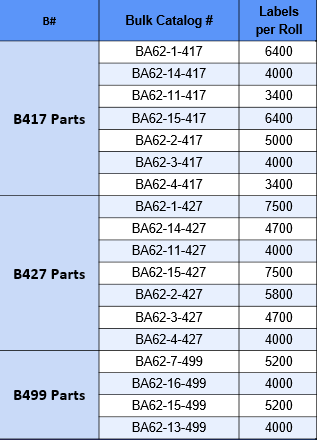

Bulk Part Numbers.png

Note: Estimate of 3 ribbons per bulk label roll.

Using the Rewinder with the Bulk Label Roll Adapter

In order to accommodate the entire bulk label roll, the rewinder will need to be emptied:
A6200 - Remove Spent Label Backing in the Rewinder. The Rewinder holds 69 feet of labels.

Important: Always remove the spent label backing when changing supplies in the printer. DO NOT tape together partial rolls in the rewinder. Too much label backing accumulating on the spool could damage the motor. Monitor the spool in the rewinder and empty as needed.

Example: 1-427 Bulk Labels are 546 feet long.
  • You will need to change the Rewinder 8 times to support the full bulk roll.
  • The ribbon is 150 feet and you will need to change the ribbon 3.6 times per bulk roll.
