Body | This information can be found on page 48 of the i5300 user manual: i5300 User Manual.Note: Frequent jams indicate adhesive buildup or label debris has accrued in the printing and cutting mechanisms. Proper preventative maintenance can mitigate this: How to Clean the i5300 Printer. If this is occurring frequently on a brand new printer, material age and shelf life may be a factor: What is the Shelf Life for Brady Labels?.Clearing Printer Jams
- Remove all damaged ribbon and/or labels from the printer.
- Check that there is no damage to the printhead, cutter blades, sensors, etc.
- Check whether any cleaning is needed. If cleaning is required, see: How to Clean the i5300 Printer.
- Reload ribbon and labels and clear all error messages.
Clearing Cutter Jams

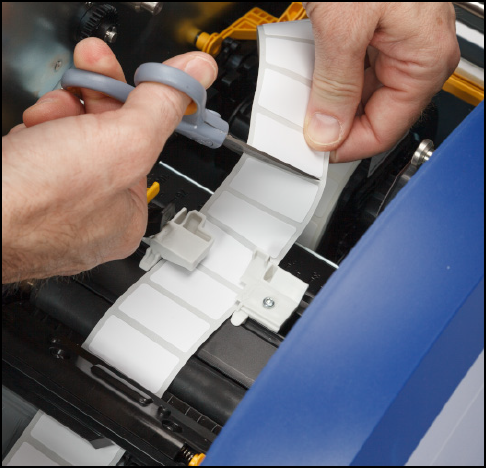

- Cut the supply as shown below.

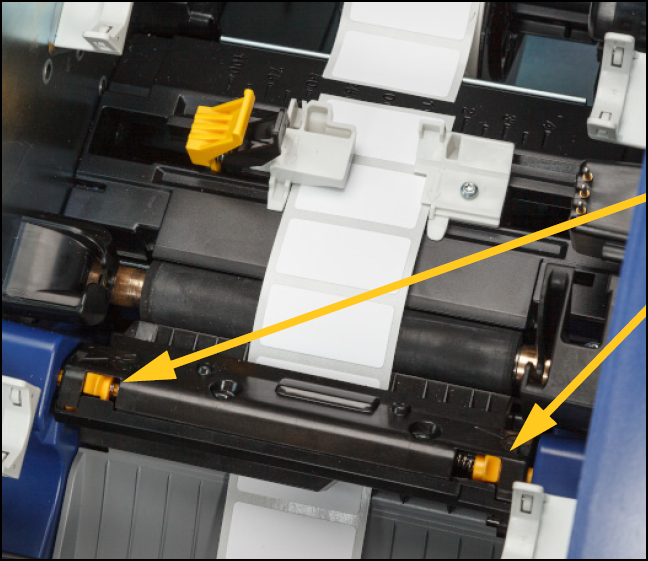

- Squeeze the tabs to release and tilt the cutter module forward and down.

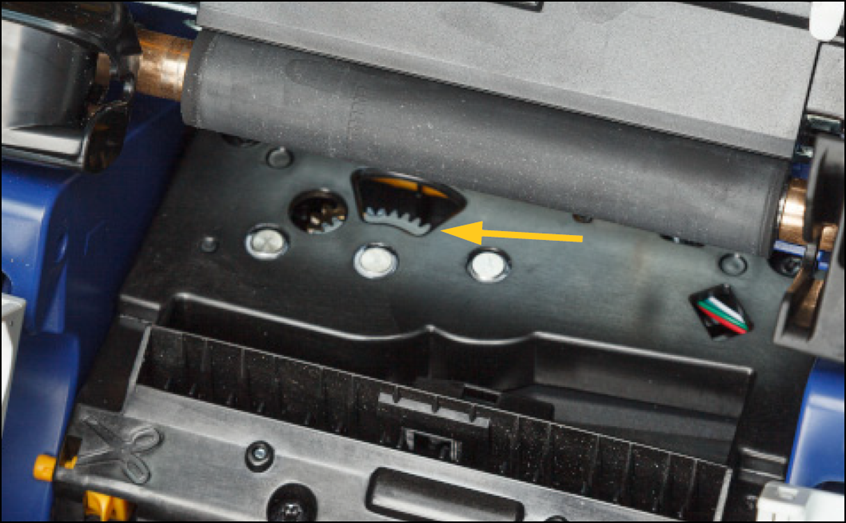

- Rotate the cutter gear counter-clockwise to lower the blade.
- Remove the supply.
- Rotate the gear clock-wise until the blade is no longer visible.

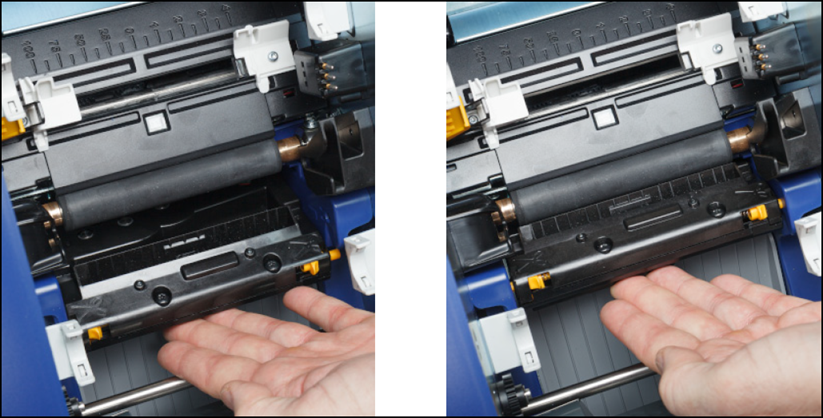

- Lift the enclosed side of the cutter housing until it snaps into its original position as shown below.
|
|
|---|
