| Body | You can change the platen roller for the i5100. See Are PR, IP, i7100 and i5100 Platen Rollers Interchangeable? for more information on what platen rollers are interchangeable.
Change the Platen Roller
- Open the printer cover.
- Lower the control panel.

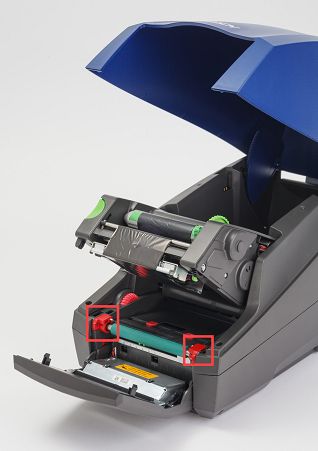

- Press the green button to lift the print module.

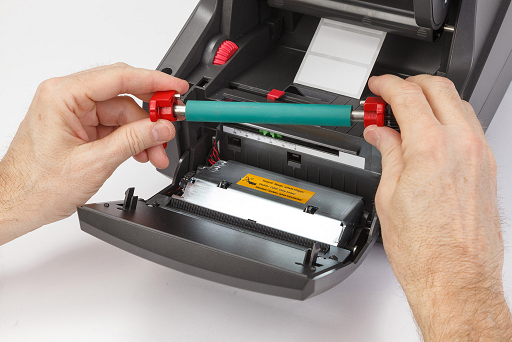

- Lift the platen roller up to remove it from the printer.
- Insert the new platen roller. The red tabs will be facing down and the black gear will be on the right side.
