Issue

The Wraptor or A6500 jams, or does not feed correctly from time to time.


Cause

If the shaft with the orange O-Rings does not turn freely, it will cause tape feeding problems. This shaft has a tendency to clog with adhesive.


Resolution



  1. On the touch screen, tap Load Supplies and then tap Clear Jam.

​​​​​​

  1. Tap Feed Supply and observe whether the labels flow freely on the deflector and O-rings.



  1. If the labels do not flow freely, clean the Label Deflector and O-rings with the swab from the cleaning kit (PCK-6). Do not use other chemicals or cleaning agents

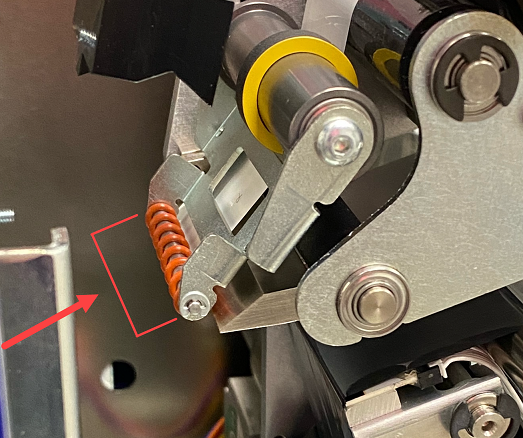

Label Deflector

Note: You can move the O-rings to the side to clean under the surface and move the O-rings back into the grooves.

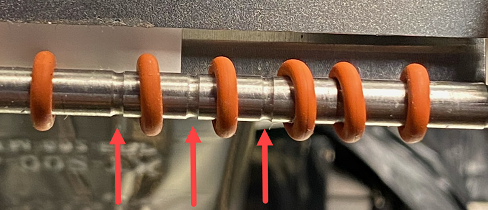

Grooves on the o-ring shaft

​​If adhesive has gotten too deep to clean, contact Technical Support: Global Brady Technical Support Contact Information.

​​
