Print to File with the A6500 (Labelmark Only - Not yet available in Brady Workstation)

This functionality is now available in Brady Workstation as of shell 4.10: How to Use Print to File with the A6500 in Brady Workstation

Changing the driver port to "File" sends the print jobs to a local folder location. This allows saving a .prn file of the job to portable media, such as a USB flash drive. End users can then take this flash drive to A6500 printers that are isolated from any PC or network connection. This feature is not available for the original Wraptor (discontinued), or when printing from Brady Workstation.
  • Note: You must have A6500 firmware version 91188 or higher and printer driver 3.20 or higher.

Print to File Instructions

Driver Configuration

1. If necessary, remove the old driver

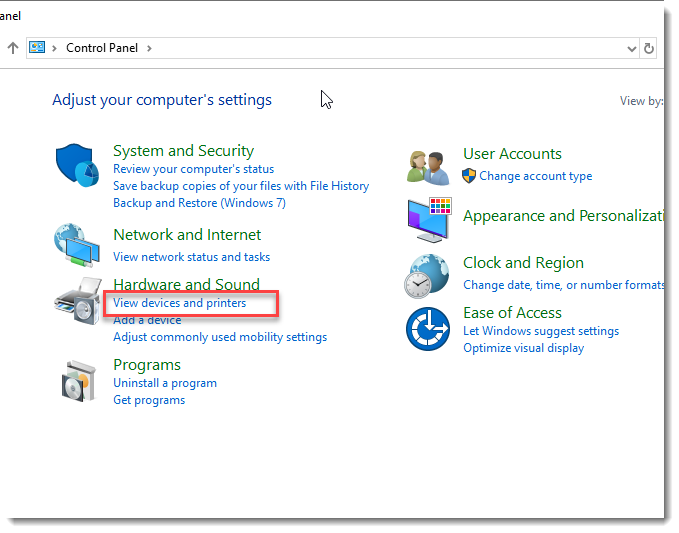

2. Install the July 2018 driver version 3.20 available on BradyID 3. Go to Control Panel > Devices and Printers

User-added image

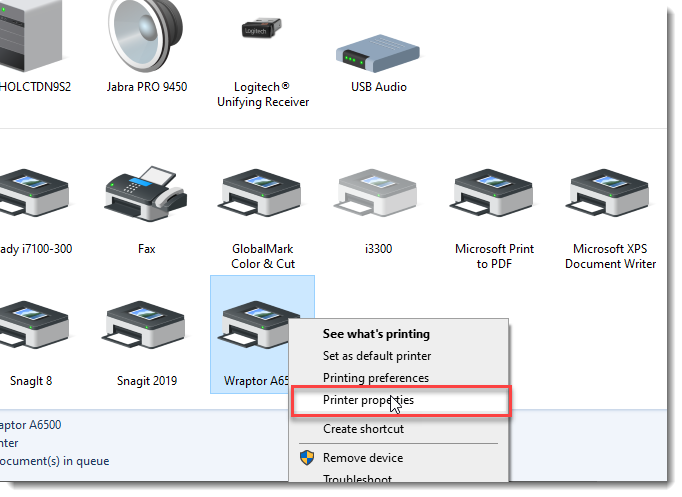

4. Select the A6500 right-click > Printer Properties

User-added image

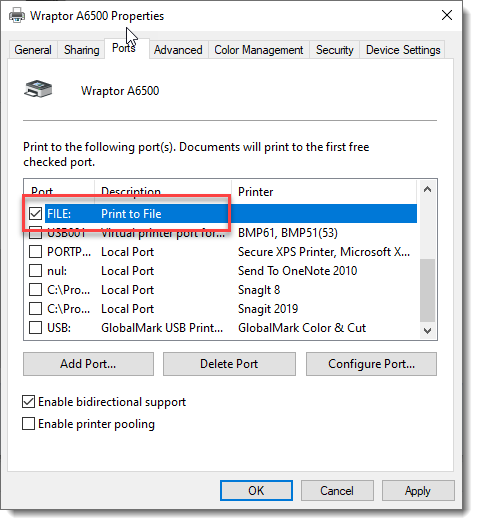

5. Select the Ports tab > Select “Print to File” port and click Apply


User-added image

Create the .PRN Label File

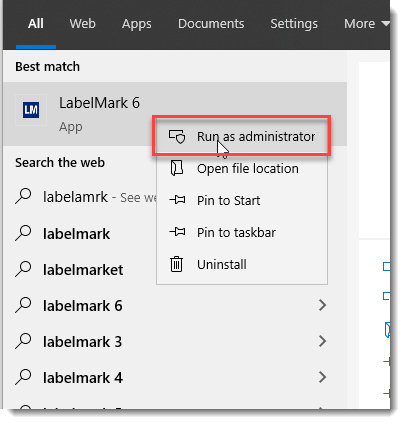

1.  Launch LabelMark 6 as administrator

User-added image

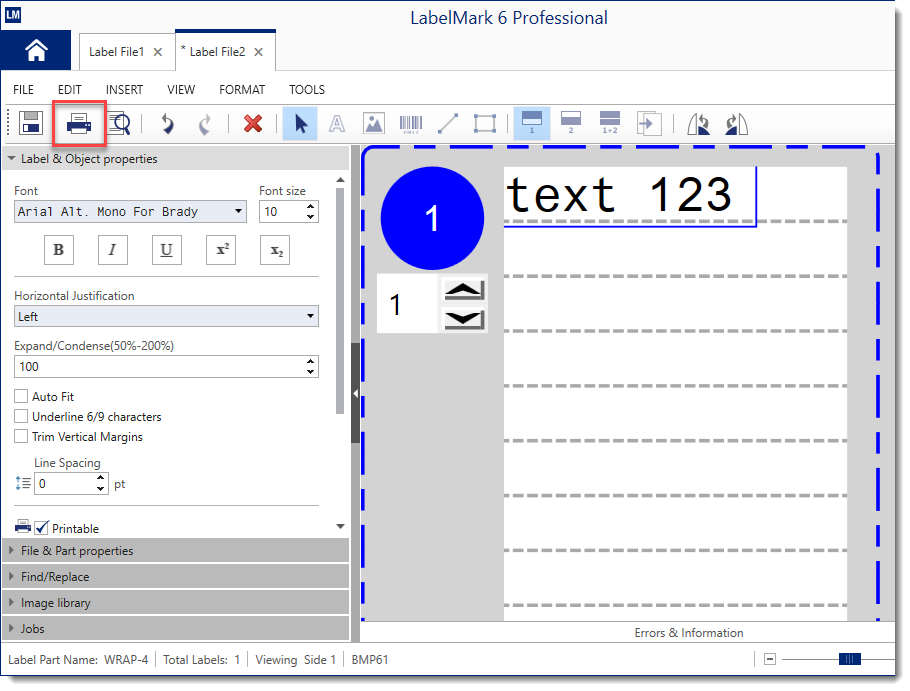

2. Create a label for the A6500

User-added image

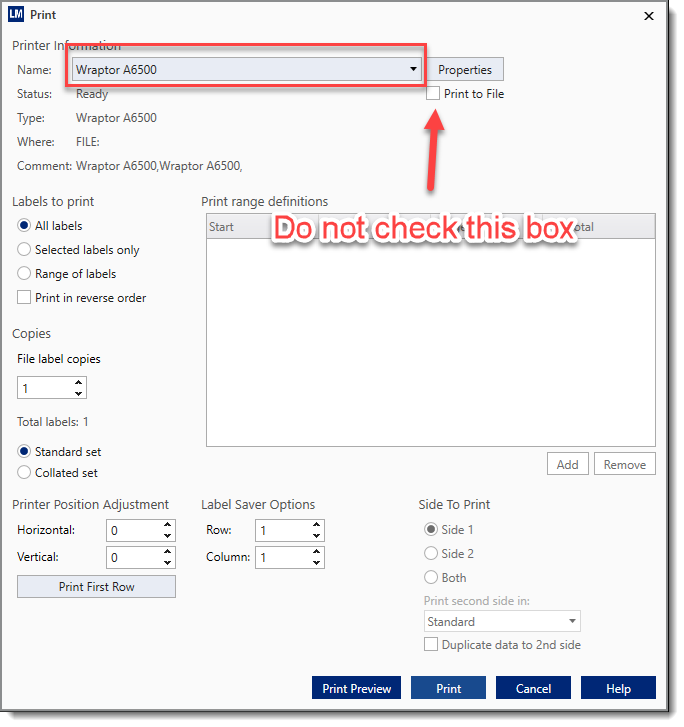

3. Select Print, choose the A6500 driver
  • Note: DO NOT select the Print to File check box
User-added image

4 Click Print

5. Name your label file when prompted

User-added image

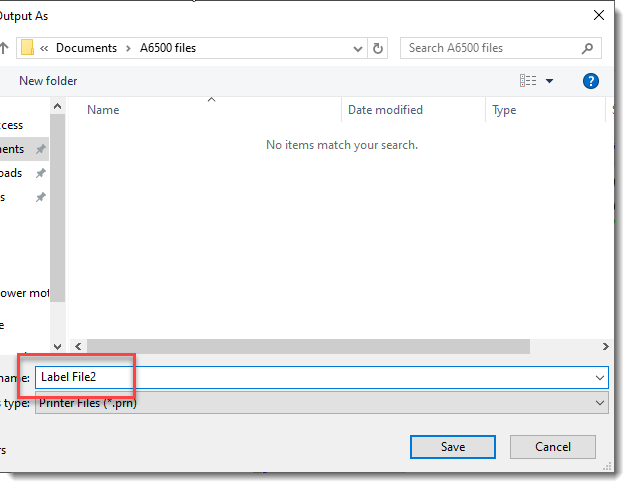

6. Use the same file name in the "Save As" window

User-added image



Transfer the File to the A6500

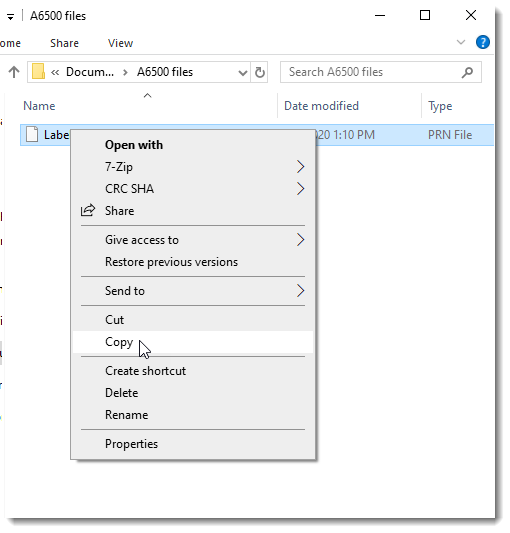

1, Navigate to the location you selected in the "Save As" window
  • Note: If you are using Windows 7, you will need to append the name the ".prn" extension before transferring to external media
User-added image

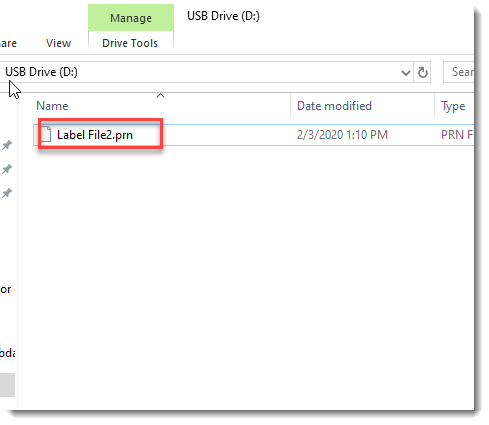

2. Move file onto a thumb drive

User-added image

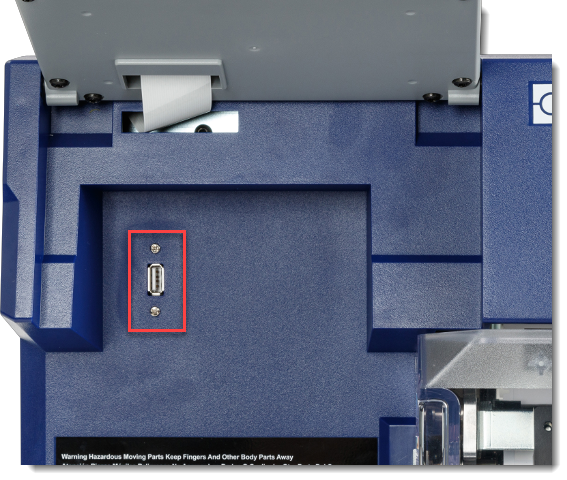

3. Plug USB/thumb drive into the USB port on the front of the Wraptor A6500, under the LCD screen.

User-added image

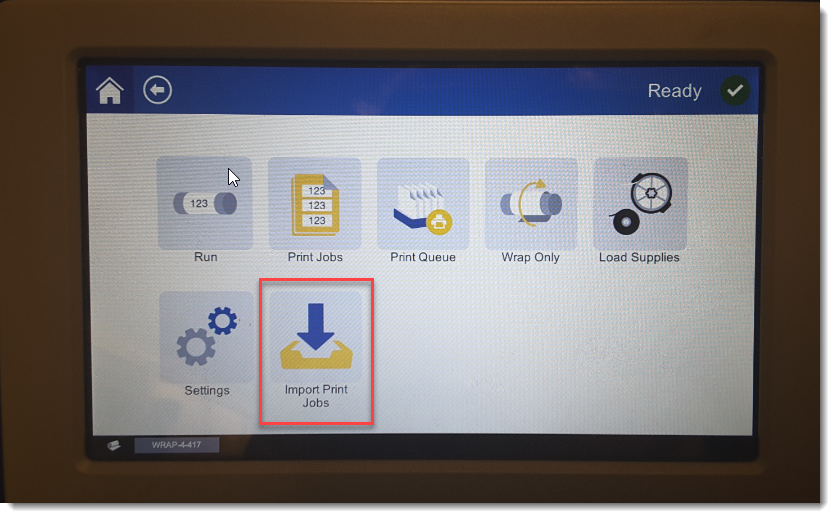

4. An “Import” app will appear on the touch screen once a .prn file is detected

User-added image

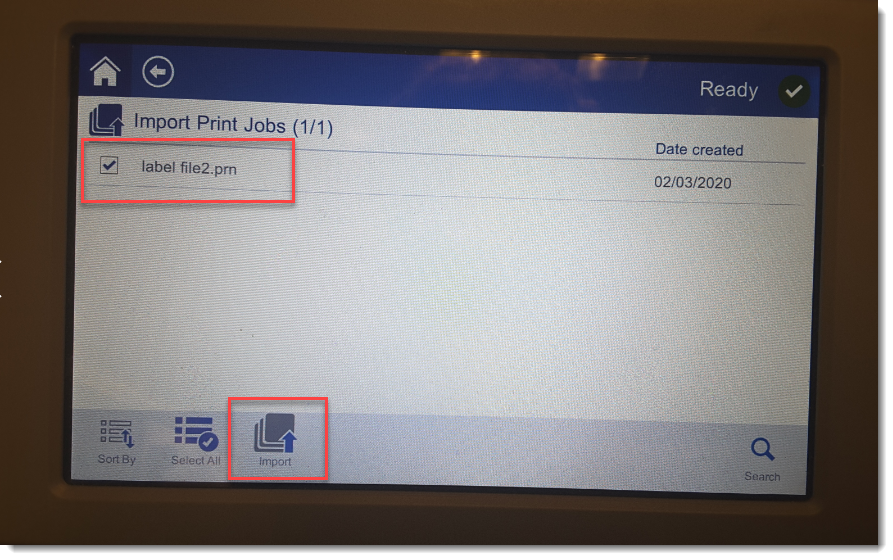

5. Select the file and import


User-added image
