Brady Workstation - No option to Cut at End of Label

« Go Back

Content


Article Number000007275
TitleBrady Workstation - No option to Cut at End of Label
Body
Issue

When opening and printing LabelMark 5 files, the option to "Cut at End of Label" was not available in a previous build of Brady Workstation.


Resolution

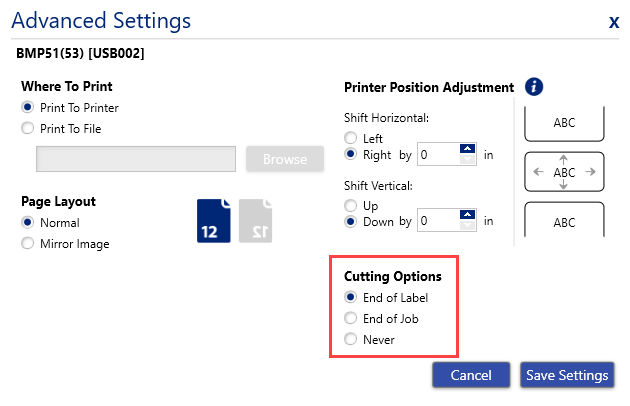

This issue was resolved in a June 2019 update to Brady Workstation. Update Brady Workstation to the latest version: Brady Workstation - How to Update the Software. Cut Options are in Advanced Settings of the Print screen.


NOTE: If Cut At End of Label is not selectable, it is because the label is not at least 0.6" long.  If label length or auto-calculated length is 0.5" or less, it will not allow you to cut after label, only after job.  This is because of the distance from the printhead to the cutter. If 0.5" or less, the cut label might fall into the printer, causing material jams or damage to printer.

If the printer is not connected, Advanced Settings will be disabled.
URL NameNo-option-to-Cut-at-End-of-Label-in-Brady-Workstation
