| Body | Load Labels and Ribbon Only Authentic labels are compatible in the M610 printer model which provides optimum performance: Portable Printers - Brady Authentic Labels.Load Labels
- Open the printer cover by placing your thumb under the tab and pushing it up.

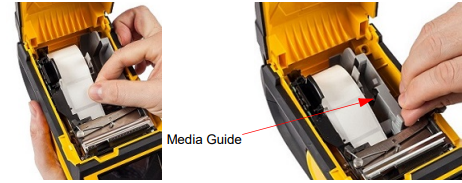

- Slide the media guide to the right.
- With the labels coming over the top of the core, grasp the smart cell handle and insert the labels straight into the smart cell reader compartment, gently pushing until it clicks into place.
- Slide the media guide to the left until it fits snugly up against the label roll and clicks into place.
- Feed the leading edge of the label roll through the guide slots until it stops.
- Close the cover until it snaps into place.
Load Ribbon
- If the locking lever is engaged, flip the lever backward (to the right) to disengage the print head.

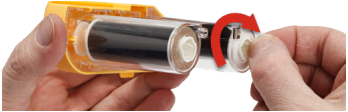

- Remove any ribbon slack by rotating the take-up spool end clockwise.

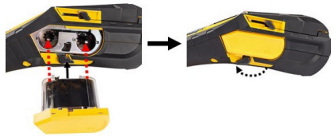

- Slide the ribbon cartridge into the printer until it seats firmly against the metal frame, then flip the print head locking lever forward (to the left) to re-engage the printhead.
