Load the Label Materials

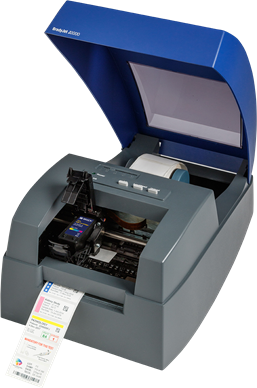

  1. Open the top cover.

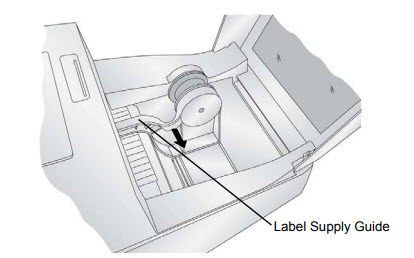

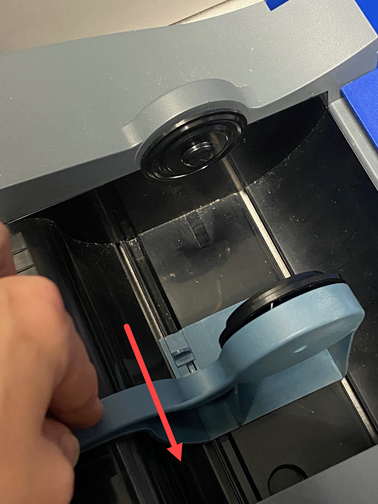

  1. Pull the spring-loaded label supply guide out far enough to fit the label supply.





  1. Remove any shipping tape from the label supply roll to ensure that it can unroll freely, making certain that no adhesive portion is exposed.

    IMPORTANT! Exposed adhesive surface can attach itself to the inner workings of the print mechanism and cause a jam.

    User-added image

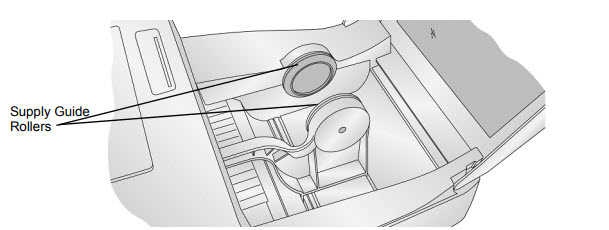

  1. Place the label roll between the supply guide rollers, with the cap on the label roll on the left side as you are facing the printer, and release the spring-loaded supply guide to hold the label supply. The supply guide rollers allow the label roll to move freely

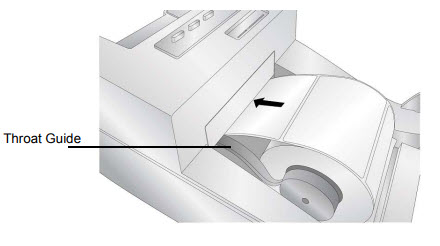

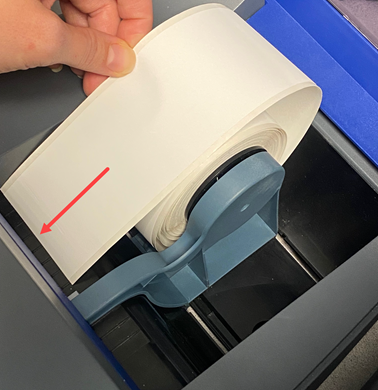

  1. Place the leading edge of the label between the throat guide and the side of the printer.




  1. Quickly continue feeding the labels further into the printer until you feel resistance from the feed rollers.


If the printer is plugged in and on, it will sense the label and automatically feed it through the printer. If the printer fails to feed the label supply, press the load/feed button to manually engage the feed roller while continuing to guide the labels into the printer.

Note: To ensure that the labels are fed straight be sure to push the label supply into the printer quickly until the entire front edge of the label is touching the feed roller. For wider labels use both hands to feed to maintain even forward pressure while you are pushing the labels into the printer.

If the printer is still not feeding label materials please follow the steps in the following article: J2000 - Printer is not feeding labels.





Load the Ink Cartridge







  1. Power on the printer.

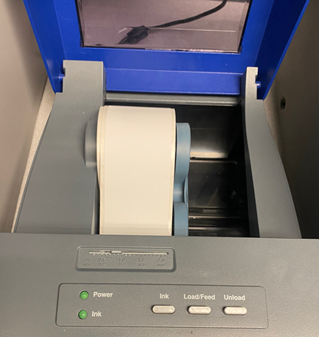

  1. Open the cover.

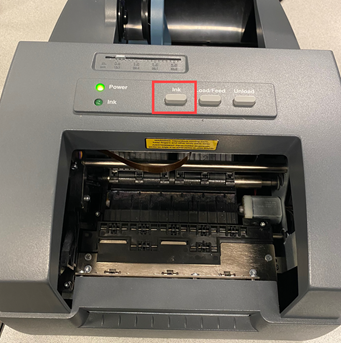

  1. Press the ink button.

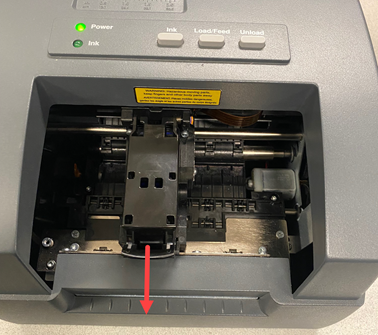

  1. Press down to open the tab on.

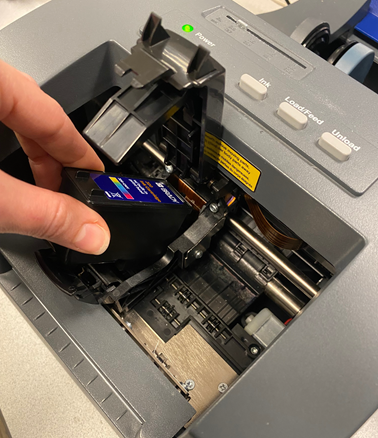

  1. Insert the ink cartridge.



  1. Press the ink button to shuttle the ink cartridge back into position.



  1. Close the printer cover.
