Networking the i7100

Network settings for first-time setup are configured from the printer touch screen.

Note: Wifi connectivity requires an additional accessory - i5100/i7100 - Connecting to WiFi Network

Ethernet configuration

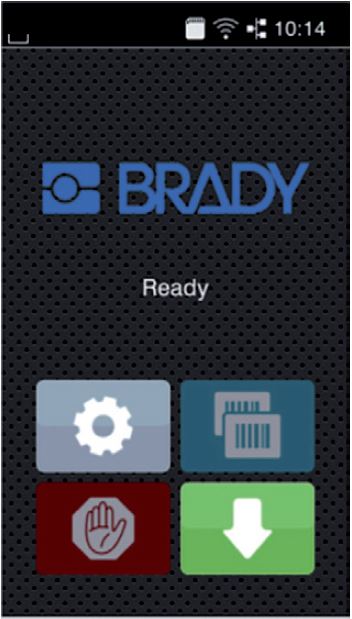

1. From the printer touch screen, press the gray gear icon

User-added image

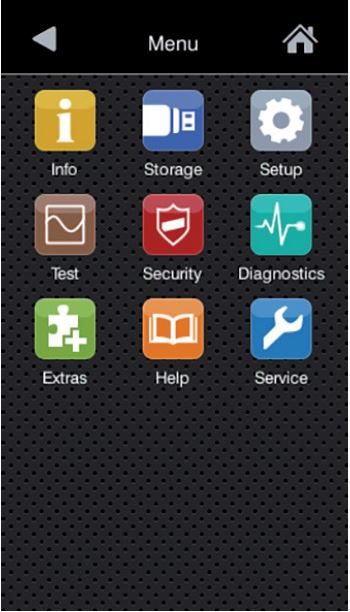

2. Select the small Settings gear icon

User-added image

3. Select the Interfaces icon

User-added image

4. Select Ethernet

User-added image

5. Check the "DHCP" option to have an address automatically assigned to the printer

To assign a static IP, uncheck "DHCP" and enter the following info:

IP Address
Netmask
Gateway info (if necessary)
DNS Server

Next Steps

Install the printer driver with your configured IP address: How to Install the i7100 Driver
If the driver is already installed, you can configure the driver with a new IP port: How to Add a Network Port to a Windows Driver
