Body | Configure WiFi on the BMP61 Using the Brady Network Card UtilityReference this article for troubleshooting network connectivity issues with the BMP61: BMP61 Fails to Connect to Wireless Network
1. If you have not installed the printer driver, download and install the driver as shown in this article: How to Install the BMP61 Driver. This will install the Brady Network Card Config utility required to complete this process.
2. Launch the Brady Network Card Configuration Utility from your desktop.

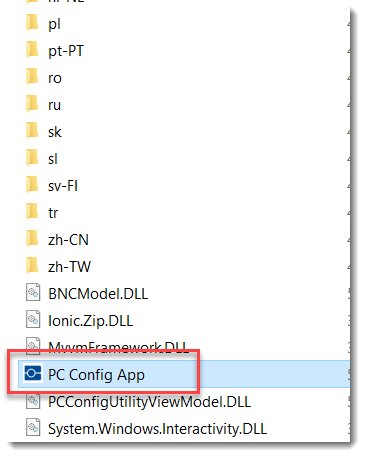

- Note: If you cannot locate or launch the BNC utility for some reason, launch "PC Config App" located in C:\Program Files (x86)\Brady Corporation
 3. The BMP61 should be selected for configuration by default, click OK.
4. Select WiFi Settings.
5. Select your WiFi network from the list, enter credentials as required and click Connect.
How to Connect the BMP61 to a Hidden Network using the BNC Utility
If the network you need is not in the list, it may not be discoverable.
1. Click Others.
2. Select the option for either an Enterprise or Personal network.
3. Enter credentials as required for your selection. If you are not sure about these options, reach out to your IT support or network administrator to complete these settings: Network Security and Authentication Protocols Supported by the BMP61 |
|
|---|
