Import a Graphic in Custom Designer

Custom Designer supports a variety of image formats: Brady Workstation Custom Designer - Supported Image File Formats.



  1. Select the graphic icon in the tool bar.

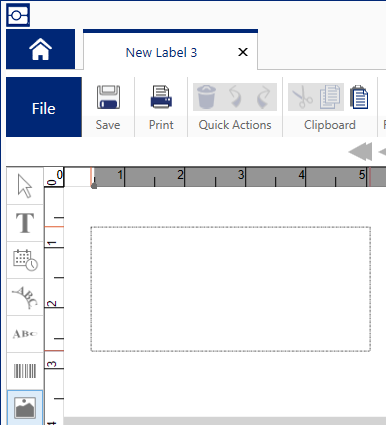

  1. Click and drag in the label to create the size of the graphic.
Click and drag.png

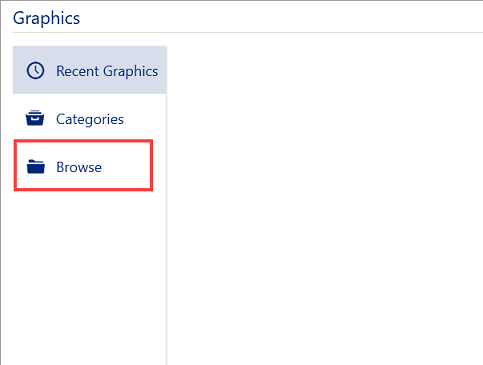

  1. Select Browse.

  1. Navigate to your graphic and double click to import it onto the label.

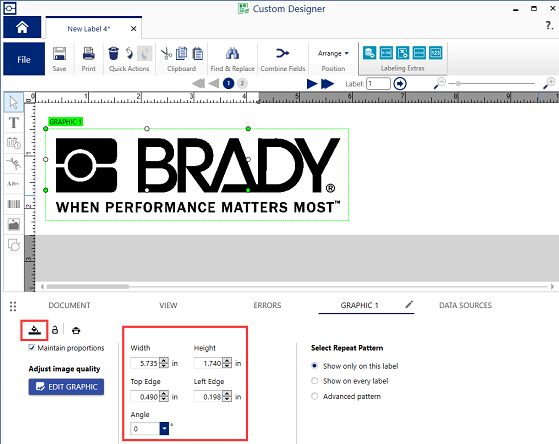

  1. Edit the fill color, graphic size or angle for the graphic, as needed.
Edit graphic properties.png

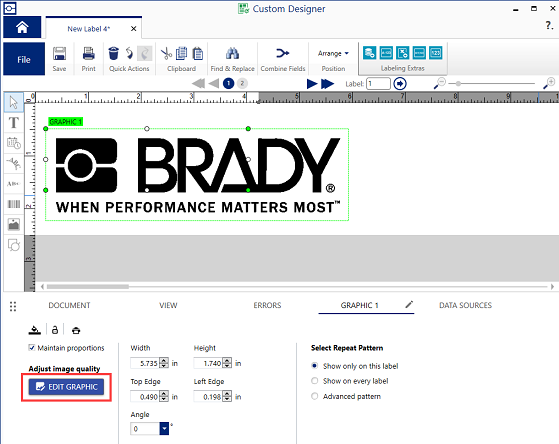

  1. If importing a graphic on a monochrome printer, except the i5300, you will have the option to Edit Graphic.
Custom Designer Edit Graphic

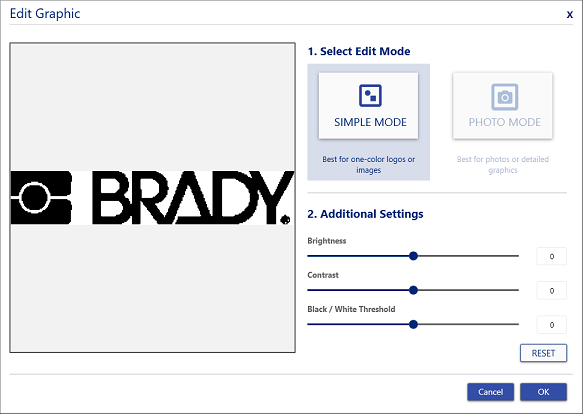

  1. Select Simple Mode or Photo Mode depending on the imported graphic. You will have the option to adjust brightness, contrast or black/white threshold under Additional Settings.
Edit Graphic options

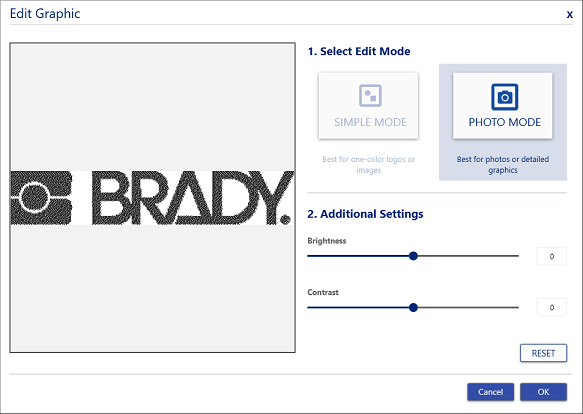

Photo mode
