A6200 - How to Prevent Material Jams

« Go Back

Content


Article Number000012056
TitleA6200 - How to Prevent Material Jams
Body
Issue

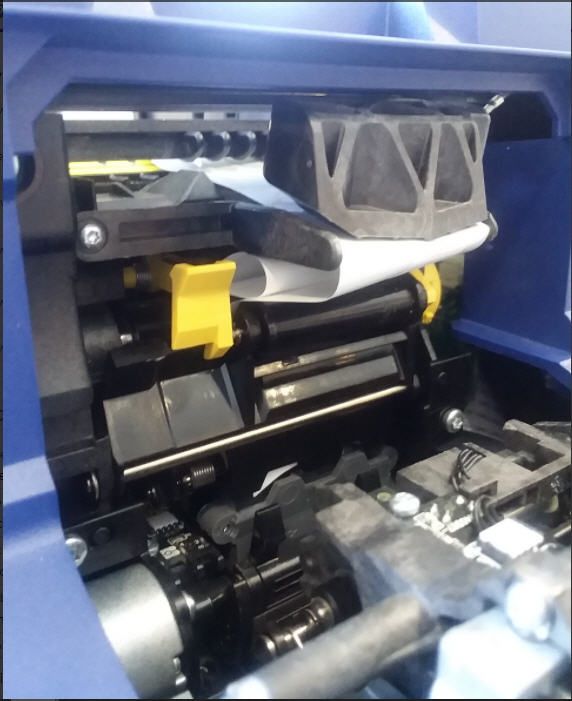

Labels jam or fold on the wrapper rather than adhering properly to the wire as shown in following picture. Labels may also wrap around the roller, causing further jams.




Troubleshooting

  1. Make sure the label supply is loaded correctly and is not wrapped around the rollers: A6200 - How to Load Ribbon and Labels.

Note: Make sure the label material is removed from the liner when loading the A6200 as shown at 0:57 mark in the video.



  1. Clean the printer: A6200 - Clean the Printer.
  • The printer rollers may be dirty or contaminated with adhesive. Labels may be stuck in the peeler area or to the rollers below the peel plate. Remove the stuck labels and any adhesive residue.
  • The tarp may be dirty or contaminated with adhesive.
  • One of the sensors may be dirty.

  1. On the touch screen, tap Load Supplies and then tap Clear Jam. Follow the instructions on the screen to clear the jam.

URL NameHow-to-Clean-and-Load-the-A6200-to-Prevent-Material-Jams
