Create a Padlock Label using Layouts in Custom Designer

Note: If you do not have layouts, download using these instructions: Brady Workstation - How to Download Layouts.

  1. Open the Custom Designer app in Brady Workstation.

  1. Select your Printer and Label Part.

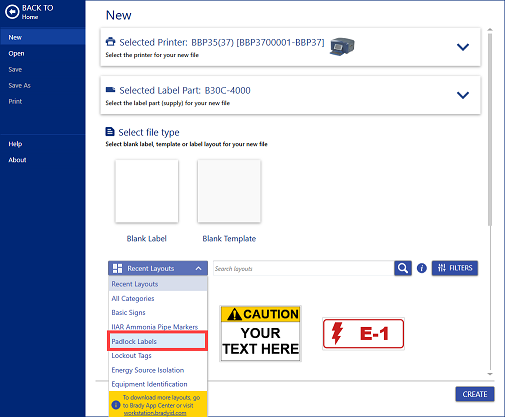

  1. Select the Padlock Labels layout in the dropdown.
Padlock Labels

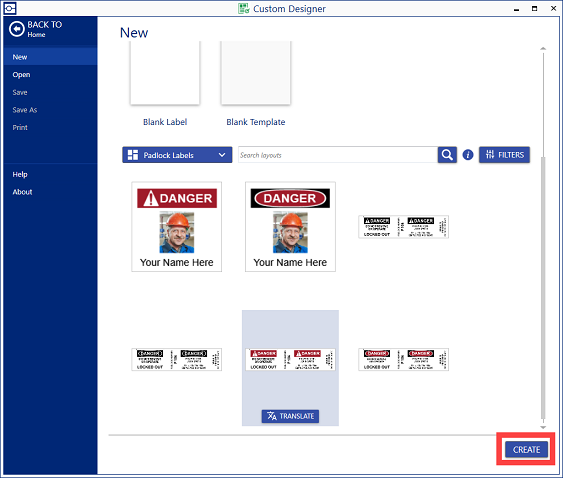

  1. Select the Padlock Label Layout in the list.

  1. Select Create.
Create Padlock

  1. Update text and adjust label properties as needed: Text Labels / Custom Designer - Applying Text Properties to Existing Labels.

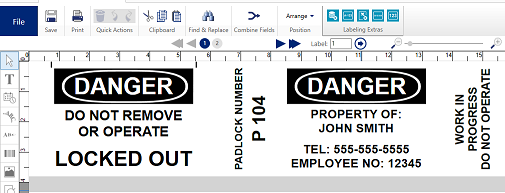

Padlock Label Example

Note: If you import data from an excel file or add a sequence, you will have to import it in place of an object/text on the label or add it below the label and drag it onto the label.  If the outline is red, you cannot import data in that spot. If the outline of the area is green, you are able to import data.

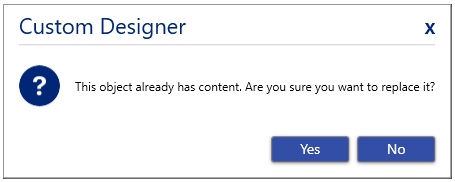

If you import data onto the label to replace an object/text, select Yes to replace the content already on the label.
Custom Designer popup for import data.png

  1.  Print the label.
