1. Create and/or open your file in the Brady Workstation GHS App.

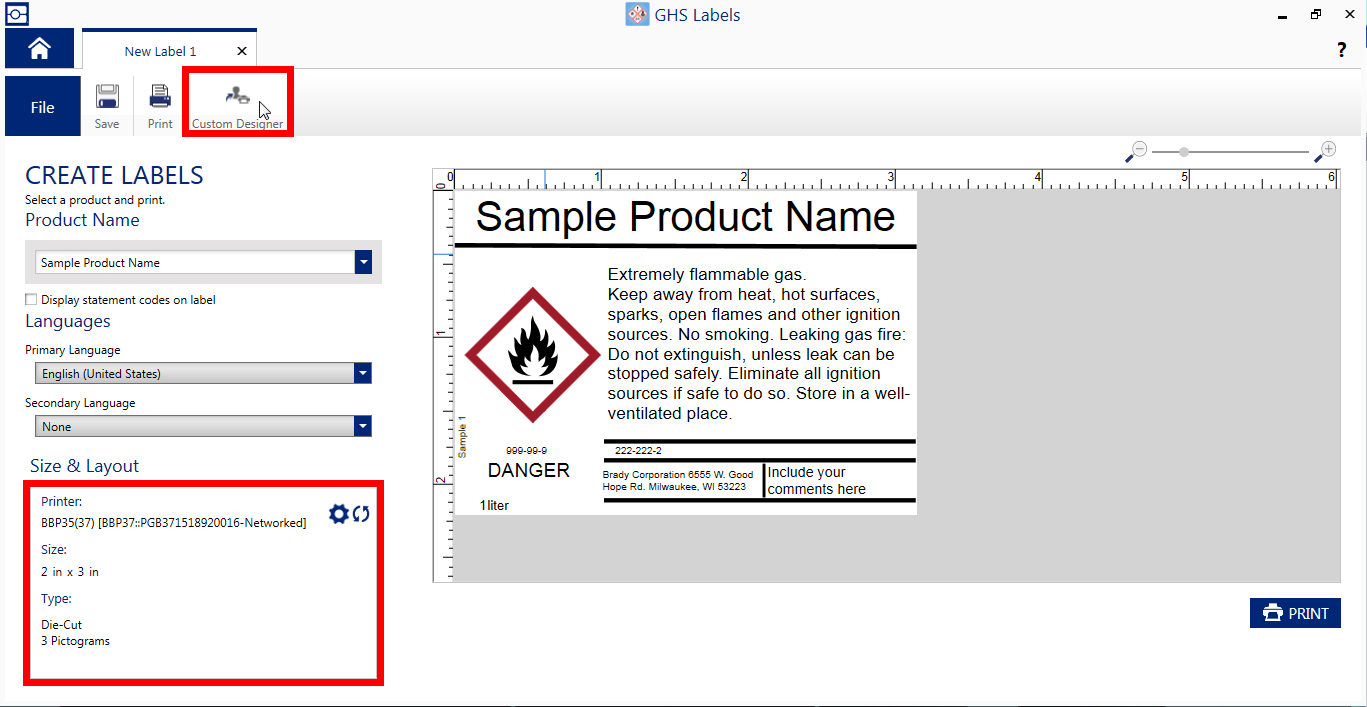

2. Ensure that you have the correct printer and label size selected (if you need to have different size labels for the same chemical, this process will need to be repeated for each size).

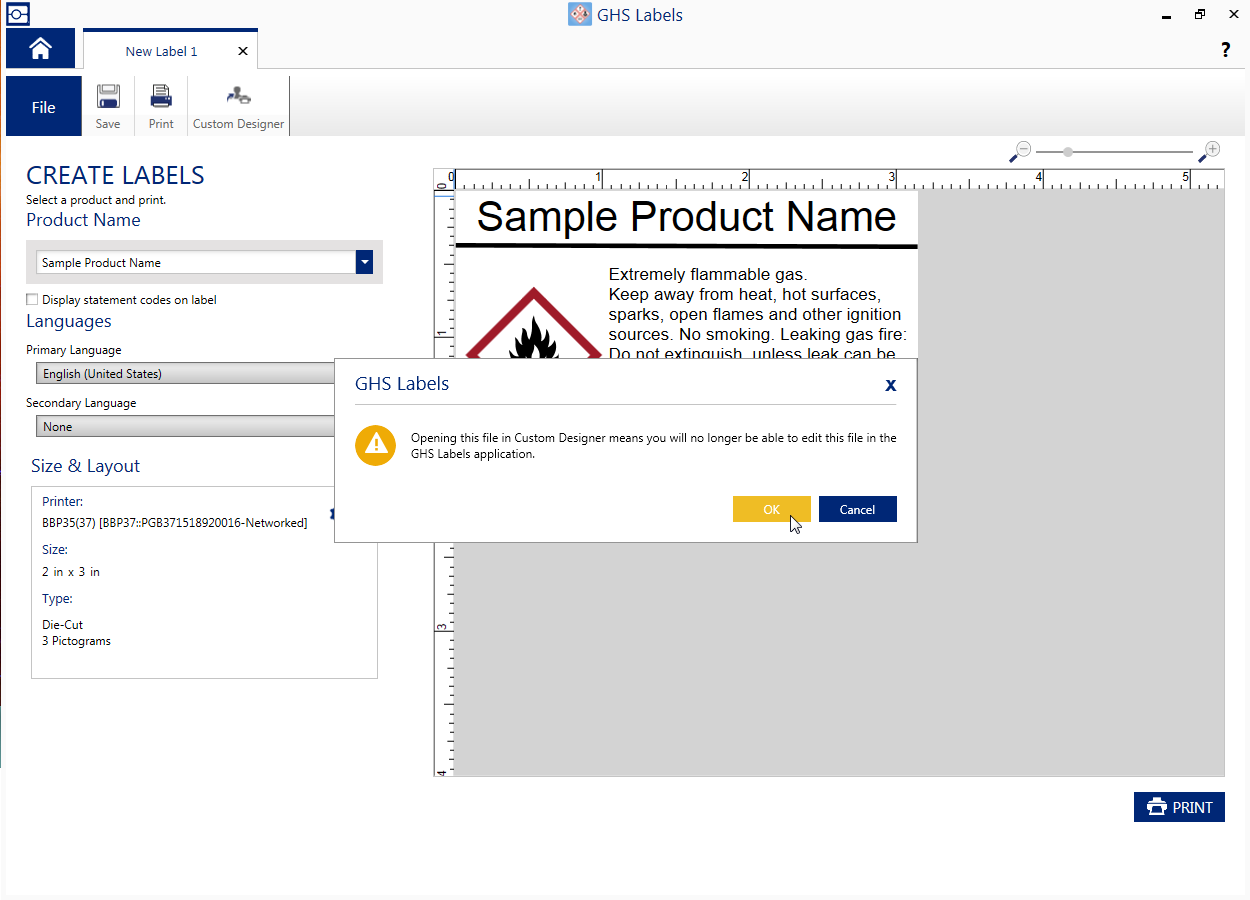

3. Select the “Custom Designer” button on the upper left to export the file. You will need to select OK to the message that warns once this is done the file cannot be edited within the GHS App.
Note: The original GHS file will not be overwritten, however edits you make in Custom Designer will not be reflected in the GHS app.

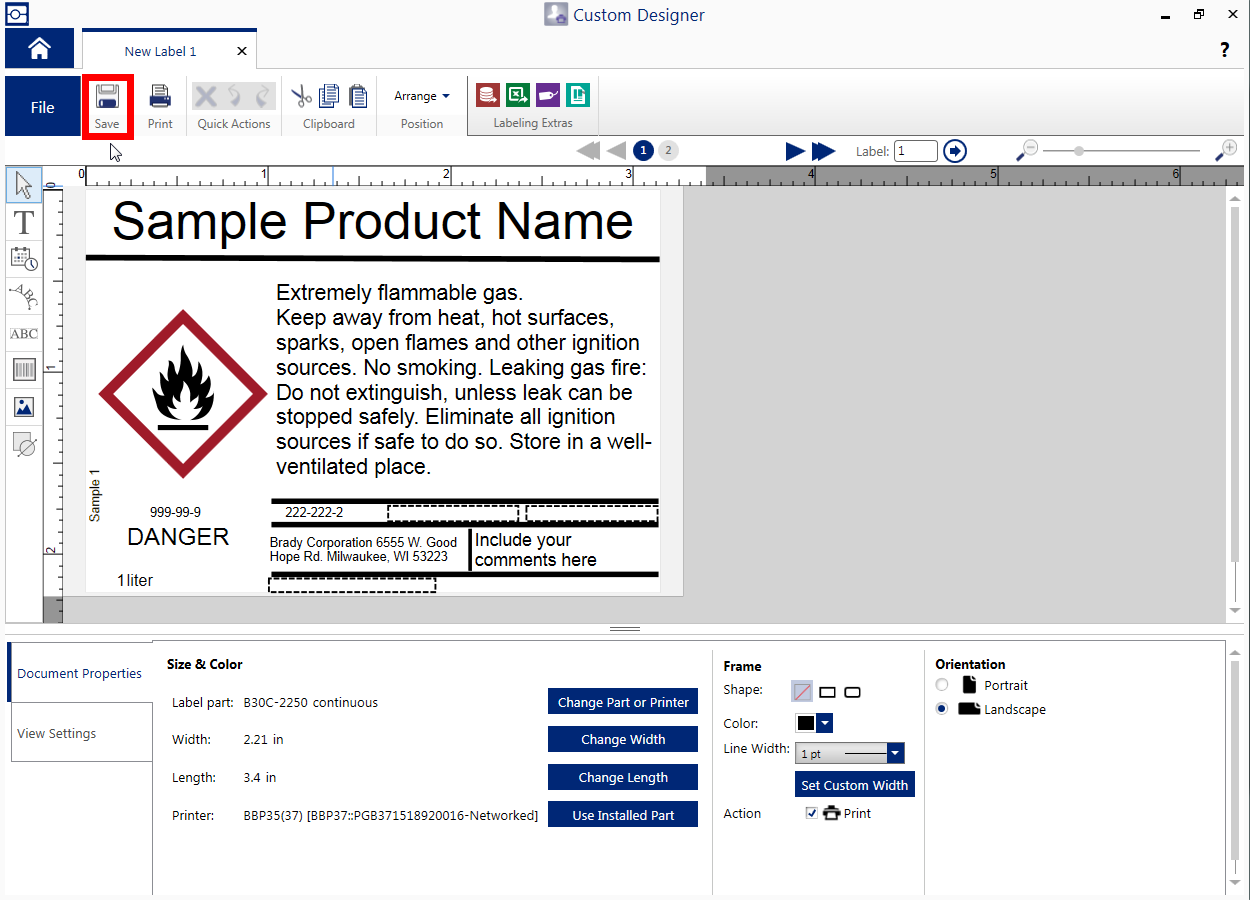

4. You can now edit the text font size, location, and other areas of the label if desired. Once complete, click the Save button.

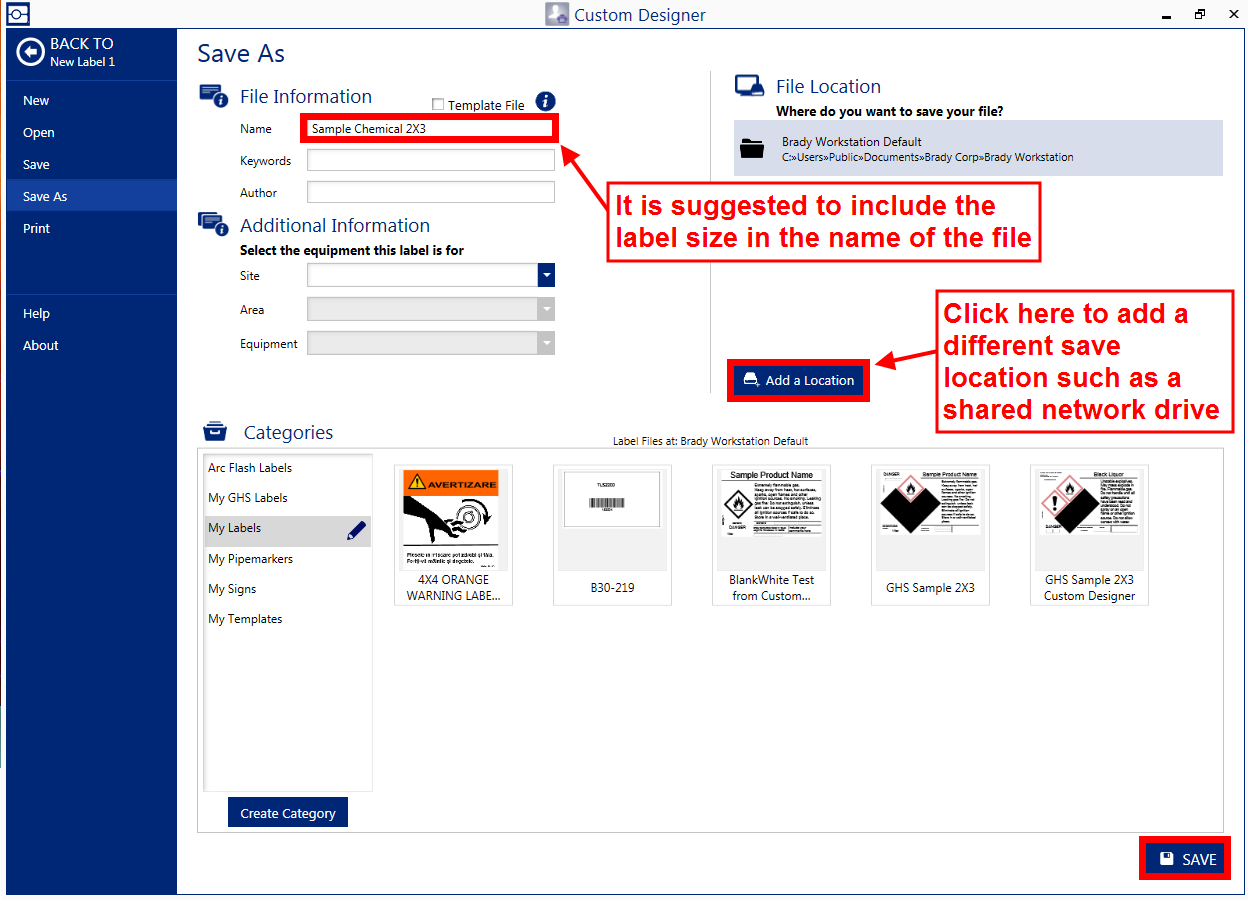

5. It is recommended to include the size of the label this file was configured for to avoid choosing the wrong size when printing in the future. You can also add a different save location such as a shared network drive from this screen as well. Once you have your name and location set, select save to complete.
6. There is no need for the GHS App unless the chemical needs to be saved or a different size or label configuration is needed.
