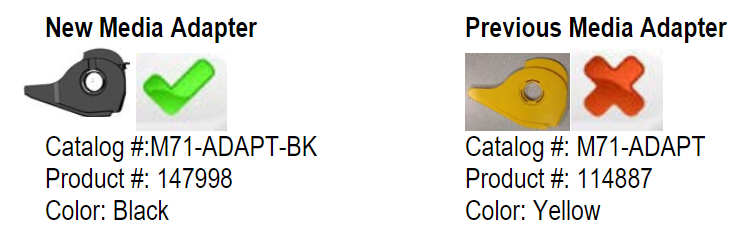

Body | Can TLS2200 and BMP61 Label Materials Be Used in a BMP71?Note: Using BMP61 and TLS2200 label rolls in the BMP71 requires firmware version 1.13 or newer - How to Upgrade the BMP71 Firmware  If you need replacement or additional adapters, they can be ordered. M71-ADAPT-BK comes as a set of three adapters. The file attached below provides pictures and instructions on how to use the adapter.

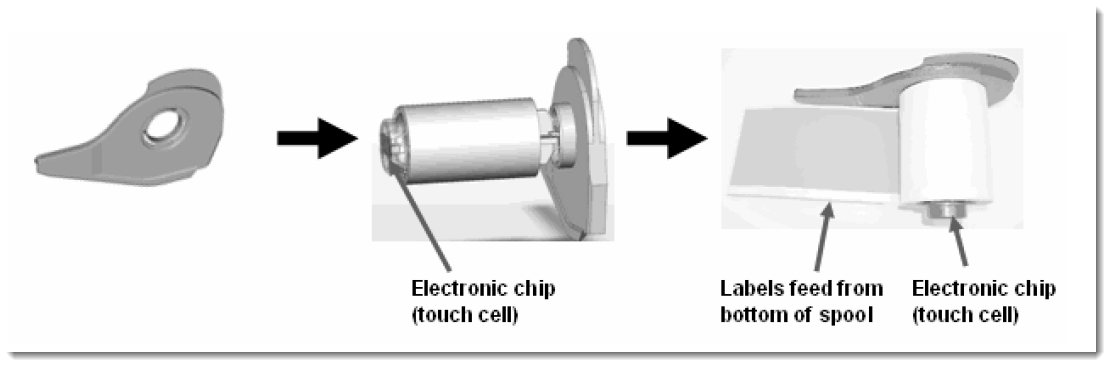

1. With the pointed end of the guide facing in the direction that the labels come off the bottom of the spool.2. position the hole of the adapter over the end of the spool, opposite the electronic chip (touch cell).3. Gently push the adapter onto the spool to snap it into place. 4. Place the TLS2000 or HandiMark label roll, with adapter attached, into the printer the same way you load BMP71 label material. Note: To accommodate different size label rolls, make sure that the label roll adapter is positioned in the correct slot in order to push the electronic chip up against the contacts. |
|
|---|
