Replacing the Cutter Blade Cover
If the printer is accidently dropped, the cutter blade cover may come lose or fall out. If the blade cover is not dented or damaged in some other way, you can easily re-insert the blade cover into the printer.
Caution: Blade is sharp and can cause injury.
To re-insert the cutter blade cover
- Grasp the blade cover from the top with the cut-out portion of the blade facing the display screen (away from the media well).

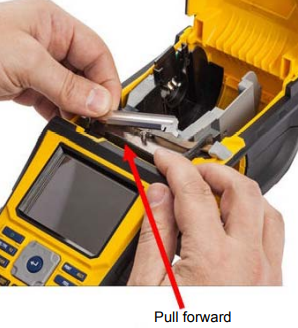

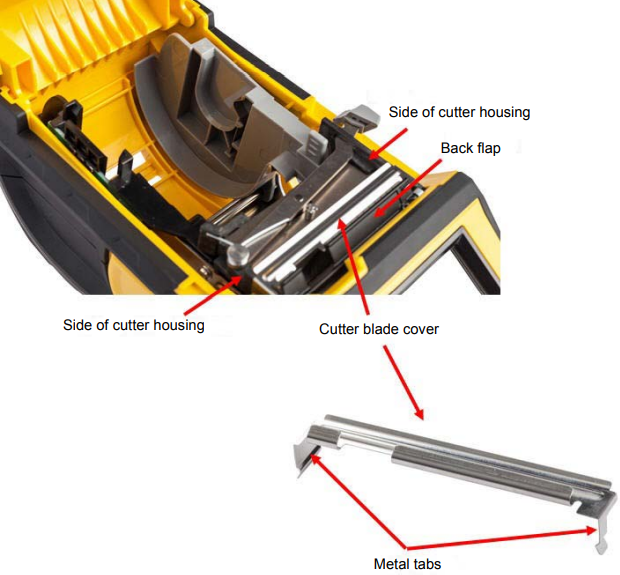

- Pull the black flap forward, then insert the blade tight up against the black flap with the metal tabs fitting over the outside of the cutter housing.
The blade snaps in easily.
- Press into place.
To remove the cutter blade cover
- From inside the medial well, slip your finger under the right side of the blade cover and gently pull up to unhook the blade cover.
The blade cover releases easily.
- Either replace the blade or clean it using a pre-moistened swab from the Brady Cleaning Kit PCK-6.
