BMP41 / M410 - Create a Wiremarker

« Go Back

Content


Article Number000010467
TitleBMP41 / M410 - Create a Wiremarker
Body


  1. Select Label Type.

  1. Use the navigational arrows to highlight Wire Marker.
If using continuous media, after you choose WireMarker, select the WireMarker size.


  1. Press Enter.

  1. Enter the wiremarker data.

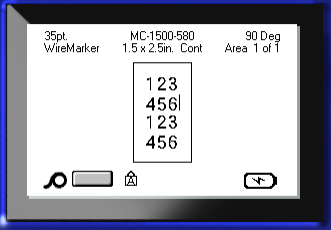

As you enter data, the data is repeated down the label. The font is set to Auto, but can be changed as desired.

If you press Enter to start a new line of text, a space opens below each line of repeated data and begins to repeat the next line of text as you enter it.
