A5500 / A6500 - Replace the Smart-Cell on the Label

Printable View
« Go Back

Content


Article Number000013171
TitleA5500 / A6500 - Replace the Smart-Cell on the Label
Body
Replace the Smart-Cell on the A5500 / A6500 Label Roll

  1. Remove the labels from the printer.

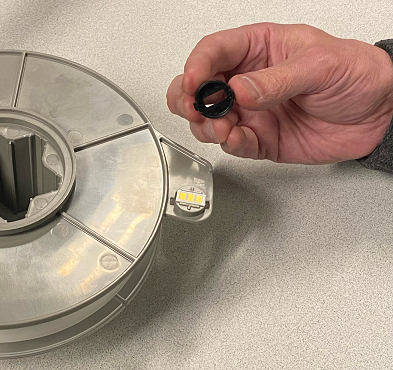

  1. Remove the smart-cell cap by pressing in on both sides.
Press sides of the smart-cell

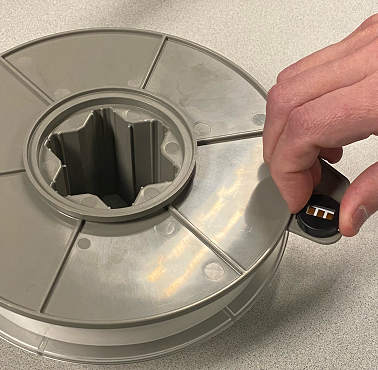

  1. Remove the smart-cell and place the new smart-cell in the middle.
Smart-cell

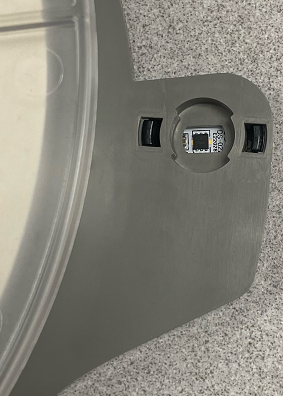

  1. Place the smart-cell cap on top and press it down so the tabs click into place.
Place smart-cell cap
smart-cell cap

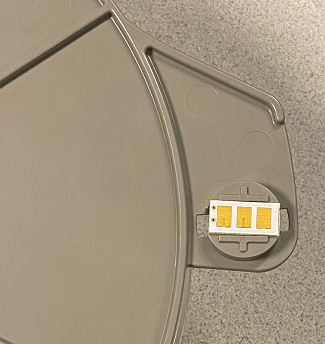

The back view of the smart-cell cap in place.
