A6500 - Adjust Feed to Wire

« Go Back

Content


Article Number000009303
TitleA6500 - Adjust Feed to Wire
Body

Adjust Feed to Wire



  1. Select Settings.
Settings

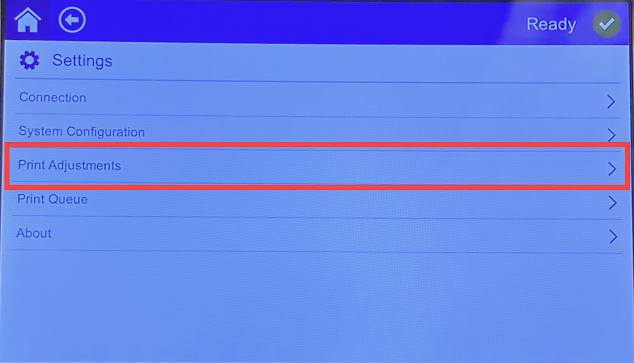

  1. Select Print Adjustments.
​​Settings_Print adjustment

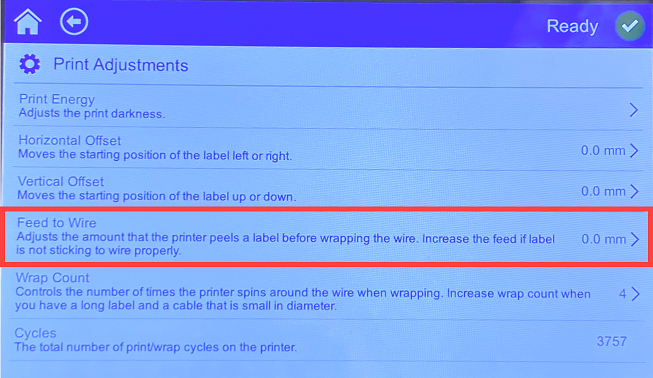

  1. Select Feed to Wire.

Print adjustments_Resized.png

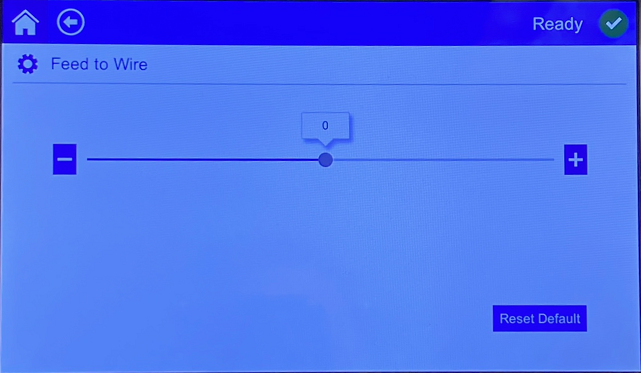

  1. Use the slider to adjust how much the printer peels the label before wrapping the wire.
The zero (middle) position on the slider represents the factory setting. Adjustments are relative to the factory setting. Setting this too high can cause labels to jam. If nothing comes out with the first label, but there are two labels that come out for the second label, the feed to wire is off and needs to be adjusted.

This is useful for braided wires because there is less contact for the labels to adhere to.

Smaller wires will require more adjustments to the Feed to Wire.

Feed to wire
