| Body | Printing without Wrapping (Print Only)On your computer:
- Design label on your computer using Brady Workstation software.
- Send your completed labels to the printer with the Print command.
On the printer:

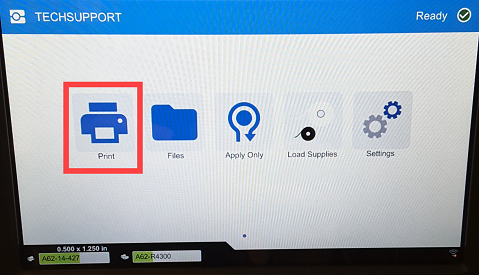

- Select Print on the home screen.

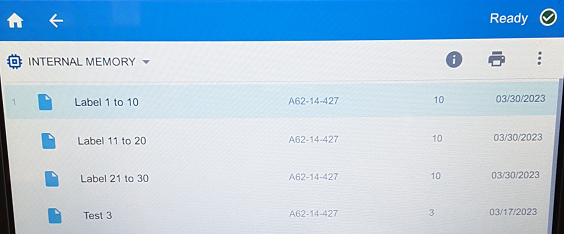

- Select the file.

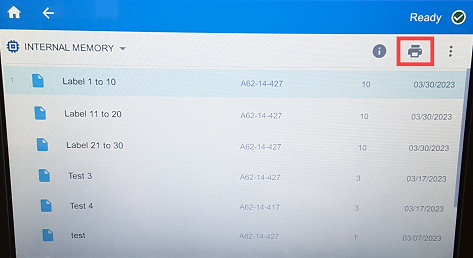

- Tap the printer icon.

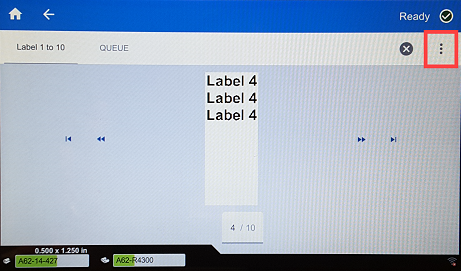

- Select the three dots.

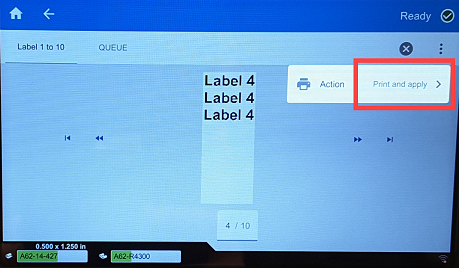

- Select the arrow next to Action.

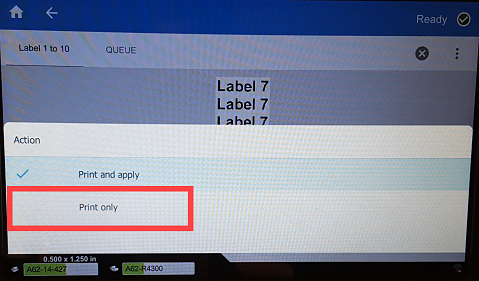

- Select Print only.

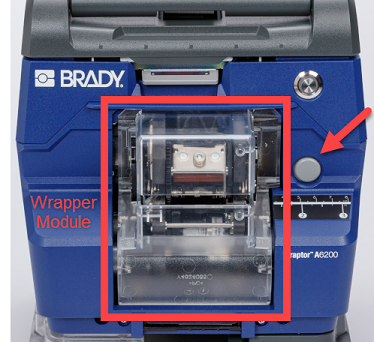

- Open the wrapper module by pushing in the gray circle button on the printer and pulling the wrapper module forward at the same time.

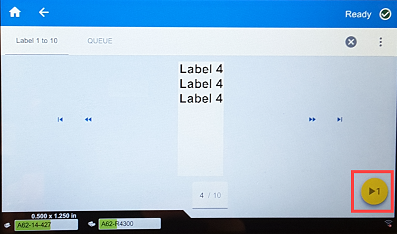

- Select the yellow circle on the LCD screen to print the label.
Wrap Without Printing (Apply Only)You can use the Wraptor A6200 printer to apply the labels to the wire or cables without printing.

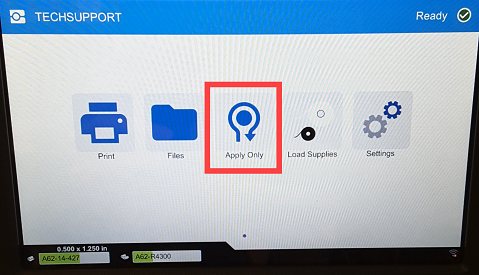

- Tap Apply Only on the home screen.

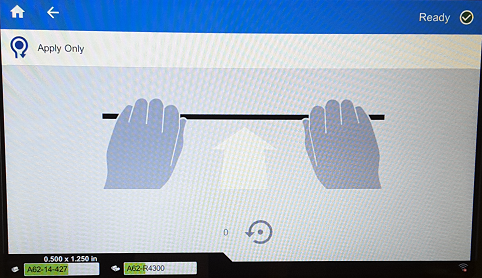

- Insert the wire into the printer jaws. The printer wraps the pre-printed label onto the wire and the counter increments.
