Titlei6100 - Adjust the Ribbon Supply Spindle to Ribbon Width
Body

The printer uses 1-4 inch wide ribbons and is set for 4-inch ribbon from the factory. Adjust the ribbon supply spindle according to the ribbon width.



Caution: Do not adjust the ribbon supply spindle while the printer is printing. The printer may be damaged.





3-4 Inch Ribbon

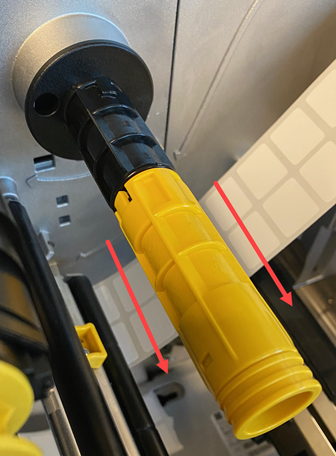

  1. Pull the spindle out which is the direction that is marked Up on the ribbon supply spindle.

  1. There will be a gap between the yellow and black part of the spindle.



1-2 Inch Ribbon

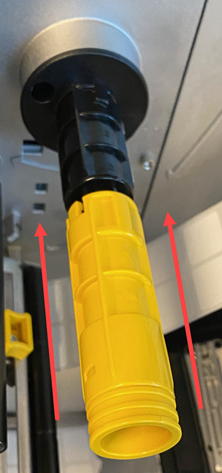

  1. Push the spindle in which matches the direction of Down on the ribbon supply spindle.

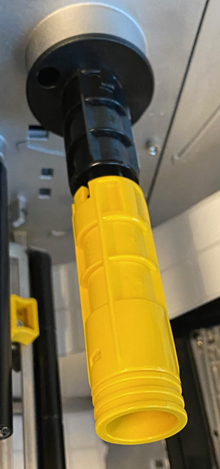

  1. There is not a gap between the yellow and black part of the spindle.
